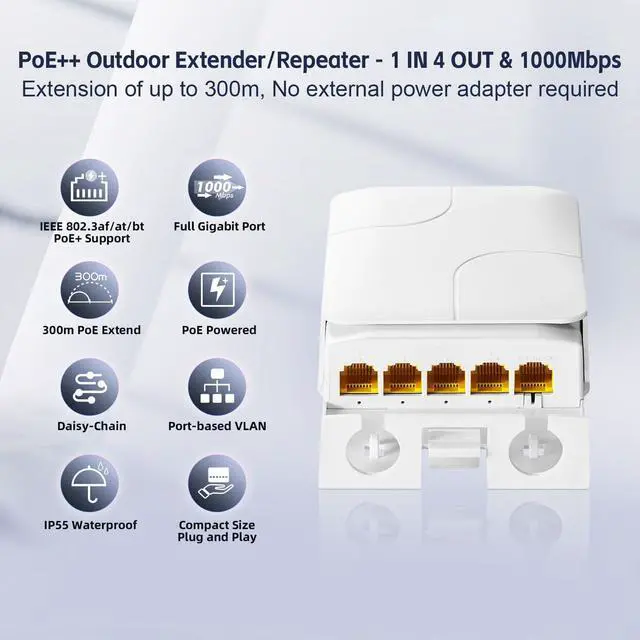

Outdoor 5 Port Gigabit PoE Extender, 1 in 4 Out PoE+ Repeater, 10/100/1000Mbps, IEEE 802.3 af/at/bt 90W, Wall Mount Waterproof YuLinca POE Passthrough Switch

5
Channel PoE Extender: This 5 port PoE extender includes 4 PoE out and 1 PoE in. It can provides PoE power to up to three PoE devices, 10/100/1000Mbps speed. Each PoE extender has an transmission distance of 100 meters (328ft).
Outdoor Weatherproof: Industrial-grade waterproof shell protection, which has better waterproof, dustproof, and snowproof effects, and is more suitable for outdoor use; also for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc

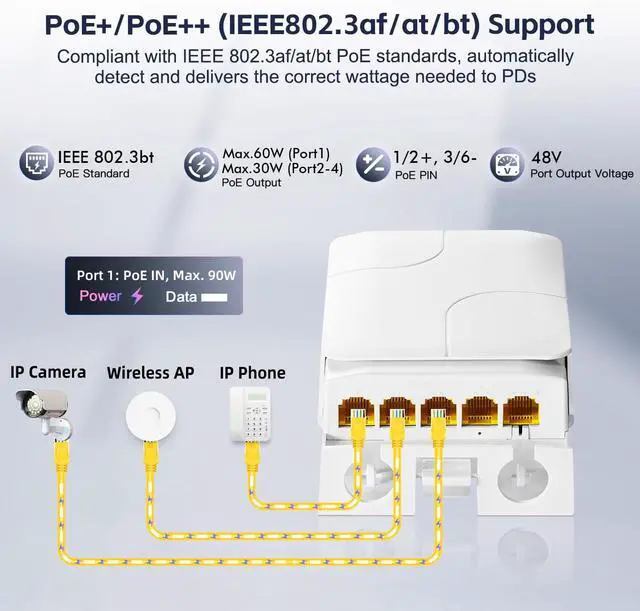

Compatible with IEEE 802.3 af/at/bt: This 5 port gigabit PoE extender works with standard IEEE 802.3 af/at POE switches. Input Port 1 IEEE 802.3 bt Max 90W, Output Port 2 IEEE 802.3 bt Max 60W, Output Port 3-5 IEEE 802.3 at Max 30W. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 4: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 3- 5: 1 /2 (+), 3/6 (-).
Unmanaged PoE Repeater: The gigabit passthrough PoE switch supports automatic detection of devices, no setup is required, no need for additional power adapter, powered by POE network, just need a network cable to expand PoE network, plug and play.

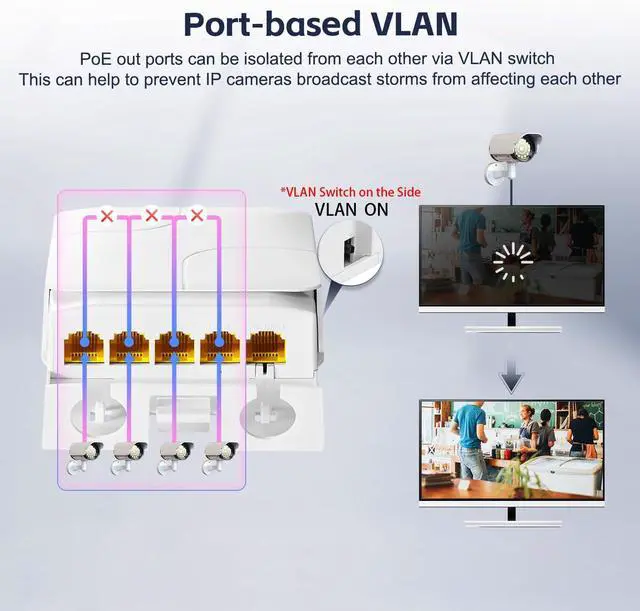

Widely Used: Mini size, support wall mount. The outdoor gigabit passthrough PoE booster supports vlan mode and extend 250 meter, Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost.
