TP-Link TL-PA7017KIT AV1000 Gigabit Ethernet 1000Mbps Nano Powerline Starter Kit

TP-Link TL-PA7017KIT AV1000 Gigabit Ethernet 1000Mbps Nano Powerline Starter Kit

MPN: TLPA7017KIT]

Type: Adapter

Color: White

Number of LAN Ports: 1

Brand: TP-LINK

Connectivity: Wired-Ethernet (RJ-45), Single Ethernet (RJ-45) Port

Model: TP-Link TL-PA7017 KIT

Maximum LAN Data Rate: 1000 Mbps

Country/Region of Manufacture: Vietnam

Maximum Powerline Data Rate: 1000 Mbps

Item Height: 1.1 Inch

Features: ADSL, For Gaming

Item Width: 2.6 Inch

Number of Powerline Adapters: 2

UPC: 845973089054

Ports: 2.5 mm Jack, Ethernet (RJ-45)

Item Length: 2.0 Inch

To Fit: PC, Audio Receivers

Product Key Features
Color: White
Connectivity: Wired-Ethernet (RJ-45), Single Ethernet (RJ-45) Port
Maximum LAN Data Rate: 1000 Mbps
Maximum Powerline Data Rate: 1000 Mbps
Features: ADSL, For Gaming
Number of Powerline Adapters: 2
Ports: 2.5 mm Jack, Ethernet (RJ-45)
To Fit: PC, Audio Receivers
Type: Adapter
Number of LAN Ports: 1

Dimensions
Weight: 0.88
Width: 5.500
Length: 7.600

Overview:

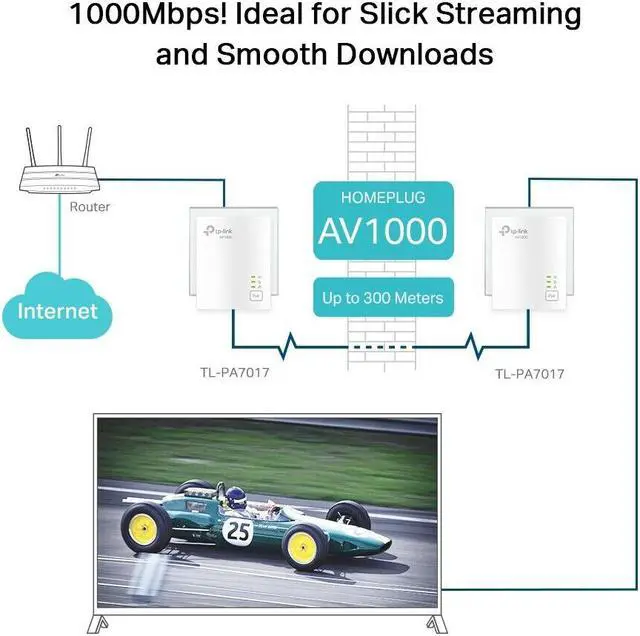

TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*^. Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures a stable and high-speed wired connection, providing data transmissions of up to 1000Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links. With a Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet with high speeds and ensure the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Features:
High-Speed Powerline Adapter: HomePlug AV2 standard provides high-speed data transfer rates of up to 1000Mbps, supporting all your online needs anywhere in your home. ***

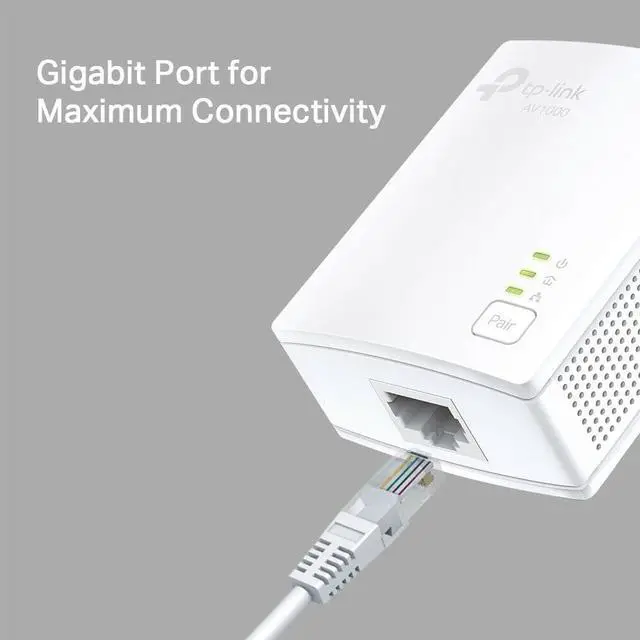

Gigabit Port: The gigabit port takes full advantage of your internet and provides a secure wired network you’re your desktop, smart TV or gaming console.
Ultimate Reliability: Connect your favorite device or console with a gigabit Ethernet cord for more reliable performance at higher speeds.

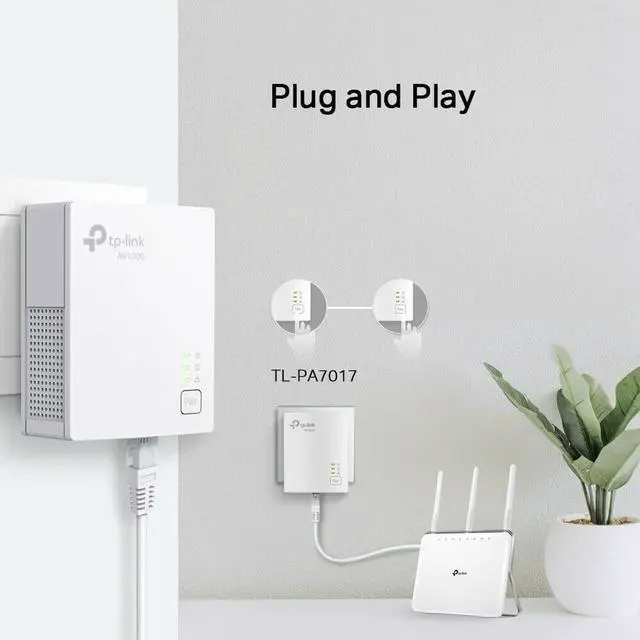

Plug. Pair. Play.: Set up your powerline in minutes, so you have more time enjoying a fast and reliable wired connection.
Power - Saving Mode: Automatic power-saving mode reduces power consumption by 85% when a device is not in use. ^

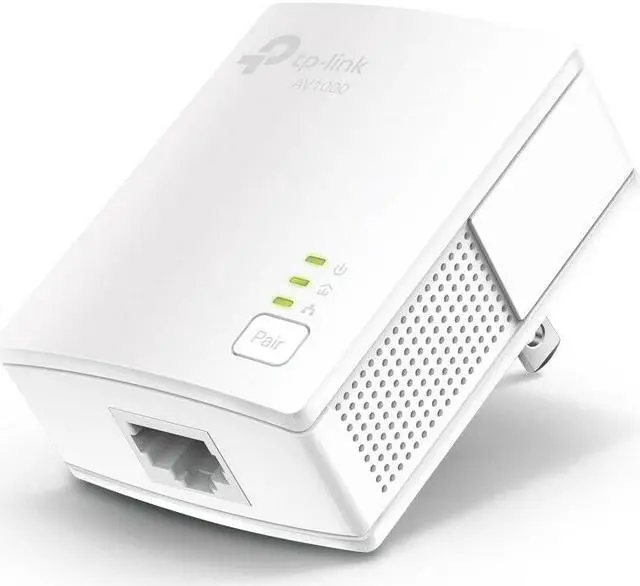

Modern Design: The sleek and modern powerline unit is small enough to fit in the palm of your hand and uses high-quality components.
Universally Compatible: Connect your powerline kit to any router, access point, or Ethernet switch to extend your network. *

Specification:
HARDWARE FEATURES
Plug Type: US
Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Interface: Gigabit Ethernet Port
Button: Pair/Reset button

Power Consumption
Maximum: 2.7W (220V/50Hz)
Typical: 2.3W (220V/50Hz)
Standby: 0.5W (220V/50Hz)

LED Indicator: PWR, PLC, ETH
Range: 300 Meters over electrical circuit
Dimensions (W x D x H): 2.6*2.0*1.1 in (65*52*28.5mm)

SOFTWARE FEATURES
Modulation Technology: OFDM (PLC)
Encryption:Powerline Security: 128-bit AES
OTHERS
Certification: RoHS

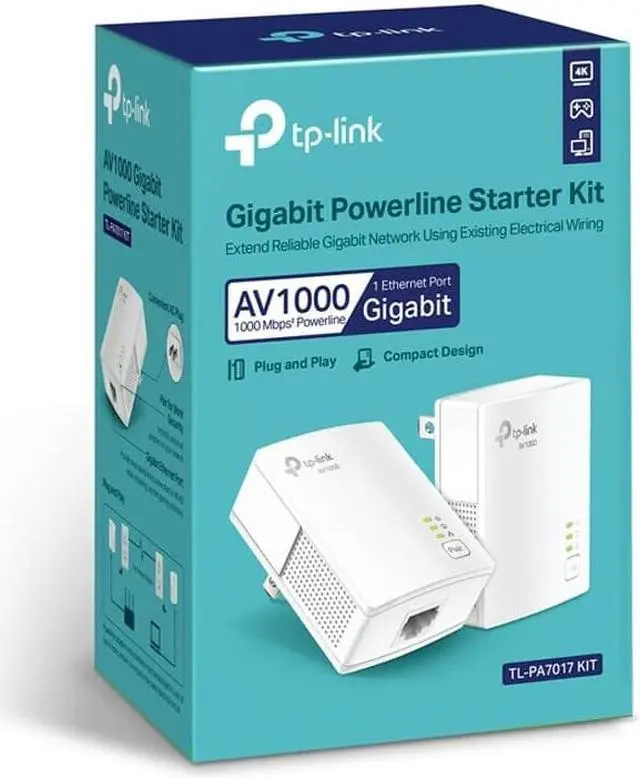

Package Contents
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux

Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
