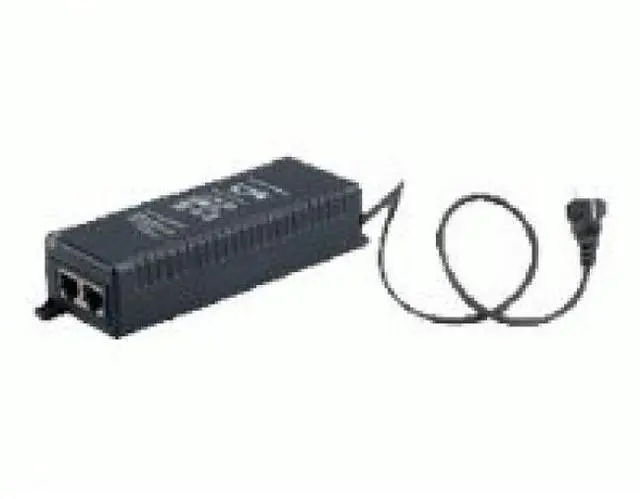

PD-9001GR - Single-port Gigabit PoE Midspan, 802.3 at Compliant
Microsemi's PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11 n Access Points, pan-tilt-zoom (PTZ) cameras and video-phones. It complies to IEEE 802.3 at PoE standard and is backward compatible to. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11 n access -9001GR Features* IEEE 802.3 at compliant with 2-event classification* IEEE 802.3 af backward compatible* Output power of 30W is guaranteed* Supports 10/100/1000Base-T applications* Compatible with IEEE 802.3 af devices*
Safe: low power devices receive only the power they need* Automatic Detection and Protection of non-standard Ethernet terminals* Compact design fits easily in WLAN Access Point and* IP
Cameras installations Product Type: PoE Injector
Product Type: PoE
Injector Compatibility: Access Points Pan-Tiltzoom (PTZ) Cameras Video-Phones
Network Devices Input Voltage: 230 V AC
Input Voltage: 120 V AC
Manufacturer Part Number: PD-9001GR/AT/AC
Limited Warranty: 1 Year
Weight (Approximate): 7.04 oz
Network Technology: 10/100/1000Base-T
Certifications & Standards: CE FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI UL/cUL Per IEC 60950-1 IEEE 802.3 at IEEE 802.3 af
Length: 5.5
Manufacturer: Microsemi Corporation
Product Model: PD-9001GR
Product Name: Single Port, High Power Gigabit Midspan, 802.3 at Compliant
Brand Name: Microsemi
Output Ports: 1
Brand Name: Microsemi
Input Ports: 1 10/100/1000Base-T
Output Ports: 1 10/100/1000Base-T
Height: 1.3
Width: 2.1
Environmentally Friendly: Yes
Environmental Certification: GS
Environmental Certification: RoHS
Environmental Certification: WEEE Maximum
Output Power: 30 W Maximum
Output Voltage: 55 V DC
