Wi-Fi technology
Supports Wi-Fi 7 technology and provides Tri-band support. 2.4GHz(574Mbps) for the long range, 5GHz(2400Mbps) for the high speed, 6GHz(5800Mbps) for the higher speed, Interference free and Ultra-low Latency.
Updated Bluetooth 5.4
Based on Bluetooth 5.3, it has larger capacity, higher speed, extremely low latency and stronger battery life.
WPA4 Network Security
Supports the latest WPA4 WiFi security protocol and is backward compatible with WPA3.
Installation requirements

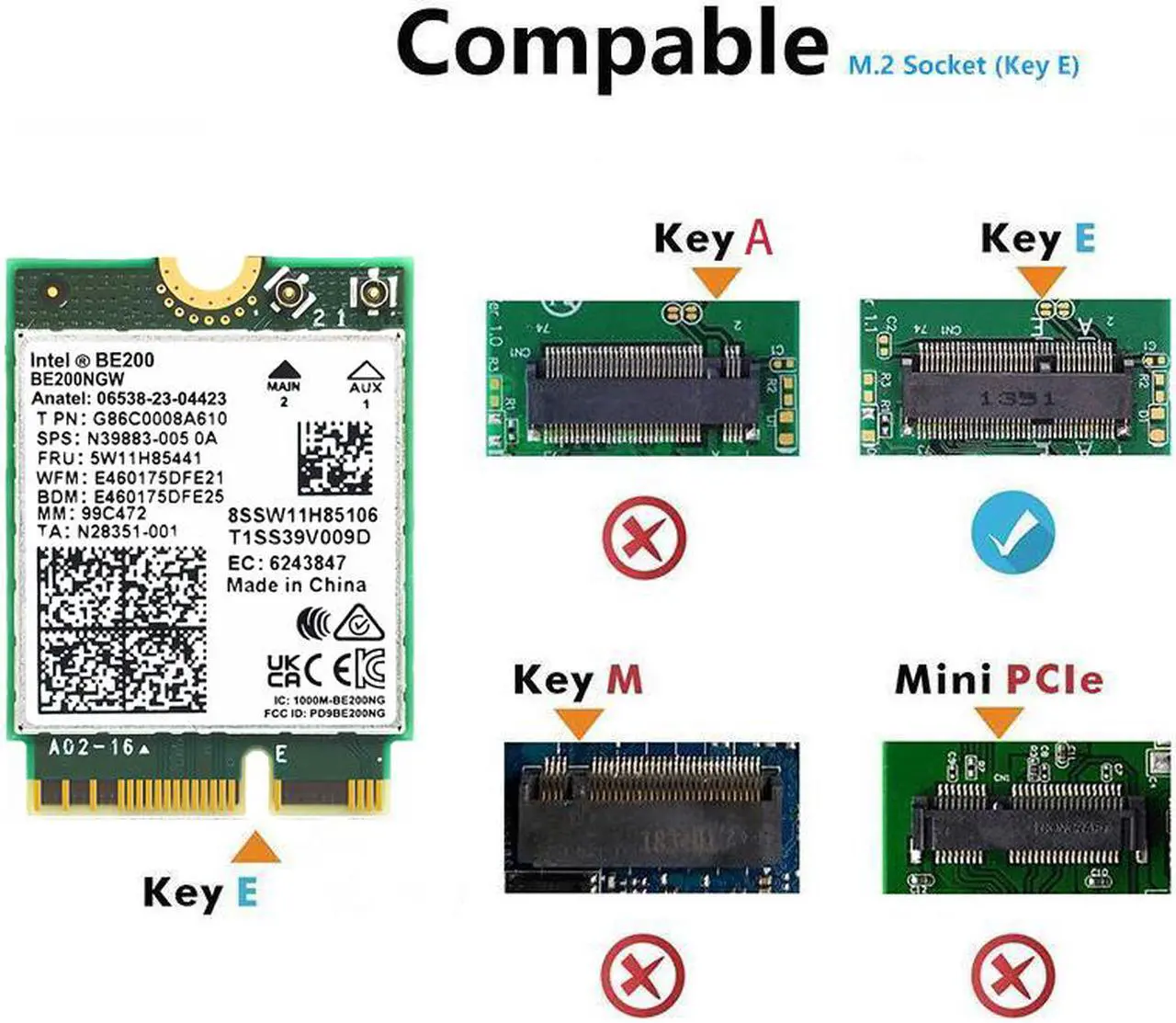

Suitable for motherboards with Intel CPUs and M2 network slots, size NGFF M2 2230 E key.
System compatibility and accessories
Support Windows10/11 64 bit/Linux, Not Support AMD. you need to install the wifi and Bluetooth drivers from the intel website. Accessories include Ipex Cable, 8dBi Antennas and Brackets.

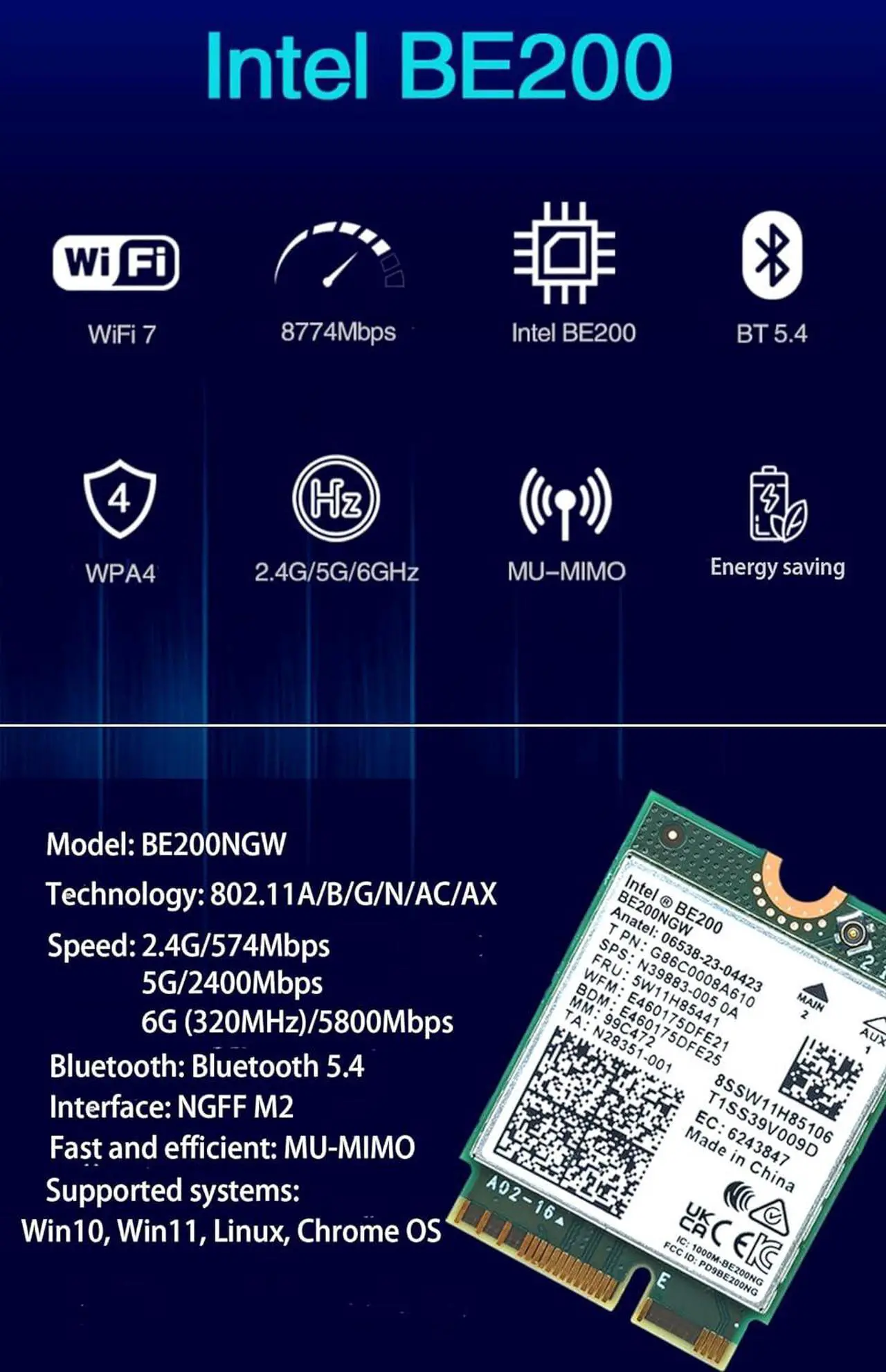

Model: BE200NGW
Wireless Technology: 802.11A/B/G/N/AC/AX/BE
Wireless Speed: 2.4G/574Mbps, 5G/2400Mbps, 6G(320MHz)/5800Mbps
Bluetooth: Bluetooth 5.4
Interface: NGFF M2
Fast and efficient: MU-MIMO
Supported systems: Win10, Win11, Linux, Chrome OS
8dBi High Gain Antenna
High Gain Antenna Covers Wide Coverage
20cm 8dbi high gain antenna
Antenna 360 degree direction adjustable, better signal strength
MHF4(IPEX4) to SMA 30cm
Gold Plated SMA, higher reliability and more stable signal

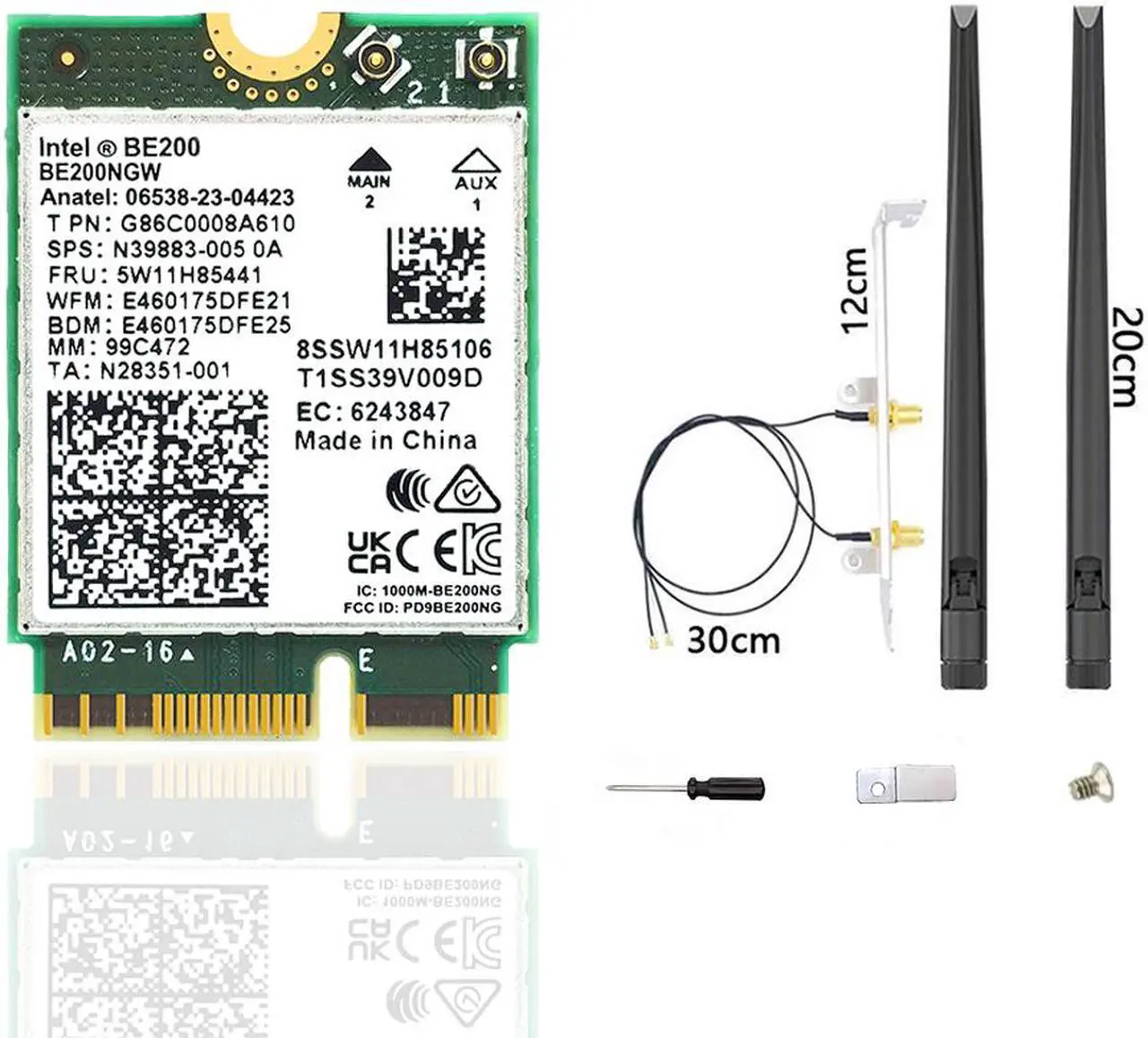

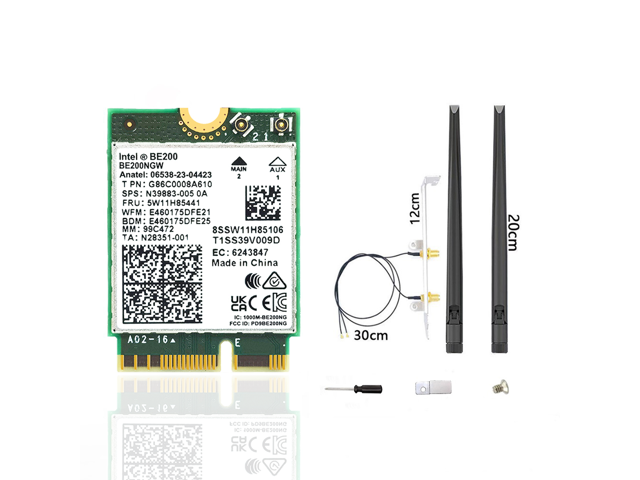

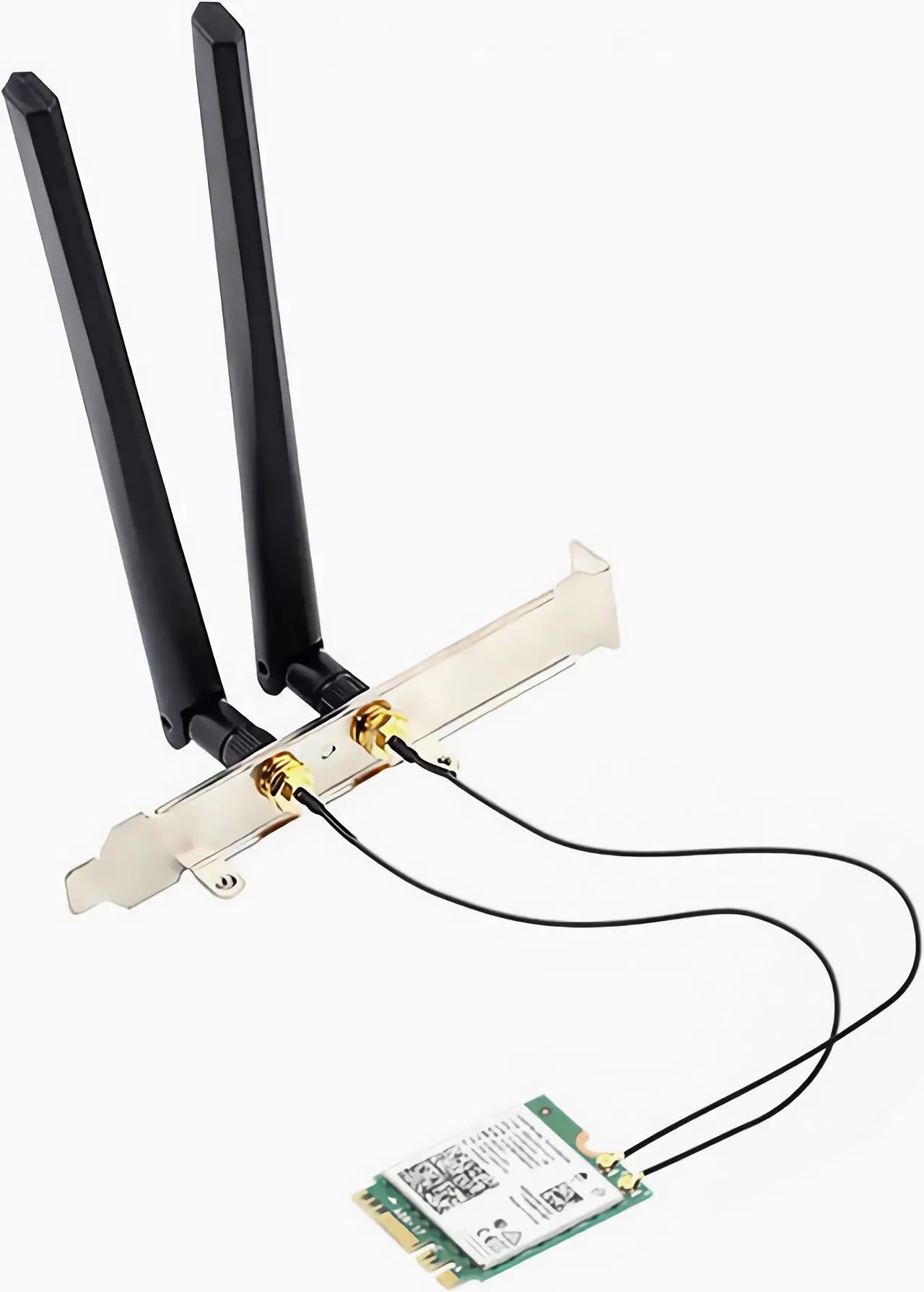

Kit includes Wi-Fi 7 BE200NGW, 2 * 8dbi antenna, cables and bracket, screw drive.
