 RTL8125B-2.5G-1T-X1 |  X520-10G-1S-X8 |  X520-10G-2S-X8 |  X550-10G-1T-X4 |  X550-10G-2T-X4 |  X540-10G-2T-X8 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |

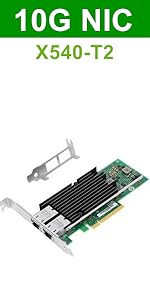

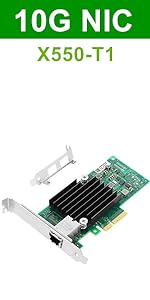

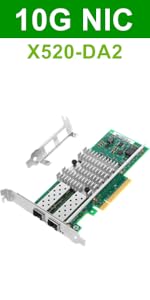

| Controller | Realtek RTL8125B | Intel 82599EN | Intel 82599ES | Intel ELX550AT | Intel ELX550AT2 | Intel X540AT2 |
| Port Configure | RJ45(x1) | SFP+(x1) | SFP+(x2) | RJ45(x1) | RJ45(x2) | RJ45(x2) |
| Data Rate / Port | 10M/100M/1000M/2.5GbE/s | 10 GbE/1 GbE/s | 10 GbE/1 GbE/s | 10 GbE/5 GbE/2.5/1 GbE/s | 10 GbE/5 GbE/2.5/1 GbE/s | 10 GbE/1000M/100M/s |
| PCle | PCIE x 1 | PCIe 2.0 X8 | PCIe 2.0 X8 | PCIe 3.0 X4 | PCIe 3.0 X4 | PCIe 2.1 X8 |
| Jumbo Frames | Yes | Yes | Yes | Yes | Yes | Yes |
| PXE | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Systems | Windows ME/98SE/2000/XP, Win7 / Win8 / Win10 / Vista / Sever 2003/2008 / 2012 /2016/ Linux / DOS/MAC OS | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7; SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7; SLSE 11/12 |
| Un-supported | ESXI 7.0 | QNAP QSA-308-Series Switch; Mac OS, Bypass Mode | QNAP QSA-308-Series Switch; Mac OS, Bypass Mode | Mac OS | Mac OS | Mac OS |

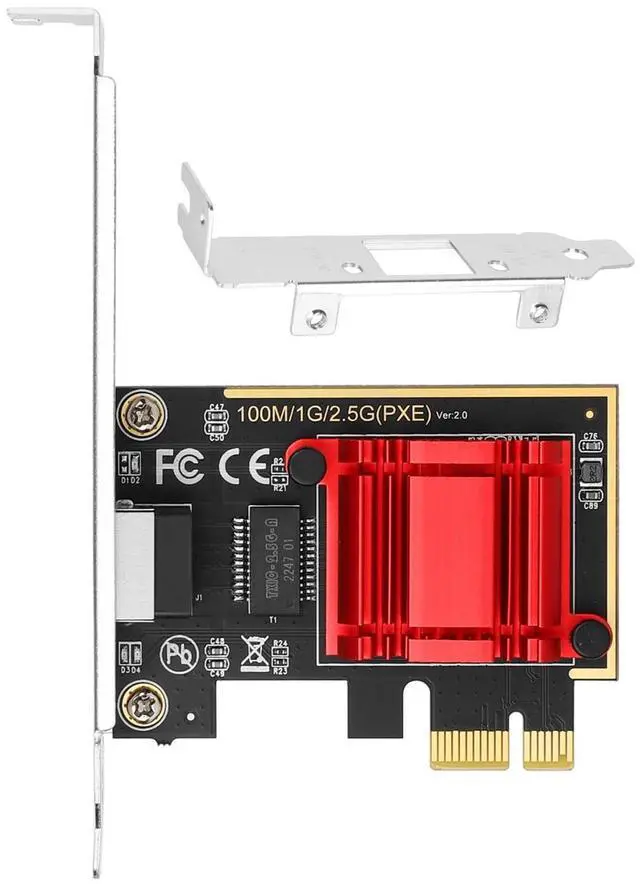

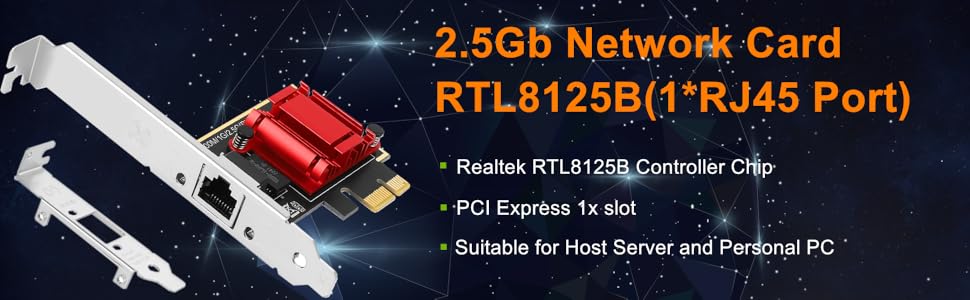

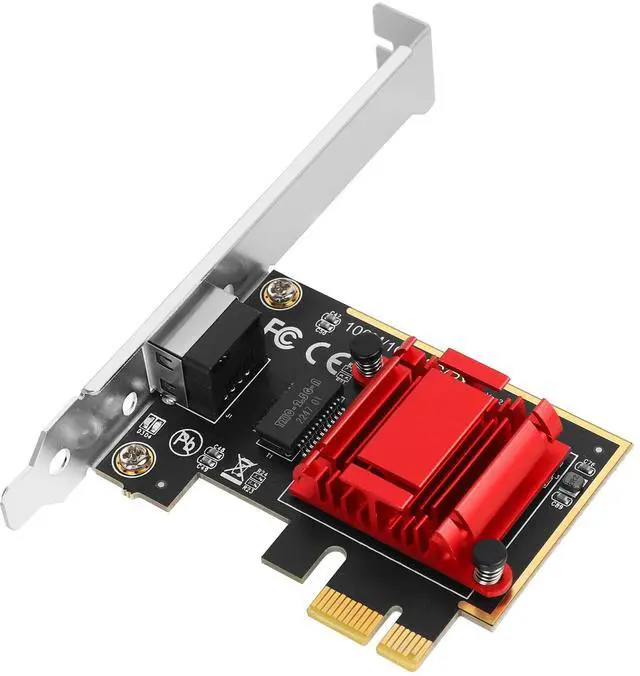

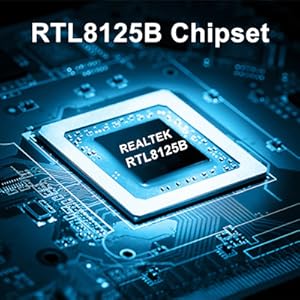

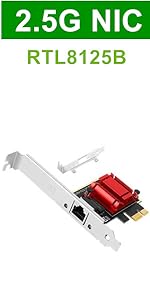

RTL8125B Chipset
Equipped with original Realtek RTL8125B Chip which supports WOL, PXE, DPDK, VLAN, Jumbo Frame to 16K byte.

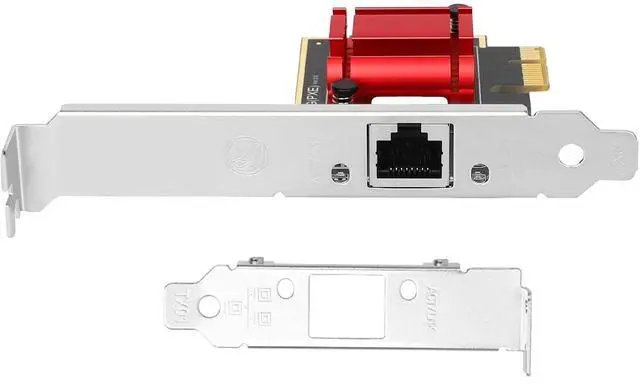

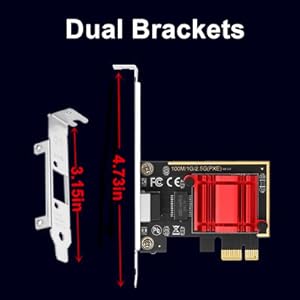

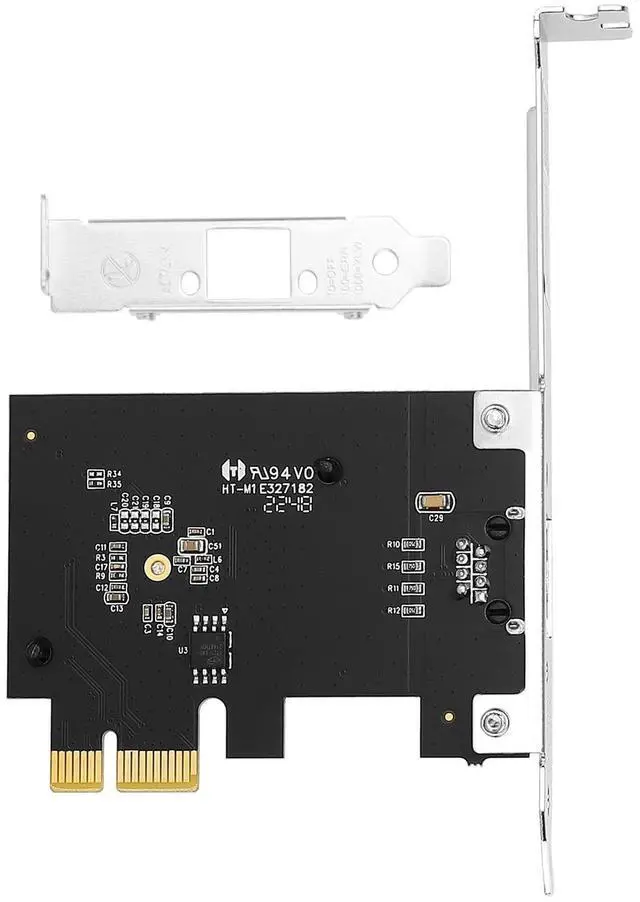

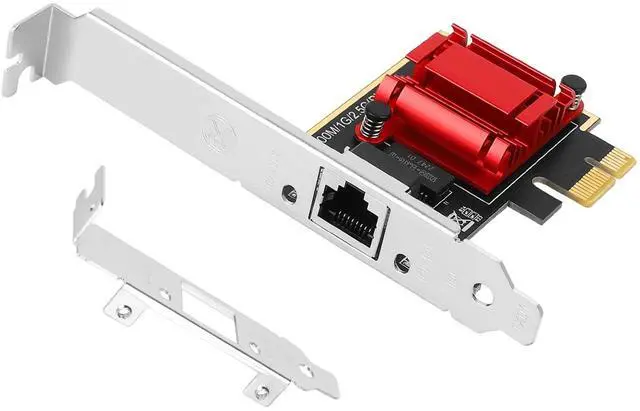

Dual Brackets
With standard and low-profile brackets in the package, this adapter is Suitable for most computer case installations.
Wake-On-LAN
Support Wake-On-LAN and RealWow Technology (remote wake-up), remotely power on/off your computer with WOL, good for centralized management.

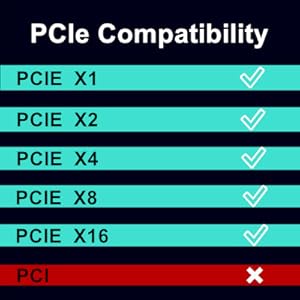

PCIe Compatibility
Compatible with PCIe X1/X2/X4/X8/X16.
Not Compatible with PCI.

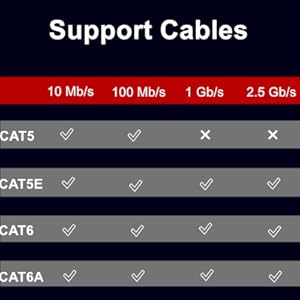

Support Cables
Theoretical maximum speed using different Ethernet cables,2.5GBASE-T specification(802.3bz) supports 2.5Gbps speeds over standard Cat5e(or Higher) cables at distances up to 100m(328 ft.)
16K Jumbo Frame
802.1Q VLAN Compatible with IEEE 802.1Q tagged-based VLAN support.
Swipe to learn more...
VOGZONE is a one-stop-shop for data center that provides you with high-quality products, high-speed communication network solutions.
With a proven heritage of stability, performance, and value, VOGZONE has curated a portfolio of products that meet the networking needs of all individuals.
Now, as the connected lifestyle continues to evolve, the company is expanding today to exceed the demands of tomorrow.

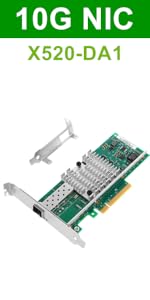

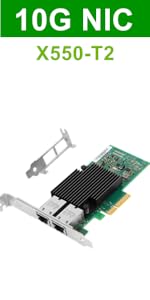

10GbE Network Card
25GbE Networ Card
More Choice for NIC
More Choice for your Network
Main Business
Network Cards(NIC)
Direct Attach Twinax Cables (DAC Cable)
Fiber Optic Transceivers
Active Optical Cables (AOC Cable)
Fiber Optic Cables and More
PROFESSIONAL TESTING PROCESS
All the products of vogzone are tested based on real application scenarios in our lab. Every item is tested by a skilled technician before shipment.
PROVEN QUALITY
Vogzone products are backed by international certifications such as ISO, ROHS, CE, FCC, and more.
 RTL8125B-2.5G-1T-X1 | X520-10G-1S-X8 | X520-10G-2S-X8 | X550-10G-1T-X4 | X550-10G-2T-X4 | X540-10G-2T-X8 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Controller | Realtek RTL8125B | Intel 82599EN | Intel 82599ES | Intel ELX550AT | Intel ELX550AT2 | Intel X540AT2 |
| Port Configure | RJ45(x1) | SFP+(x1) | SFP+(x2) | RJ45(x1) | RJ45(x2) | RJ45(x2) |
| Data Rate / Port | 10M/100M/1000M/2.5GbE/s | 10 GbE/1 GbE/s | 10 GbE/1 GbE/s | 10 GbE/5 GbE/2.5/1 GbE/s | 10 GbE/5 GbE/2.5/1 GbE/s | 10 GbE/1000M/100M/s |
| PCle | PCIE x 1 | PCIe 2.0 X8 | PCIe 2.0 X8 | PCIe 3.0 X4 | PCIe 3.0 X4 | PCIe 2.1 X8 |
| Jumbo Frames | Yes | Yes | Yes | Yes | Yes | Yes |
| PXE | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Systems | Windows ME/98SE/2000/XP, Win7 / Win8 / Win10 / Vista / Sever 2003/2008 / 2012 /2016/ Linux / DOS/MAC OS | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7; SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 | Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7; SLSE 11/12 |
| Un-supported | ESXI 7.0 | QNAP QSA-308-Series Switch; Mac OS, Bypass Mode | QNAP QSA-308-Series Switch; Mac OS, Bypass Mode | Mac OS | Mac OS | Mac OS |
| LED Indicator | 100M/1G/2.5G Link/Act |
| Standard | IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3az?IEEE 802.3bz |
| Network media | 10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP |
| Support OS | Windows 10(32/64), Win7 (32/64), Win8,8.1 (32/64), Windows Server,2012,2008, Linux, MAC OS 10.7 (and Above) |
| Supports | IEEE 802.1P Layer 2 Priority Encoding;IEEE 802.1Q VLAN tagging;IEEE802.3az(Energy Efficient Ethernet);IEEE802.3bz(2.5GBASE-T);Full Duplex flow control(IEEE 802 .3x) |
RTL8125B Chipset
Equipped with original Realtek RTL8125B Chip which supports WOL, PXE, DPDK, VLAN, Jumbo Frame to 16K byte.
Dual Brackets
With standard and low-profile brackets in the package, this adapter is Suitable for most computer case installations.
Wake-On-LAN
Support Wake-On-LAN and RealWow Technology (remote wake-up), remotely power on/off your computer with WOL, good for centralized management.
PCIe Compatibility
Compatible with PCIe X1/X2/X4/X8/X16.
Not Compatible with PCI.
Support Cables
Theoretical maximum speed using different Ethernet cables,2.5GBASE-T specification(802.3bz) supports 2.5Gbps speeds over standard Cat5e(or Higher) cables at distances up to 100m(328 ft.)
16K Jumbo Frame
802.1Q VLAN Compatible with IEEE 802.1Q tagged-based VLAN support.
