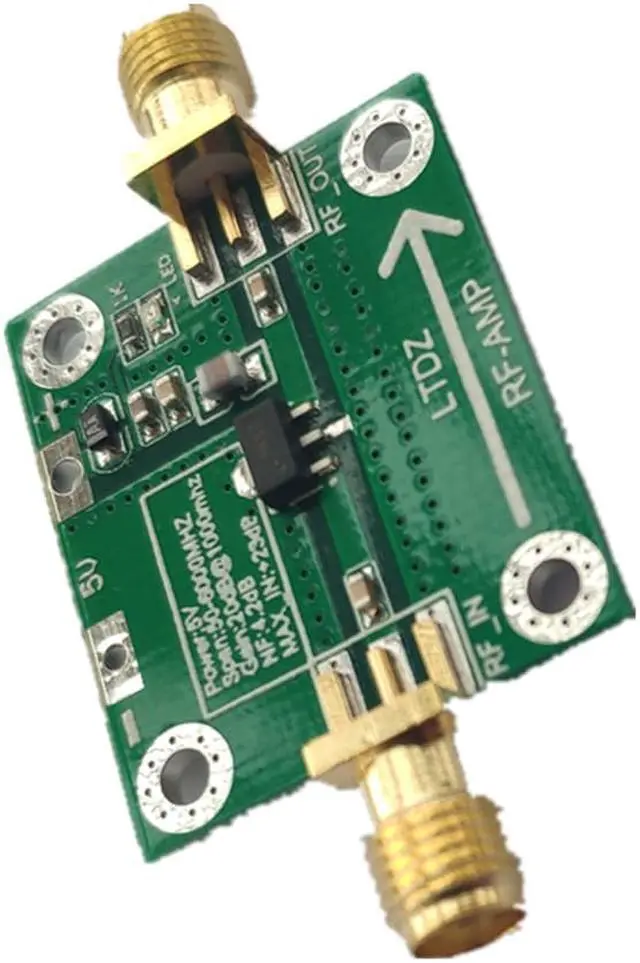

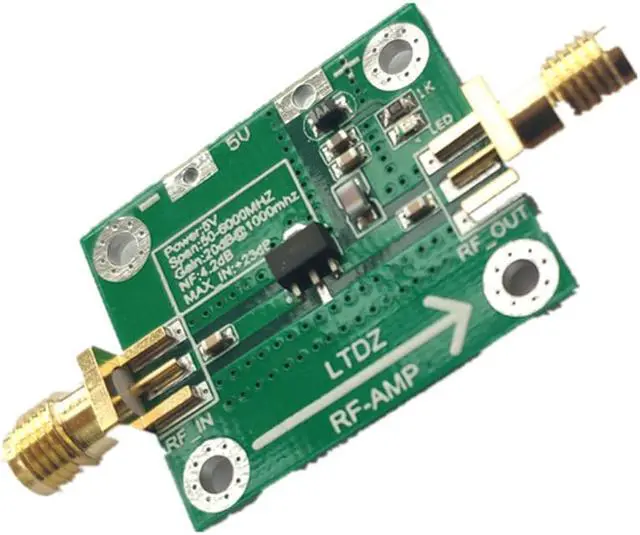

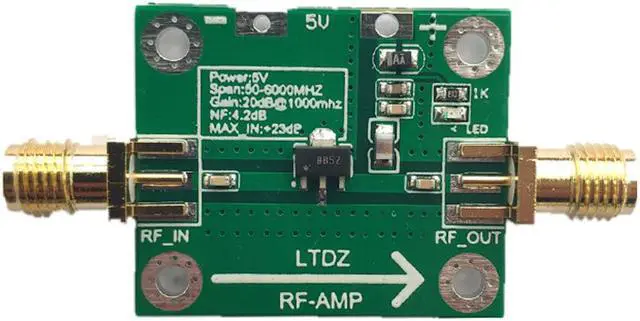

RF Power Amplifier Board Transmitter Circuit Board Amplifier Module 20dB Gain 50M-6000MHz SBB5089
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Material: PCB
Main color: greenWorking
voltage: 5VFrequency
range: 50MHz-6000MHzTypical
gain: 20dB
@ 1000MHzNF: 4.2
dBP1dB: + 20.4 dBIP 3: 38 dBmMaximum input power: +23dBInput
impedance: 50
ohmsModule related applications: weak RF signal amplifier, RF

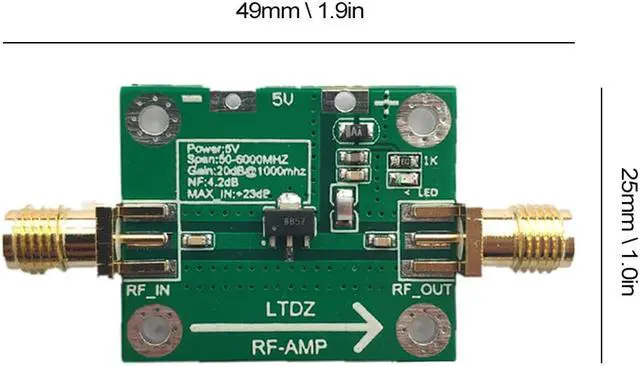

power amplifier pre-amplifierItem size: 49 * 25 * 6.5 mm / 1.9 * 1.0 * 0.3 inItem weight: 6g
/ 0.2 ouncePackage size: 51 * 29 * 7mm / 2.0 * 1.1 * 0.3 inPackage weight: 6.5 g / 0.2 ounce It is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 5V supply, the SBB5089 does not require a dropping resistor as compared to typical Darlington amplifiers. The SBB5089 product is designed for high linearity 5V gain block applications that require small size and minimal external components. It is internally matched to 50.
Features: Wideband
flat gain to 4GHz: 1.1 dB. P1dB= 20.4 dBm at 1950MHz. Single fixed 5V supply. Robust 1000V ESD, Class 1C. Fine thermal design and bias circuit. Low thermal resistance.
Applications: PA driver amplifier, cellular, PCS, GSM, UMTS, wideband instrumentation, wireless data, satellite terminals.
Material: PCB
Main color: greenWorking
voltage: 5VFrequency
range: 50MHz-6000MHzTypical
gain: 20dB
@ 1000MHzNF: 4.2
dBP1dB: + 20.4 dBIP 3: 38 dBmMaximum input power: +23dBInput
impedance: 50
ohmsModule related applications: weak RF signal amplifier, RF
power amplifier pre-amplifierItem size: 49 * 25 * 6.5 mm / 1.9 * 1.0 * 0.3 inItem weight: 6g
/ 0.2 ouncePackage size: 51 * 29 * 7mm / 2.0 * 1.1 * 0.3 inPackage weight: 6.5 g / 0.2 ounce It is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 5V supply, the SBB5089 does not require a dropping resistor as compared to typical Darlington amplifiers. The SBB5089 product is designed for high linearity 5V gain block applications that require small size and minimal external components. It is internally matched to 50.
Features: Wideband
flat gain to 4GHz: 1.1 dB. P1dB= 20.4 dBm at 1950MHz. Single fixed 5V supply. Robust 1000V ESD, Class 1C. Fine thermal design and bias circuit. Low thermal resistance.
Applications: PA driver amplifier, cellular, PCS, GSM, UMTS, wideband instrumentation, wireless data, satellite terminals.
