Weastlinks 3000Mbps Bluetooth 5.0 Wireless AX201NGW Wifi Desktop Kit Antenna For NGFF/M.2 CNVIo2 Intel AX201 Wi-Fi6 Network Card

Features:

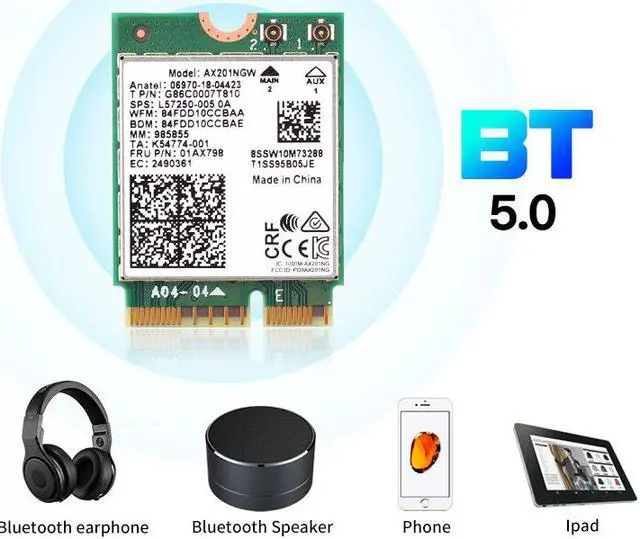

Wifi-6 AX201

The Wi-Fi 6 AX201 adapter is a CRF(companion RF module)supporting the integrated wireless 802.11ax solutions from Intel.The solution provides Bluetooth 5 and 2x2 802.11ax Wi-Fi.The maximum throughput supported by the Wi-Fi 6 AX201 is a speedy 2.4 Gbps(160Mhz). The AX201NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.

Description

Chipest Brand: Intel
Model: AX201NGW

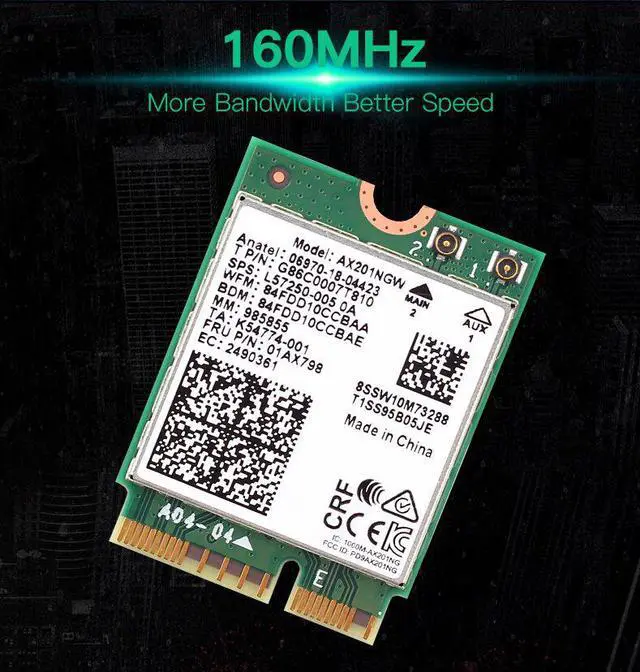

Dual band: 2.4Ghz / 5Ghz(160Mhz)

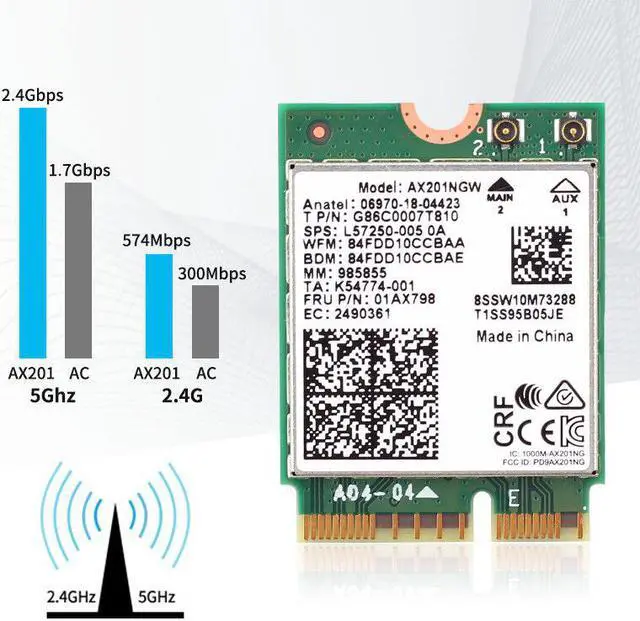

Speed up to 2.4Gbps (The router must on 160Mhz,802.11ax);
Speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both).
With Bluetooth 5.0, Support MU-MIMO

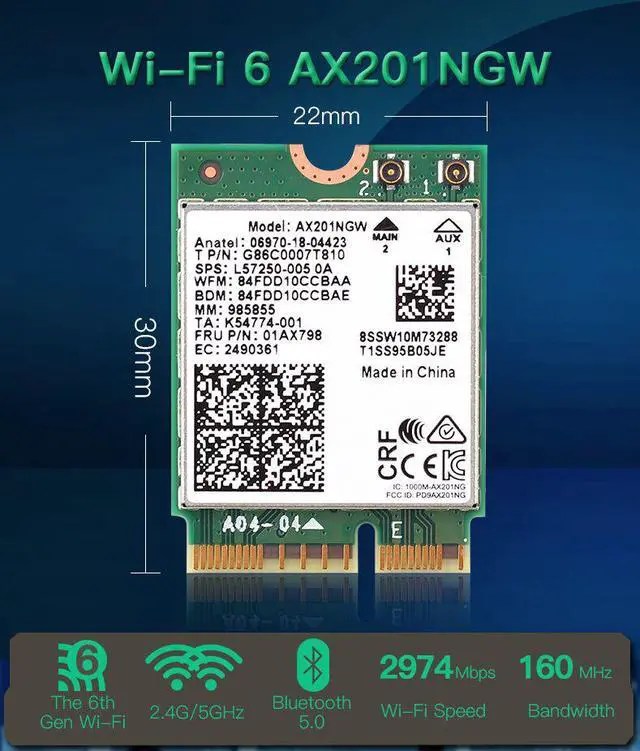

?Interface: M.2,CNVI, 22*30MM
Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,
Note: Not support Windows 7/8/8.1
The module supports MU-MIMO, 2x2 TX/RX channels with two antenna and Bluetooth 5.0

Note:

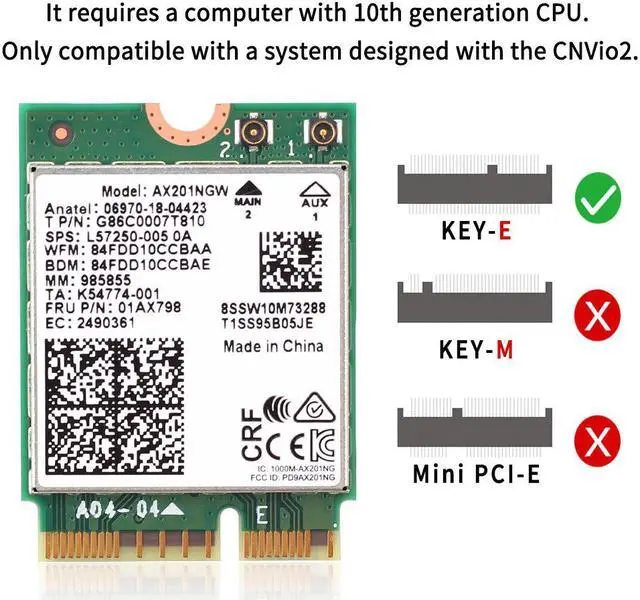

AX201NGW is compatible with fewer computers. It requires a computer with 10th generation CPU. Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVio2.

Compatible With:
Support almost laptop with NGFF(M.2) 2230 slot; Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc
(Do not include lenovo and HP,if it can use after rewrite the whitelist ).

Not support IBM/Thinkpad/lenovo/hp laptop.
(Any question,pls feel free to contact with us,thanks.)

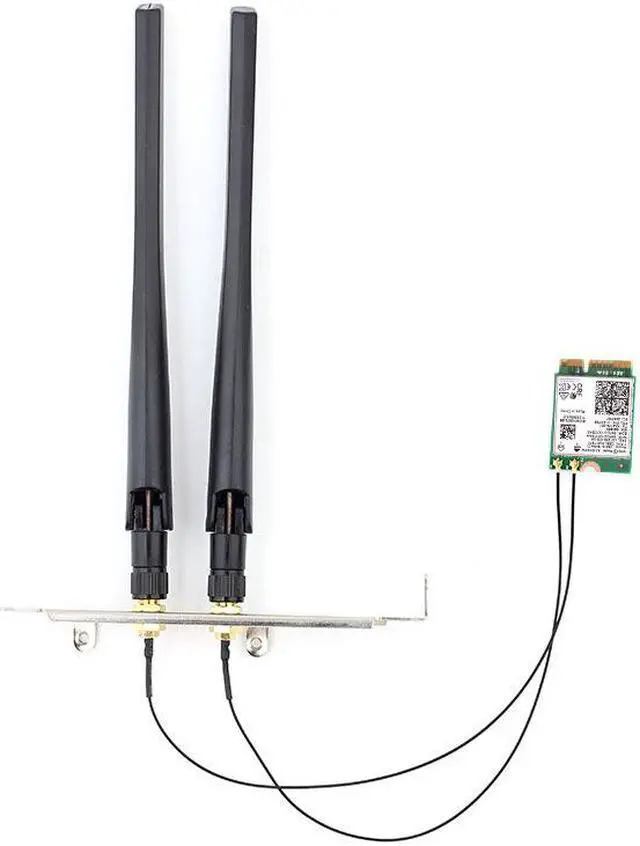

Antenna Set
Specifications:
New and high Quality
The item can competible With Router PC WIFI 3G 4G Card etc
6Dbi Antenna Length: 19.5cm
IPEX MHF4 U.FL Length: 20cm
Support Network: 802.11b, 802.11g,802.11n,802.11ac,802.11ax
Connector: Same as the picture on listing
Flexible WiFi antenna

Package Included:
1 x AX201 card
2 x 6Dbi Antenna
2 x IPEX MHF4 U.FL Cable
