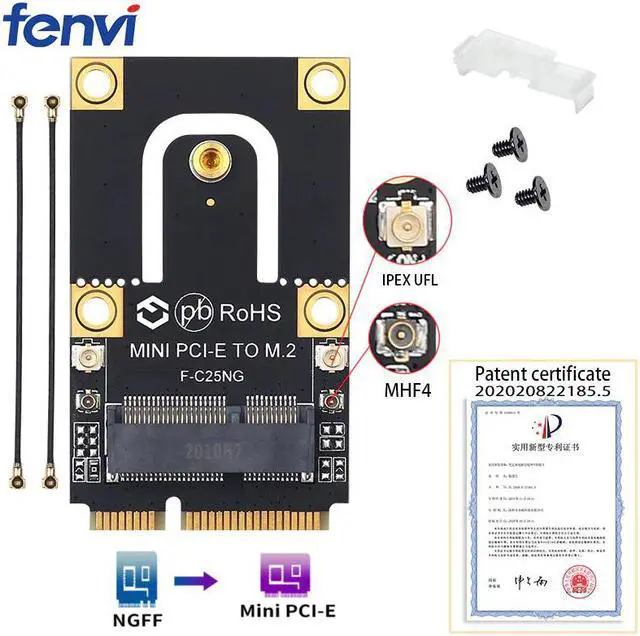

M.2 NGFF To Mini PCI-E Wireless Adapter Converter With IPEX 4 Antenna For M.2 Wifi Bluetooth Card For AX200 BCM94352Z DW1560

M.2 NGFF Key E To Mini PCI-E AdapterBrand: ;

Condition: New;

Interface type: M.2 / NGFF Key E A to Mini PCI-E;

Feature: Include IPEX 4 antenna interface, IPEX interface, that don't need to replace the antennas;

No need extra power adapter and any drivers;

Supports and Designed for: Mini PCI-E slot;

Note: Only support KEY A+E to PCI-E(The single Key E interface cann't be used),compatible with Wireless Wifi Bluetooth card, Such as AX200, 9260, 8265, 8260 and BCM94352Z, DW1560 NGFF(M.2) Wireless card, ect.

Not fit Intel 9560, AX201, SSD ,3G/4G module.

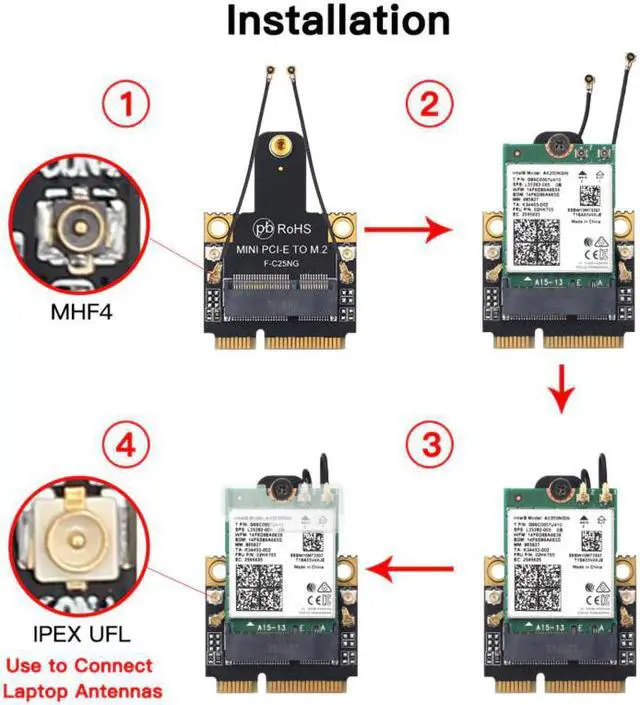

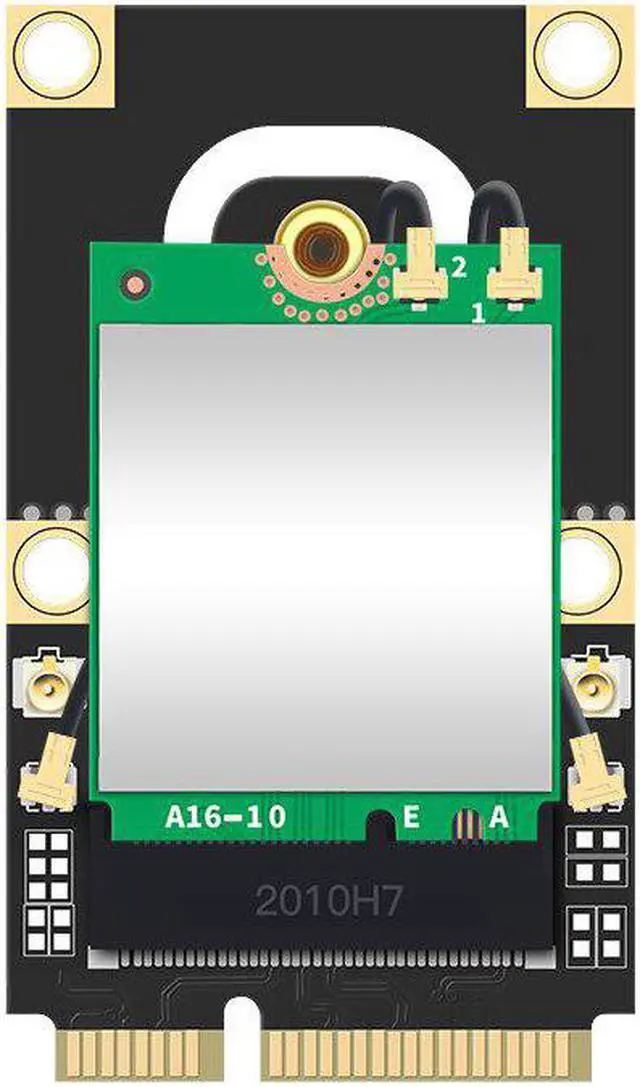

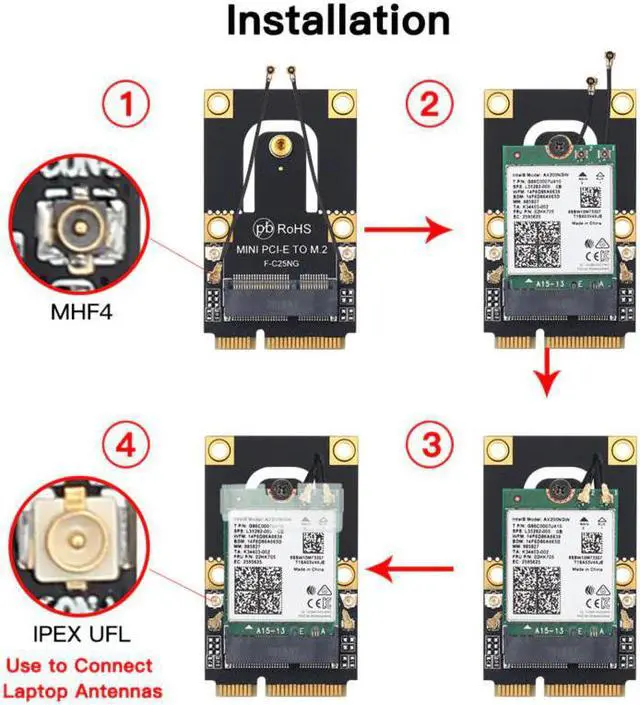

InstallationUse the M.2 Key E to Mini PCI-E Converter Easy Install Wifi Card,

M.2 Wifi card to Full Size PCI-e.

M.2 Wifi card To half Size Mini PCI-e Wireless card,it can replace old Mini PCI-E Wifi card in your lasptop.

AX200 Wi-Fi 6 CardDescription:

Chipest Brand: Intel

Model: AX200NGW

Dual band: 2.4Ghz / 5Ghz(160Mhz)

Speed up to 2.4Gbps (The router must on 160Mhz);

Speed of 2.4 Gbps on the 5GHz (160 MHz) band and 574Mbps using 2.4GHz band (802.11ax in both).

With Bluetooth 5.0, Support MU-MIMO

Interface: NGFF(M.2)See Image, 22*30MM

Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,

Note: Not support Windows 7/8/8.1

The module supports MU-MIMO, 2x2 TX/RX channels.

Intel Wifi-6 AX200

Intel® Wireless-AC AX200 Ultra Wi-Fi, Ultra Features, Ultra Connected Experience.

The Intel Wi-Fi 6 AX200 supports 802.11ax via 2x2 MU-MIMO antennas over the 2.4 GHz and 5 GHz bands.

Intel's AX200 supports Bluetooth 5.0.

The maximum throughput supported by the Wi-Fi 6 AX200 is a speedy 2.4 Gbps(160Mhz).

Some screw.
