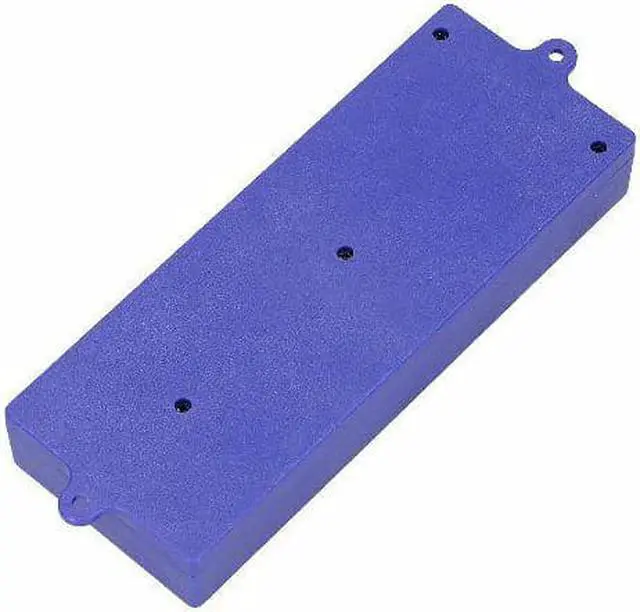

8 Port Passive Gigabit POE Injector Panel 12-48V POE8PG for Ubiquiti, Mikrotik

OVERVIEW

8 PORT POE INJECTOR GIGABIT supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. Passive PoE is composed of 4 set of RJ45 sockets and one 60V DC power jack. Input power requests 90W or more AC to DC power converter. The input DC hole diameter is 2.1 mm and the other end OD is 5.5 mm.
The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for
AC-DC power converter is: 10W per RJ45 set (1 set = 2 x RJ45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel

LED Indicator

POWER LED:
-POWER OFF Off
4/5 (V+), 7/8 (V-) - Green LED
4/5 (V-), 7/8 (V+) - Red LED

SPECIFICATIONS

Input: 12-57V DC 2.1MM, Phoenix 3.5 mm
Output: 12-57V PER PORT (1A Max)
Data: 1/2&3/6&4/5&7/8
Power: 4/5 & 7/8
Data In: Connects PC/HUB/Switch
Weight: 160g
Dimensions: 180mm×60mm×25mm
Ethernet Cable: TIA/EIA 568 Cat. 5
Data rate: 10/100/1000Mbps
Connector: RJ-45
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C~+70°C
Operating Humidity: 10%~80%RH
Storage Humidity: 5%~90%RH
Certification: CE, FCC
