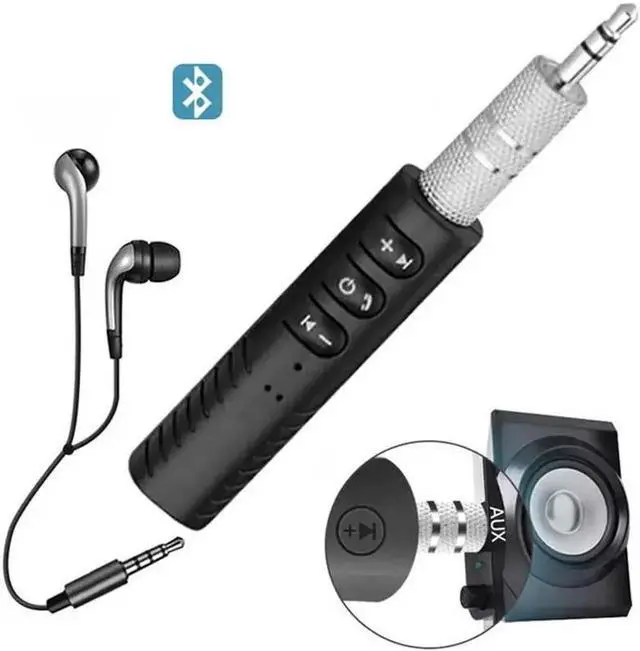

Receiver Car Kit Adapter Wireless 3.5 Mm Aux Audio Stereo Music Hand- Vehicle Adapter Hand- Vehicle Adapter

System status:

Power off: MFB long press for 3 seconds

Volume up: short press VOL+

Volume reduction: press VOL-

Switching languages: double-click and hold MFB in the pairing state (red and blue lights flashing)

Pairing timeout shutdown: shutdown after 5 minutes of pairing status

Low voltage reminder: when the voltage is less than 3.2 v, it is reminded every 5 seconds, and 3.1 v is off

Music control:

Play pause: press MFB

Last song: VOL- press for 2 seconds

Next song: VOL+ 2 seconds

Telephone control:

Answer the phone: press MFB when calling

Reject the call: the duration of the call is MFB

Unsigned redial: double-click the MFB key, then press MFB to cancel the dialing

Led display:

Power-on pairing: red and blue lights flashing alternately

Connection status: blue light flashes slowly (5 seconds 1 time)

Low voltage: red light flashing ( 0.5 SEC 1)

Working current:

Status parameter ( 4.00 v) ( 3.40 v)

Rated operating voltage 4.00V 3.40V

Matching state current 4.33 ma- 20.56 mA 4.47 ma- 22.03 mA

Standby current ( connected) 0.43 ma- 8.31 mA 0.41 ma- 8.74 mA

Play music current 19.04 ma- 23.21 mA 22.85 ma- 23.74 mA

The call current is 23.82 ma- 24.05 mA 25.19 ma- 25.78 mA

Charging current 100.0 mA. 100.0 mA

Power off current 1.4 uA 1.1 uA

Note:

If you have any questions about receiving the package, please contact us at the frist time!
