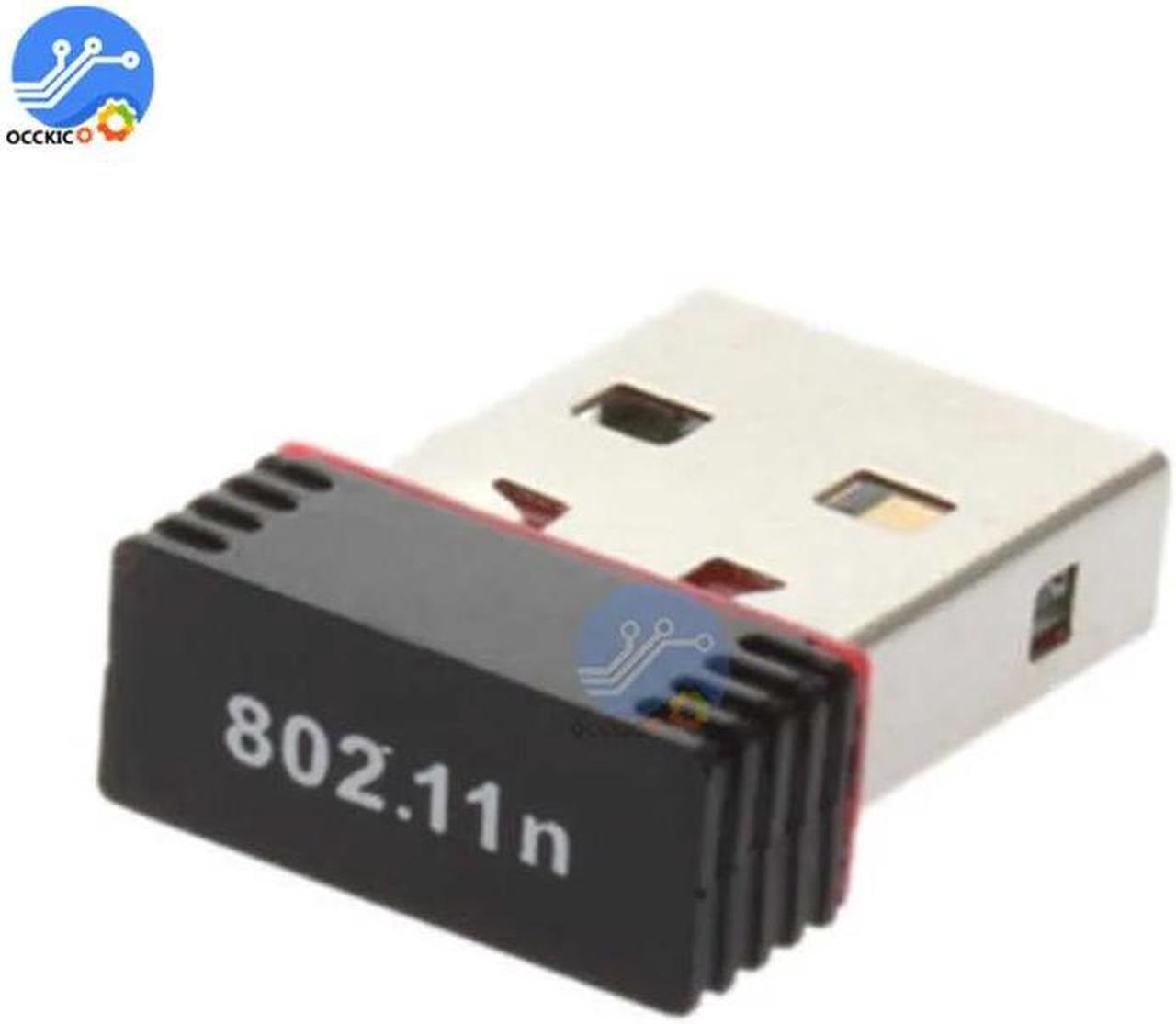

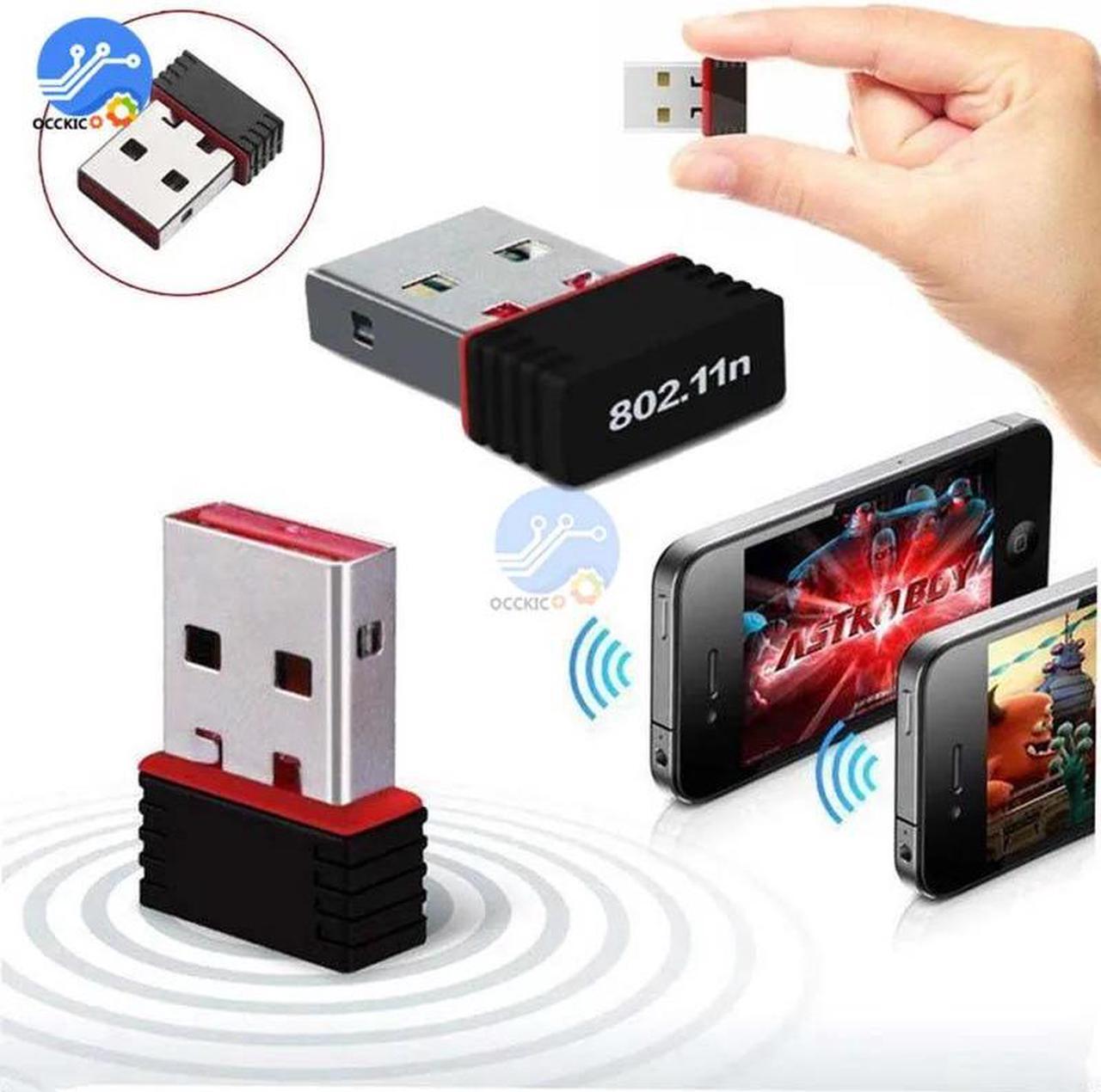

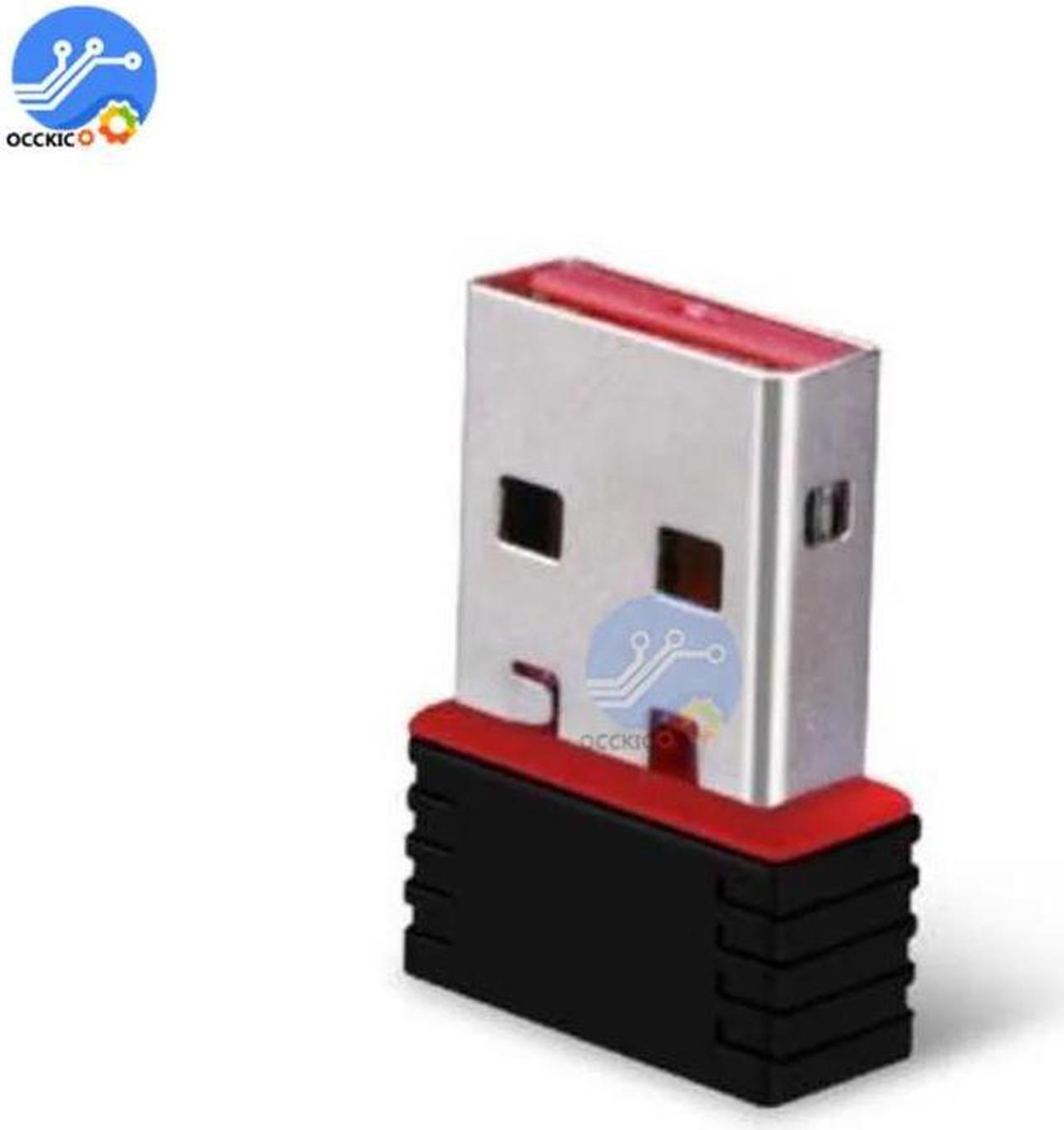

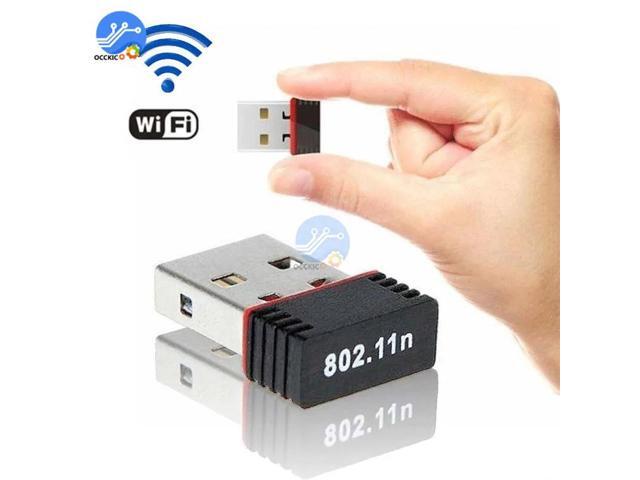

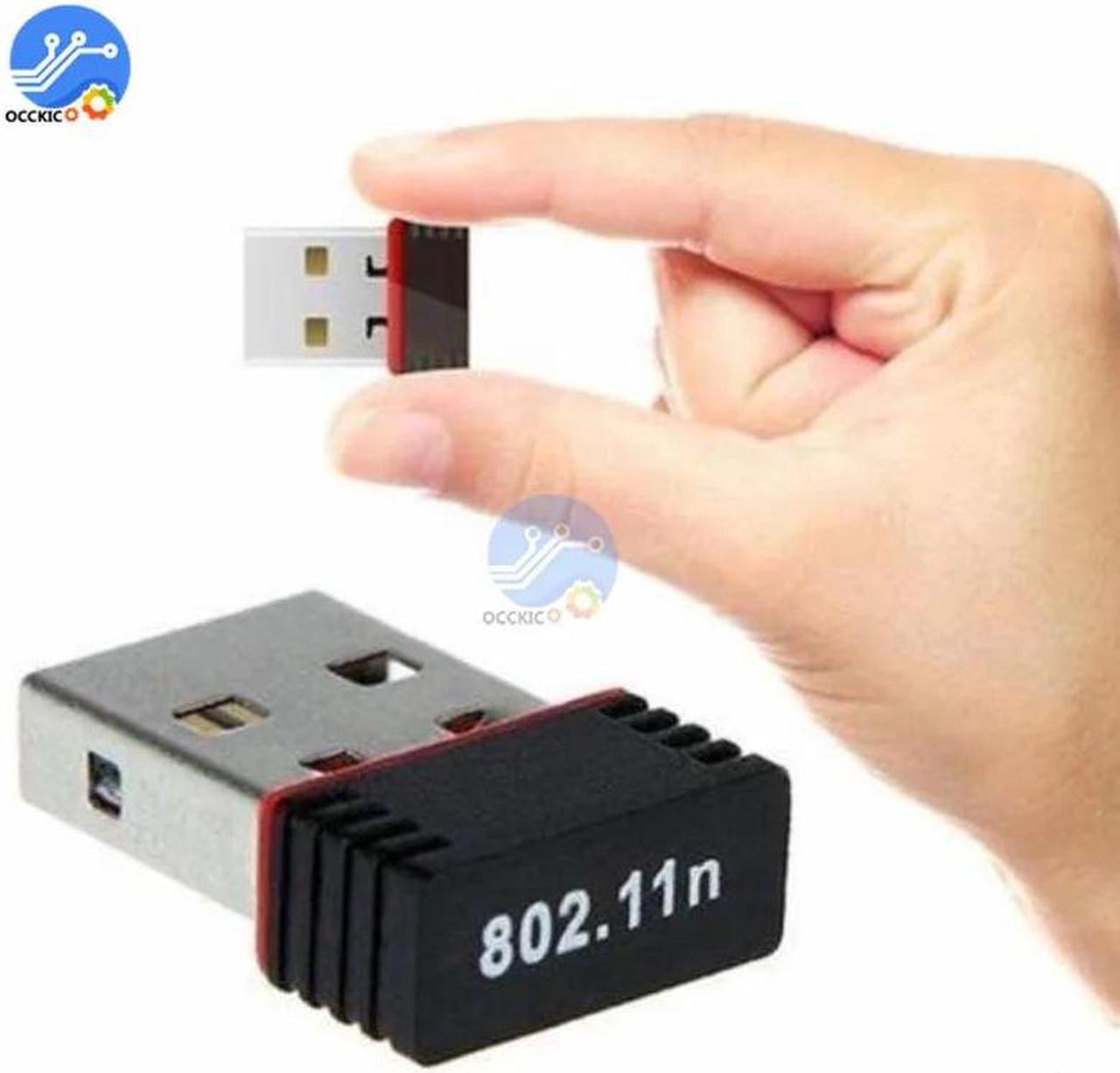

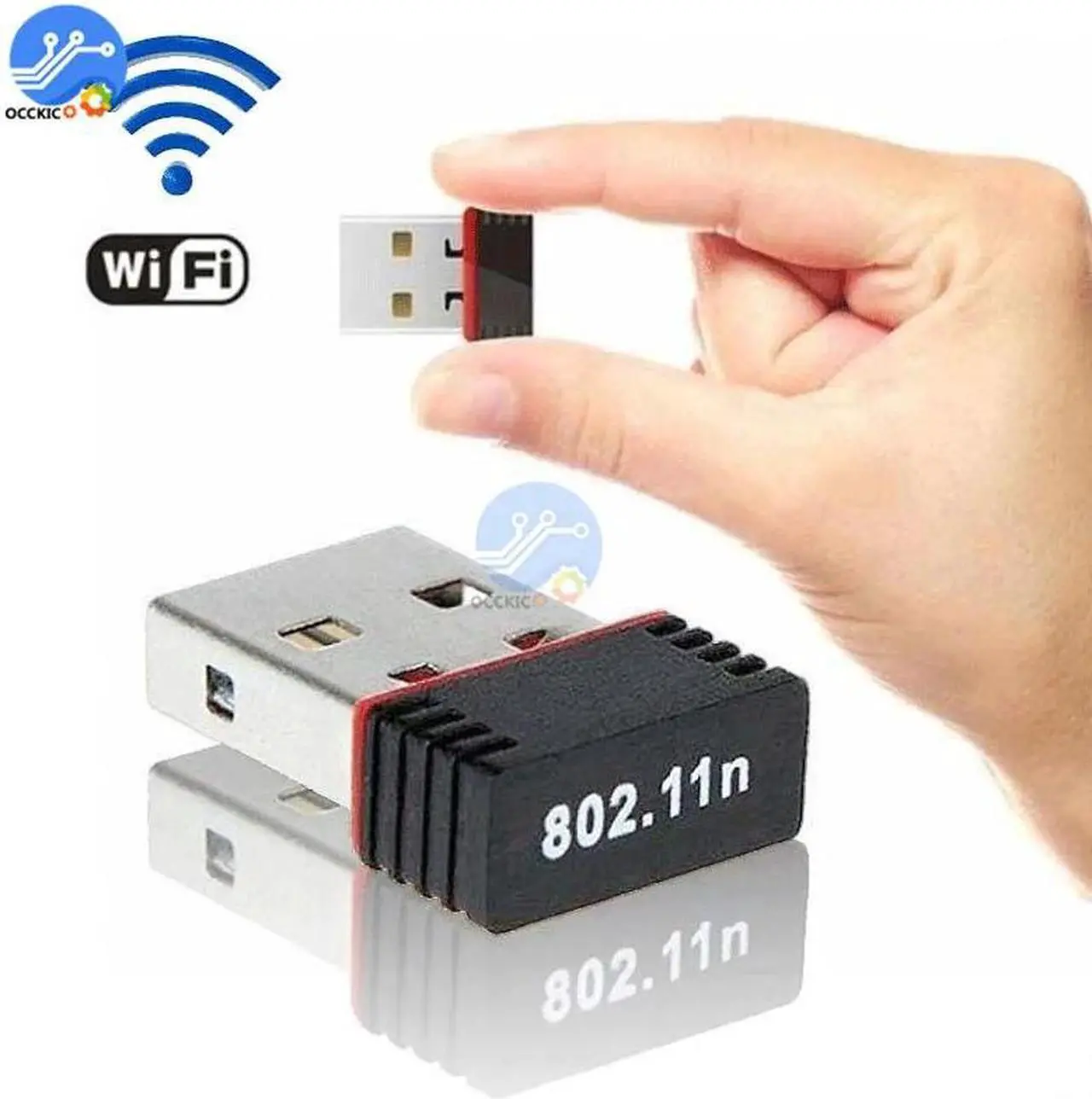

Adapter MTK7601 150Mbps USB WiFi Adapter 802.11n/g/b IEEE 801.11n 802.11g 802.11b LAN+Antenna for PC Network

Adapter MTK7601 150Mbps USB WiFi Adapter 802.11 n/g/b IEEE 801.11 n 802.11 g 802.11 b LAN+Antenna for
PC Networkfeature:

Compliant with IEEE 801.11 n IEEE 802.11 g, IEEE 802.11 b standard

1x1 / 1x2 mode

STBC supports extended range

Traditional and high throughput modes

20MHz / 40MHz bandwidth

Reverse data flow and frame aggregation

WEP 64/128, WPA, WPA2 support

Multiple BSSID support

Provide USB 2.0 high speed interface

Cisco CCX V 1.0 V 2.0 V 3.0 Compliance

Low power, advanced power management

For Windows 7, Windows XP, Windows Vista and Windows 2000

Product Features:

Socket Adapter: USB 2.0 / 1.1

Interface type: USB

Application: Desktop

Frequency range: single frequency ( 2.4 GHz)

Type:

Type: External

Transmission rate: 150Mbps

protocol: 802.11 b, 802.11 g, 802.11 n

Model: None

specification:

Standard: IEEE 802.11 g, IEEE 802.11 b, CSMA / CA with ACK

Interface: USB 2.0

Frequency range: 2.4GH z- 2.4835GH z

data rate:

11N: 150/54/28/14/7/3 (adaptive)
11G: 54/28/14/7/3 (adaptive)

11b: 11 / 5.5 / 2 / 1M (adaptive)

Channel: 1~11 (US, Canada); 1~13 (Europe); 1~14 Japan

Spread Spectrum: DSSS

Modulation: BPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

Transmission distance: up to 100m indoors and up to 300m outdoors (limited to

surroundings)

Transmitting power: 15dBm

Antenna plus: 2X2dBi

LED indicator: status

Data security: WPA; 64/128-bit WEP; TKIP / AES

Environment: Working
temperature: 0 ° C ~ 40 (32 ~ 104)

Working humidity: 10%~90% without condensation
