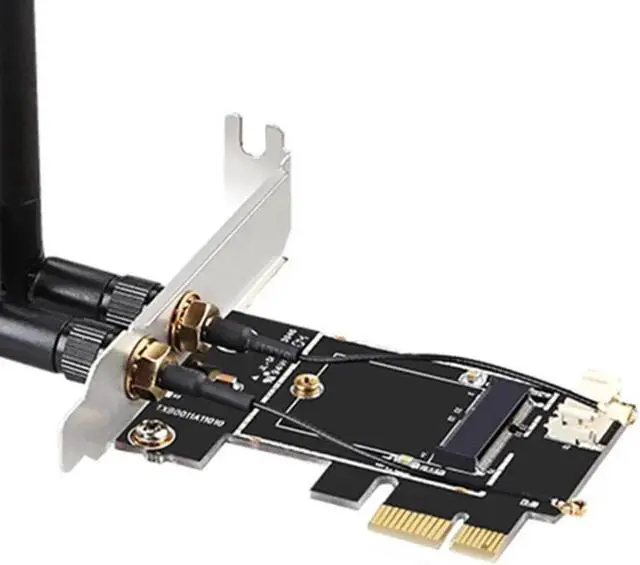

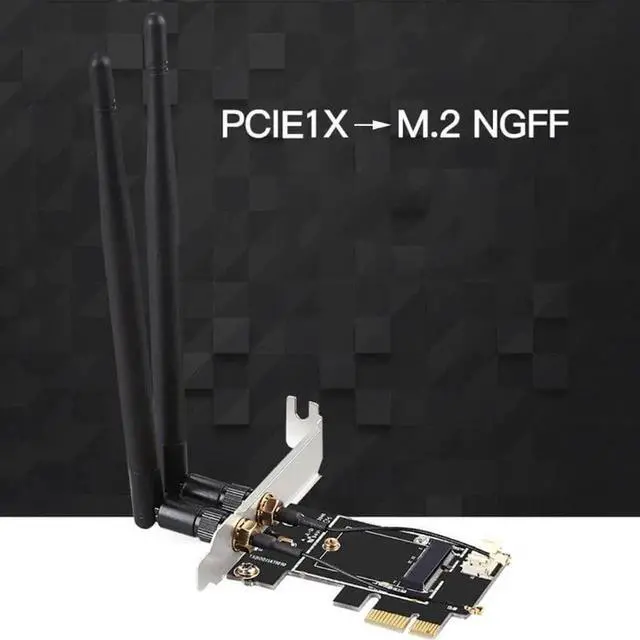

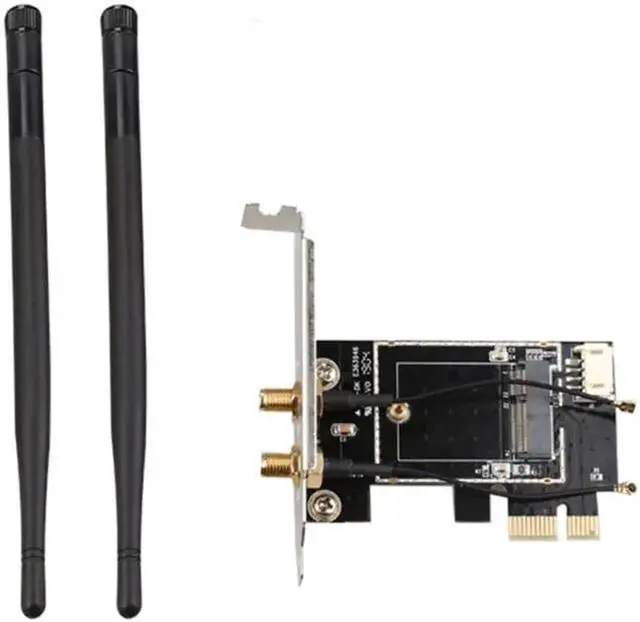

Card to pciE-1X to NGFF-Ekey PCIE Laptop Pc WIFI WLAN Card Adapter Dual Antenna Adapter Board

Card to pciE-1X to NGFF-Ekey PCIE Laptop Pc WIFI WLAN Card Adapter Dual Antenna Adapter Board

Description:

100% brand new, high quality

Features:

The PCI-E M. 2/NGFF Card passive adapter is designed for application on desktop PCs that convert half-size MiniCard (NGFF ) to USB 9pin Header or standard PCI-Express 1x slot.

You can insert your USB type M. 2 card to this adapter then plug to USB 9pin header port through USB cable. Or insert your PCI-E type M. 2/NGFF card into this adapter then insert to PCI-E 1x connector.

WiFi & Bluetooth Combo card such as ® Dual Band -AC 7260/7265/8260ac can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.

Low Profile Height PCI Express1x Add-in Card Standard Height by bundled bracket

Support PCIe MiniCard: IEEE WLAN 802.11 a/b/g/n, 802.11 d, 802.11 e, 802.11 i, 802.11 h, 802.11 ac

Transparent to operating systems and does not require any software drivers.

Note the WIFI card need the software drivers)

Specifications

:

Item Type: Card

Material: ABS

Size: approx. Antenna length 65mm / 2.56 in, circuit
board: 75x70 mm / 2.95 x 2.76 in

Color: As Shown

Quantity: 1 Pc

Note:.

The adaper don't support ThinkPad Wlan card(FRU#)

Not Includes the NGFF Wlan Card!!

Transition: 1cm=10mm= 0.39 inch.

Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:

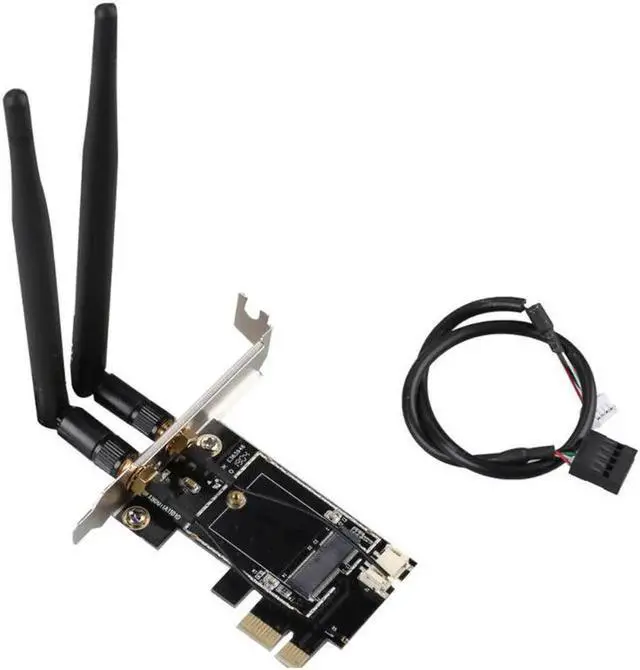

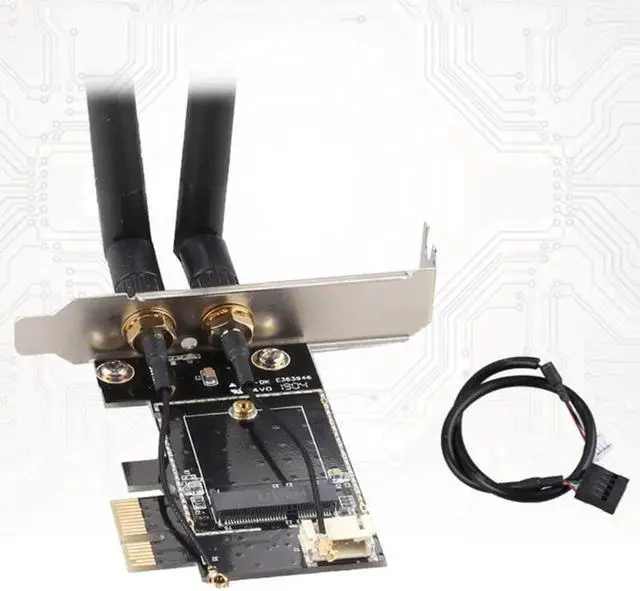

1 x M. 2/NGFF Card to PCI express Adapter

1 X The 8cm Iron baffle
