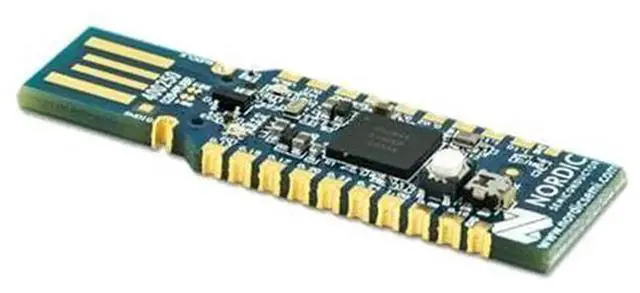

Nordic NRF52840-Dongle AB01 Multi-Protocol USB Evaluation Dongle Based on nRF52840 SoC Bluetooth 5 BLE Zigbee Thread ANT 2.4G Wireless Development Debug Module for IoT Protocol Sniffing

This AB01 model Nordic NRF52840-Dongle is a compact, cost-effective USB form-factor wireless evaluation and development dongle built around the official Nordic nRF52840 ultra-low-power multiprotocol System-on-Chip, widely adopted by embedded engineers, IoT developers and smart home technicians for wireless protocol testing, firmware development and signal sniffing work.

The core nRF52840 SoC integrates a 64MHz 32-bit ARM Cortex-M4F floating-point processor, equipped with 1MB on-chip Flash storage and 256KB high-speed RAM, paired with the Cryptocell 310 hardware encryption security unit to deliver AES-128 cryptographic protection for device data transmission, effectively preventing IoT signal hijacking and information leakage. Its built-in 2.4GHz RF transceiver supports comprehensive wireless standards including Bluetooth 5.0 Low Energy, Bluetooth Mesh networking, Zigbee 3.0, Thread, ANT+ sport protocol and customized 2.4GHz proprietary communication schemes, realizing multi-protocol one-device coverage without switching multiple adapters.

Standard USB 2.0 plug design enables direct plug-in connection with Windows, macOS and Linux computers, perfectly docking with Nordic official nRF Connect for Desktop software suite. Developers can complete firmware compilation, one-click DFU over USB upgrade, wireless air packet capture, BLE/Zigbee/Thread protocol parsing via Wireshark, and real-time radio performance monitoring on the PC terminal. It eliminates complicated J-Link debugger wiring for basic program downloading and debugging, greatly lowering the threshold of wireless IoT development.

Rich onboard peripheral resources facilitate secondary development and function verification: a freely programmable RGB indicator LED and independent green status LED visually display running status, connection pairing and program triggers; a dedicated user push button can be configured for device pairing, mode switching and interrupt testing; castellated solder pads expose 15 expandable GPIO pins for external sensors, buzzers, motors and peripheral modules to build custom small IoT prototypes. The RF module supports adjustable transmit power from +8dBm down to -20dBm, with ultra-high receiving sensitivity up to -103dBm under BLE long-range mode for stable long-distance wireless communication.

With tiny stick-sized housing, it occupies minimal desktop space and is easy to carry for outdoor field testing, equipment maintenance and on-site protocol troubleshooting. This development dongle serves as an all-in-one tool for Bluetooth device reverse engineering, smart home gateway prototype development, wearable fitness equipment debugging, industrial IoT sensor networking, wireless keyboard/mouse HID project verification and 2.4G RF signal analysis, being an essential hardware accessory for Nordic chip ecosystem development.
