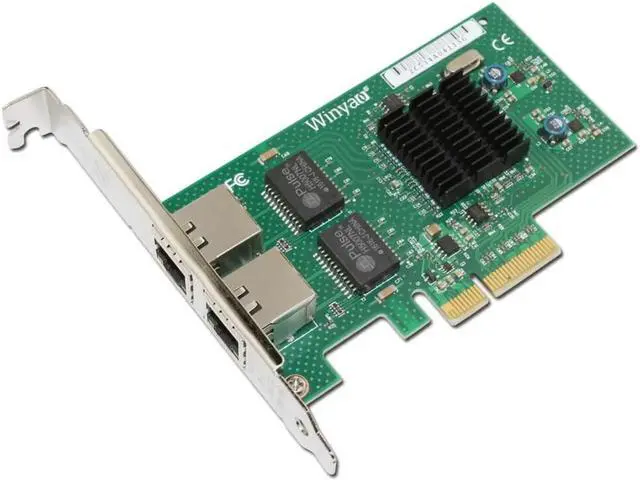

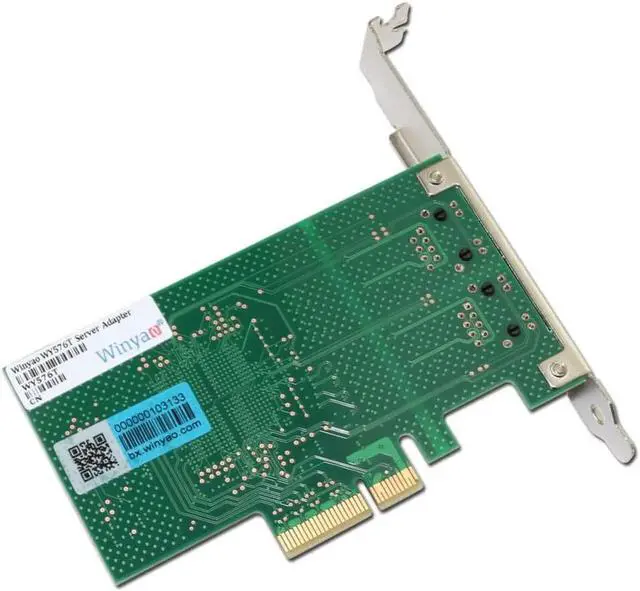

WY576T PCIe X4 Dual Port Server Adapter Copper RJ45 Gigabit 1000Mbps Ethernet Network Card For 82576 E1G42ET

Features:

WY576T is based on intel 82576EB Gigabit Ethernet Controller?Is PCI-Express X4 network interface card that contains.

Two Gigabit RJ45 ports on a PCI-Express adapter.

Copper Gigabit Ethernet 1000Base-T :

Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).

Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.

Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.

Common Key features:

Support PCI Express Base Specification 2.0 (5 GTs).

High performance, reliability, and low power use in Intel 82580 Quad integrated MAC + PHY and SERDES chip Controllers.

Ultra deep, packet buffer per channel lowers CPU utilization.

Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.

Server class reliability, availability and performance features:

Link Aggregation and Load Balancing.

Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC).

Switch and NIC Independent.

Failover

Priority queuing 802.1p layer 2 priority encoding.

Virtual LANs 802.1q VLAN tagging.

Jumbo Frame (9.5KB).

802.x flow control.

Multicast/ broadcast Packet replication.

Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30).

Supports Vital Product Data (VPD).

LEDs indicators for link/Activity status.

Specifications

Model:WY576T

Chipset:intel 82576

Slot Type:PCI-E X4

Interface:RJ45 * 2

Transmission Rate:10/100/1000Mbps

Boot Rom:Yes

Management Features:IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering

Transmitted Power

Supports System:DOS , Windows , Linux , FREEBSD, NWSERVER

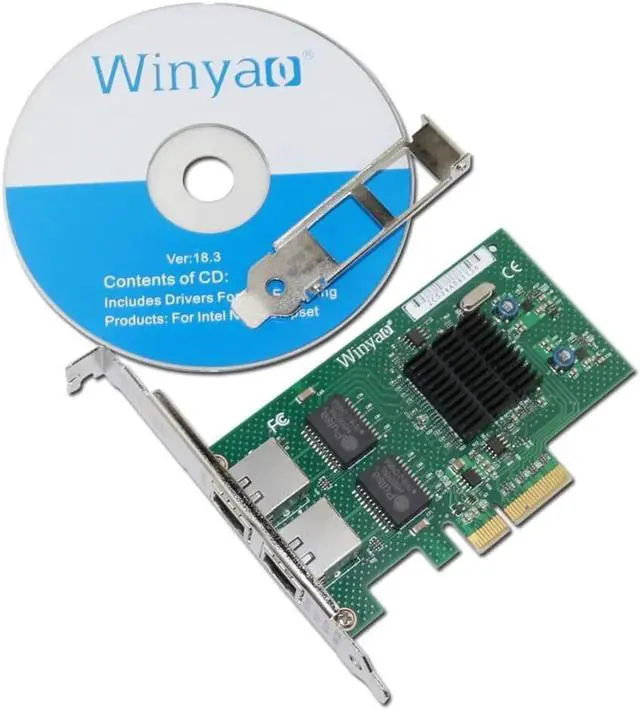

Package Included:

1 x Network Card
