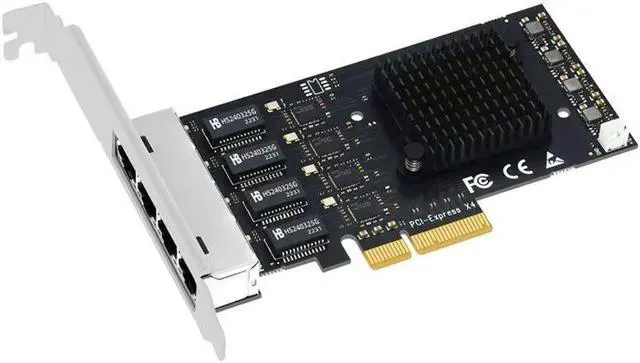

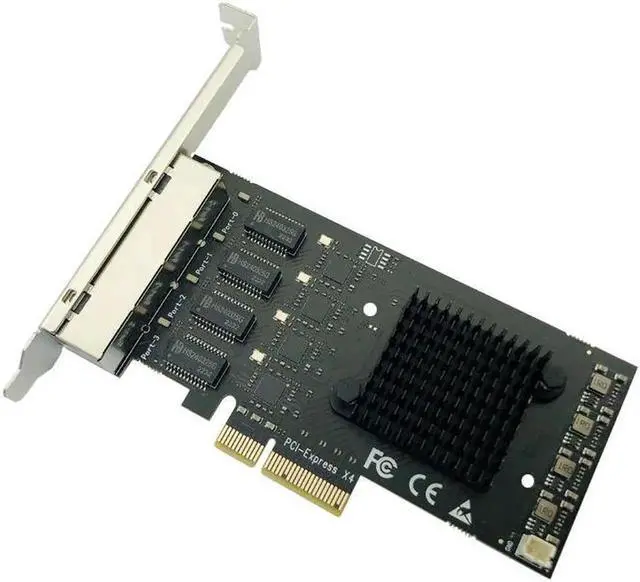

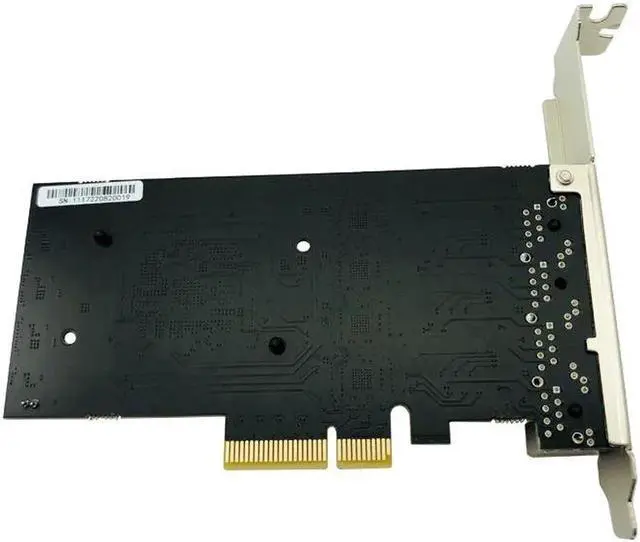

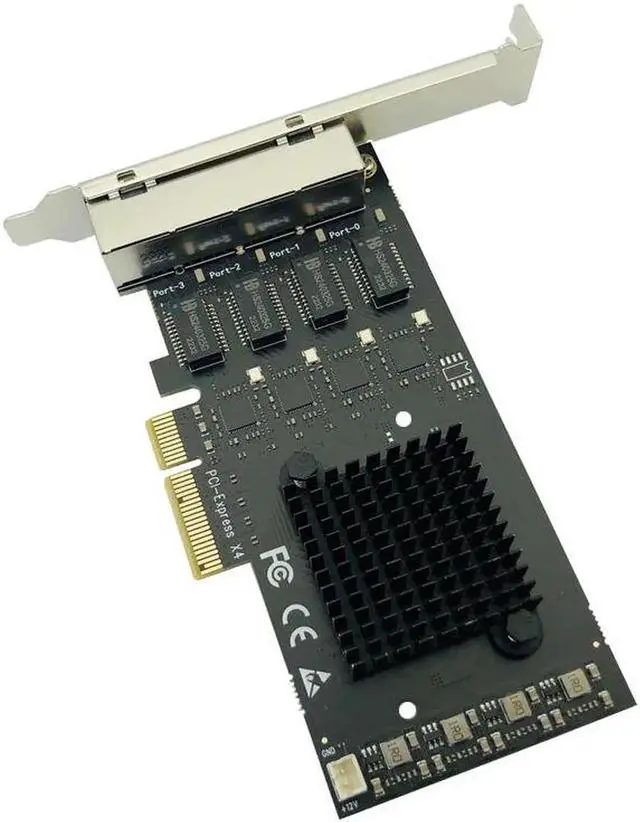

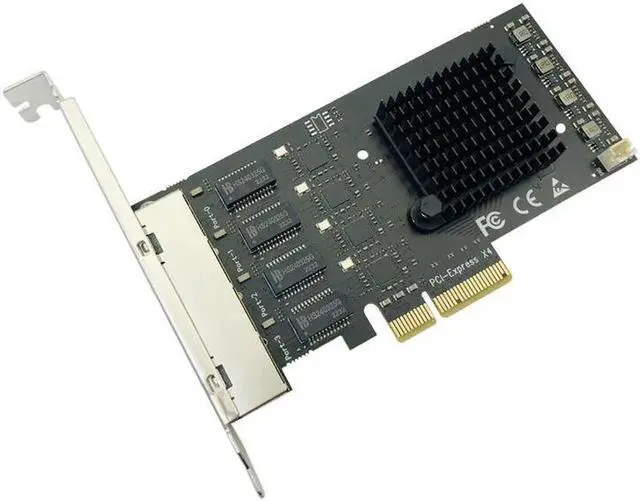

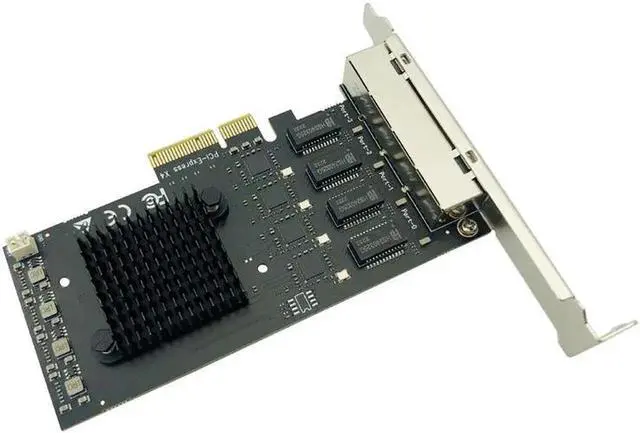

PCI Express Network Card Adapter 4 Port 2500Mbps Gigabit 10/100/1000Mbps RTL8125B RJ45 Wired Computer PCIE PCI-E 2.5G LAN Dongle

Features:

1. Supports 2.5G Lite (1G data rate) mode

2. Supports PCI Express 2.1

3. Supports 4 high performance 2.5 -Gigabit LAN ports

4. Auto-Negotiation with Extended Next Page capability (XNP)

5. Compatible with NBASE-TTM Alliance PHY Specification

6. Supports pair swap/polarity/skew correction

7. Crossover Detection & Auto-Correction

8. Supports hardware ECC (Error Correction Code) function

9. Supports hardware CRC (Cyclic Redundancy Check) function

10. Transmit/Receive on-chip buffer support

11. Supports PCI MSI (Message Signaled Interrupt) and MSI-X

12. Supports power down/link down power saving/PHY disable mode

13. Supports ECMA-393 ProxZzzy Standard for sleeping hosts

14. Supports LTR (Latency Tolerance Reporting)

15. Supports 32-set 128-byte Wake-Up Frame pattern exact matching

16. Supports Microsoft WPI (Wake Packet Indication)

17. Supports PCIe L1 substate L 1.1 and L 1.2

18. Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab

19. Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization

20. Supports IEEE 802.1Q av credit-based shaper algorithm

21. Supports IEEE 802.1P Layer 2 Priority Encoding

22. Supports IEEE 802.1Q VLAN tagging

23. Supports IEEE 802.1 ad Double VLAN

24. Supports IEEE 802.3 az (Energy Efficient Ethernet)

25. Supports IEEE 802.3 bz ( 2.5GB ase-T)

26. Supports Full Duplex flow control (IEEE 802.3 x)

27. Supports jumbo frame to 16K byte

28. Supports standard and low profile chassis

29. Support ESXI 6.7 ( 7.0 not support)

30. Support Black Dress/PVE/Ikuai/Unraid 6.9. 2/OpenWrt

System Requirement:

Windows OS

Linux, MAC OS and DOS

PCI Express-enabled system with an available PCI Express slot

Packing list:

1 x PCI-Express to 4 Ports 10/100/1000M/ 2.5G Ethernet Network Card
