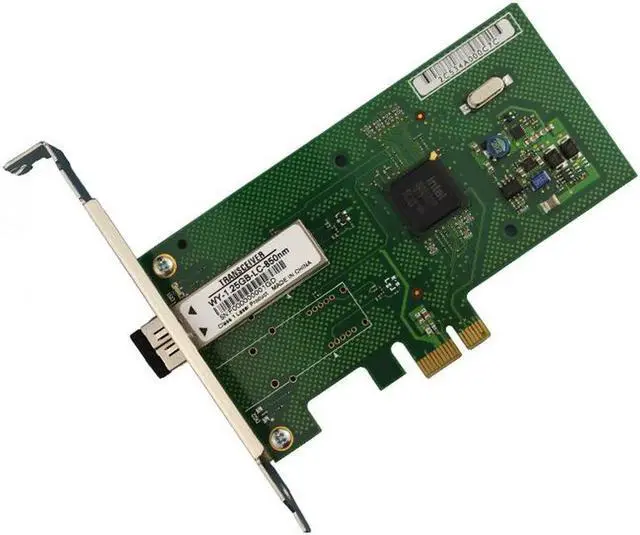

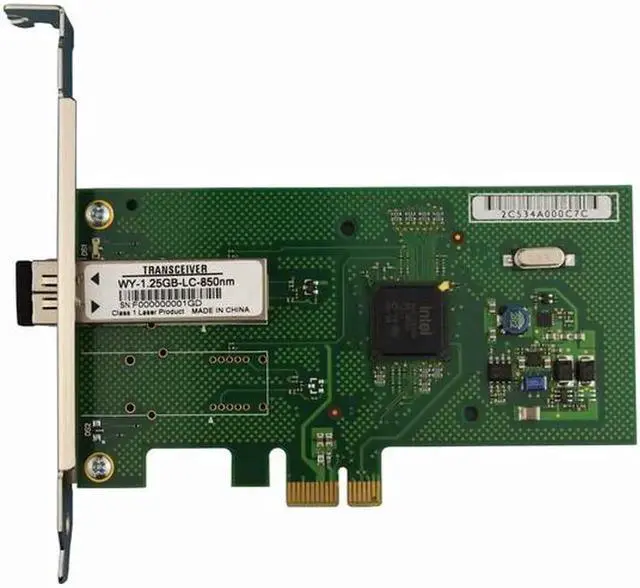

WY580F PCI-E X1 1000M Gigabit desktop fiber network card 82580 diskless PXE multimode LC Fiber Ethernet

Features:

- Sing Port 1000SX (850NM)

Support PCI Express Base Specification 2.0 (5 GTs)

- High performance, reliability, and low power use in Intel 82580 Quad integrated MAC + PHY and SERDES chip Controllers

- Ultra deep, packet buffer per channel lowers CPU utilization

- Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation

- Server class reliability, availability and performance features:

- Link Aggregation and Load Balancing

- Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)

- Switch and NIC Independent

- Failover

- Priority queuing 802.1p layer 2 priority encoding

- Virtual LANs 802.1q VLAN tagging

- Jumbo Frame (9.5KB)

- 802.x flow control

- Multicast/ broadcast Packet replication

- Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)

- Supports Vital Product Data (VPD)

- LEDs indicators for link/Activity status

WY580F

Suitable for the type of network:Gigabit Ethernet

Transfer rate:10/100 / 1000Mbps

Bus Type:PCIe X1

Transmission medium and interface:LC * 1

Number of interfaces:1A

Transmission distance:Multimode :62.5 umWhen220M ,50 umWhen550M

Boot Rom:Stand by

Full / half duplex:Full / half duplex adaptive

LEDIndicator:1LEDs

Field of application:Desktop computers , workstations, servers

The main chip:Intel 82580DB

Metal stents:Long and short shutter

Network Standard:IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad

Driver Support:Microsoft Windows (32 \u0026 64 bit), SCO UnixWare 7.x, Open Unix 8.0, Novell ODI , Novell Netware , SUSE Linux Enterprise Server 9.0, Red Hat Enterprise Linux 4.0, Linux , FreeBSD , Sun Solaris , Microsoft DOS , VMWare ESX

Features:Support Iscsi, PXE diskless boot , VLAN aggregation, routing , and so soft .

Package Included:

1 x Network Card
