Fibocom L830-EB 4LTE WWAN Card For HP L35286-005 Intel XMM 7262 LTE-Advanced Cat6 300Mbps for 640 650 G5 840 846 850 G6 X360 830

Features:

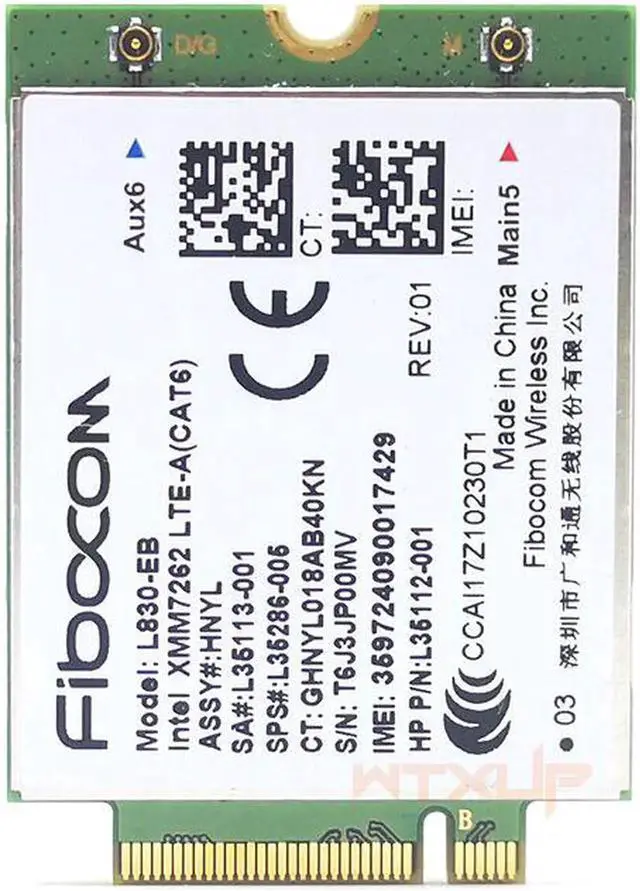

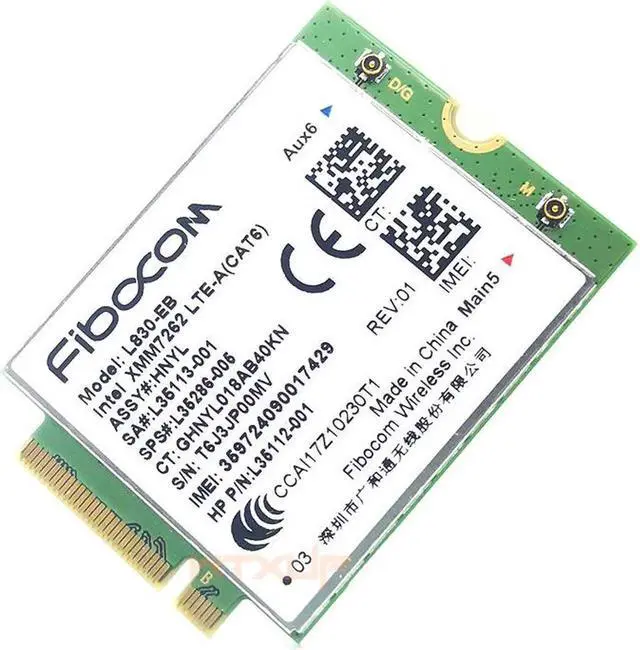

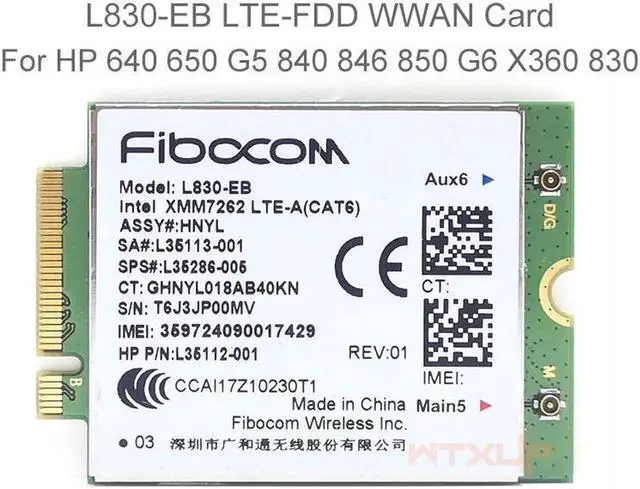

Model: L830-EB LTE M.2 WWAN card For HP laptop.

LTE Cat6 cellular module.

Form factor: M.2.

Laptop/Tablet SKU With GNSS.

LTE FDD 1,3,5,7,8,20,28.

WCDMA : 1,5,8.

Gateway SKU Without GNSS.

LTE FDD:1,3,5,7,28.

WCDMA:1,8.

M.2 Key-B 90*42*2.3mm.

CSFB Support.

GNSS Support.

Operating Voltage :DC 3.135~4.4V, Typical 3.3V

Operating Temperature :- 30~+65?

AT Command Set:3GPP TS 27.007 and 27.005, and proprietary

FIBOCOM AT commands

TX Power:

FDD LTE:23dBm WCDMA:23.58Bm

RX Sensitivity:

FDD LTE:-98dBm~102dBm WCDMA:~-220dBm

Data Tranmission:

FDD LTE : 300Mbps DL, 50Mbps UL

UMTS: 384Kbps DL, 384Kbps UL

Approval:

Laptop/Tablet SKU:GCF,CE,RoHS,HF,CB,NCC,etc.Total 18

certs for global shipment

Gateway SKU 1 : NCC, Anatel(TBD),RoHS,HF

Gateway SKU 2 : GCF,CE,RoHS,HF,FCC,Vodafone

FIBOCOM L830-EB series are M. 2 form factor LTE wirelesscommunication modules which support LTE-FDD/WCDMA. The highest speed can reach Cat6 300Mbps DL and 50Mbps UL. L830-EB can cover multi-countries network.L830-EB can be widely used in consumer electronics(Laptop/Tablet), gateway industry.

.

OPERATING SYSTEM(S):

Microsoft Windows 10 All Editions (64-bit)

Microsoft Windows 10 IOT Enterprise 64-Bit (x86)

Compatible with: HP laptop model. Not for Lenovo and the other model.

LANGUAGE(S): Global

DEVICES SUPPORTED:

Normal mode PID: Intel XMM 7262 LTE-A Cat6

FlashLoader mode PID: Intel XMM 7262 LTE-A Cat6

It is compatible with:

HARDWARE PRODUCT MODEL(S): HP EliteBook 830 G6 Notebook PC,HP EliteBook 836 G6 Notebook PC,HP ProBook 640 G5 Notebook PC,HP ProBook 650 G5 Notebook PC,HP EliteBook 840 G6 Notebook PC,HP EliteBook 846 G6 Notebook PC,HP EliteBook 850 G6 Notebook PC,HP ZBook 14u G6 Mobile Workstation,HP ZBook 15u G6 Mobile Workstation,HP EliteBook 840 G6 Healthcare Edition Notebook PC,HP EliteBook 846 G6 Healthcare Edition Notebook PC,HP EliteBook x360 830 G6 Notebook PC,HP EliteBook x360 830 G5 Notebook PC,HP ProBook 440 G6 Notebook PC,HP ProBook 430 G6 Notebook PC,HP ProBook 450 G6 Notebook PC.

Package Included:

1 x L830-EB For HP WWAN card
