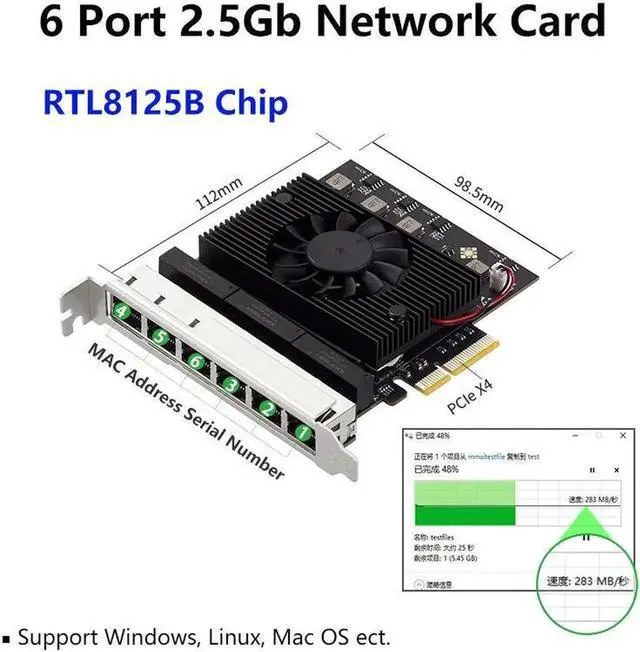

6 Port PCI Express Network Card PCIE X4 to 6 Ports RJ45 NIC RTL8125B Chip 10/100/1000M/2.5G Gigabit Ethernet Card for PC Desktop

Feature:

Supports 2.5G Lite (1G data rate) mode

Supports PCI Express 2.1

Supports 6 high performance 2.5 -Gigabit LAN ports

Auto-Negotiation with Extended Next Page capability (XNP)

Compatible with NBASE-TTM Alliance PHY Specification

Supports pair swap/polarity/skew correction

Crossover Detection & Auto-Correction

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Transmit/Receive on-chip buffer support

Supports PCI MSI (Message Signaled Interrupt) and MSI-X

Supports power down/link down power saving/PHY disable mode

Supports ECMA-393 ProxZzzy Standard for sleeping hosts

Supports LTR (Latency Tolerance Reporting)

Supports PCIe L1 substate L 1.1 and L 1.2

Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab

Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization

Supports IEEE 802.1Q av credit-based shaper algorithm

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging

Supports IEEE 802.1 ad Double VLAN

Supports IEEE 802.3 az (Energy Efficient Ethernet)

Supports IEEE 802.3 bz ( 2.5GB ase-T)

Supports Full Duplex flow control (IEEE 802.3 x)

Supports jumbo frame to 16K byte

Specification:

Interface: PCI express X4

Chipset: RTL8125B

Number of Ports: 6*RJ45

Transfer Rate: 2500Mbps

OS Compatibility: Windows, Linux, MAC OS.

Packing list:

1 x PCIe to 6 Port RJ45 2.5G Ethernet Card

1 x User Manual
