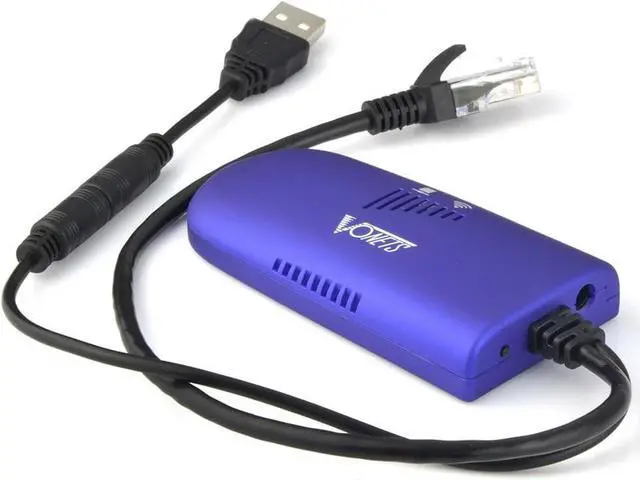

VONETS VAP11G-300 WiFi Bridge 2.4GHz WiFi to Ethernet Convert/WiFi Repeater/Point to Point with RJ45 Male DC/USB Powered for PLC IP Camera Printer Medical Devices Network Devices

2.4GH z WiFi Bridge/RepeaterIndustrial 2.4GH z Mini WiFi Bridge/Repeater can achieve WiFi to Wired or Wired to WiFi functionEthernet to WiFi or WiFi to Ethernet convert);

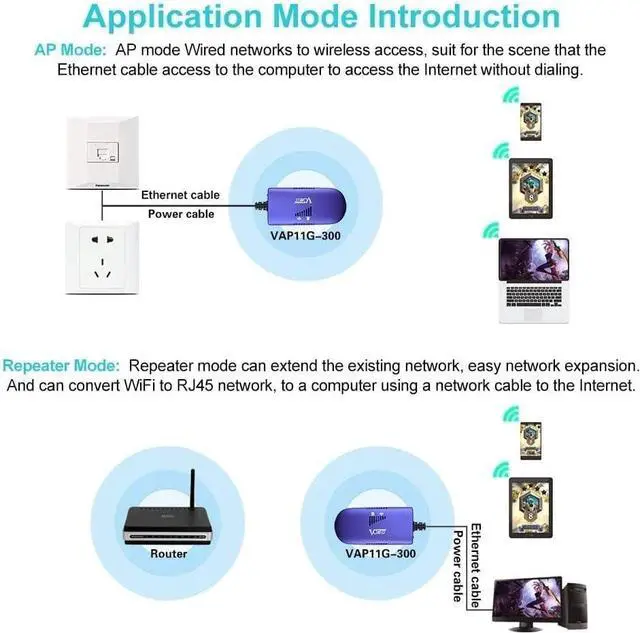

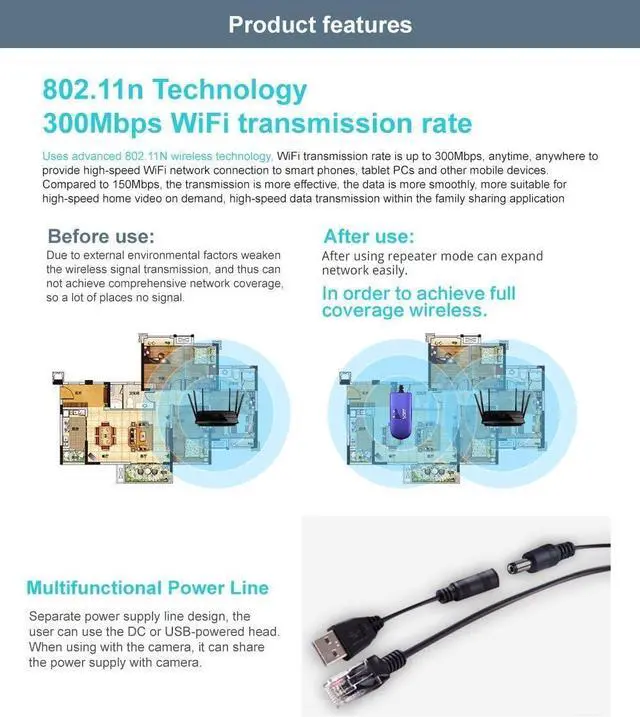

WiFi rate: 300Mbps; Support WiFi 802.11 b/g/n. Support Multiple application1. WiFi repeater 2. WiFi bridge ( IP layer or MAC layer transparent transmission) 3. WiFi-AP hotspots. Realize WiFi smart bridge function WiFi to wired wired to WiFi smart exchange. Point-to-Point TransmissionMaximum can be up to 100 meters when without obstacles and small data less than 50 meters when used for video transmission 2 X 1.5 dBi internal antennas. It's a good partner for monitoring electronic scales DVR IP camera medical devices IoT devices video transmission industrial PLC PS3 network Printer robot doll machine and more network applications. Configuration ParametersSupport wide voltage DC 5V-15V(Typical 5V/1A ripple less than 100mV) the average power consumption is less than 2.5W. Equipped with a 30cm power cable one male DC port one male USB port one female DC port of the parallel connection and one 10/100Mbps adaptive Ethernet port. IP/MAC Layer TransparentSupport IP layer transparent transmission and MAC layer transparent transmission in two bridge modes IP layer transparent transmission (factory default) which can meet most of the bridge applications; MAC layer transparent transmission which can transparent transmission the MAC layer (link layer) and above of all data including IP layer data (such as Cisco AP Hikvision surveillance system).

Note for
Users: When the VONETS Bridge is connected to an external network its IP address will undergo a change. To access the configuration interface we recommend utilizing the dedicated configuration domain name: vonets. cfg. Alternatively you can obtain the device's current IP address by entering the command ping vonets. cfg in the Windows Command Prompt window and then use this IP address to log in to the configuration page. This product does not include a power adapter
