JAENFONG 4-IN-1 Bluetooth 5.0 Audio Receiver Transmitter AUX RCA 3.5MM USB Jack Stereo Wireless Adapters Dongle With Mic For Car TV PC

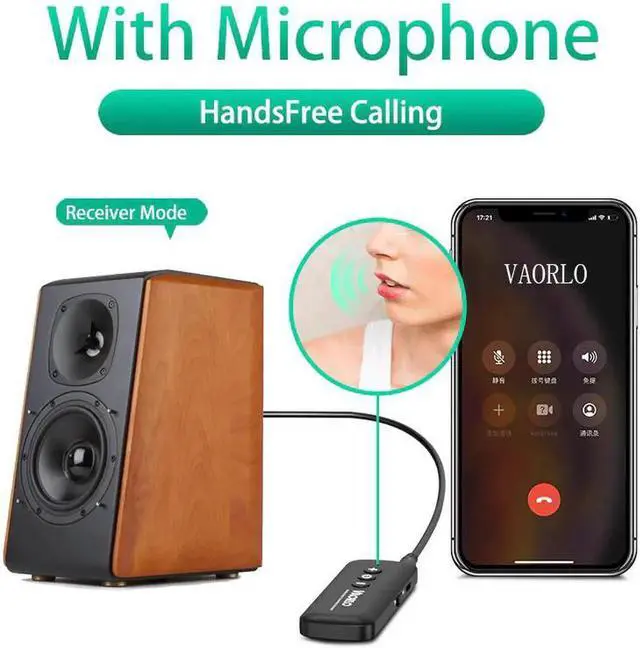

Tips: ZF360B With Microphone, Support Handsfree Calling When RX Mode. (TX Mode Don't Support)

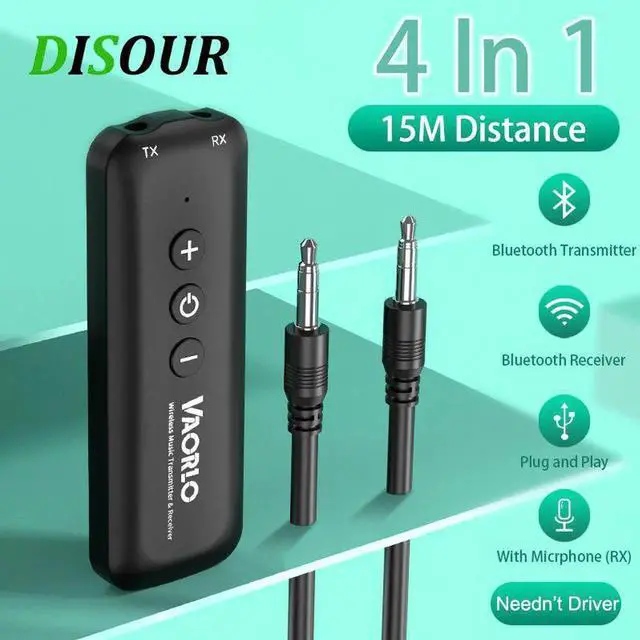

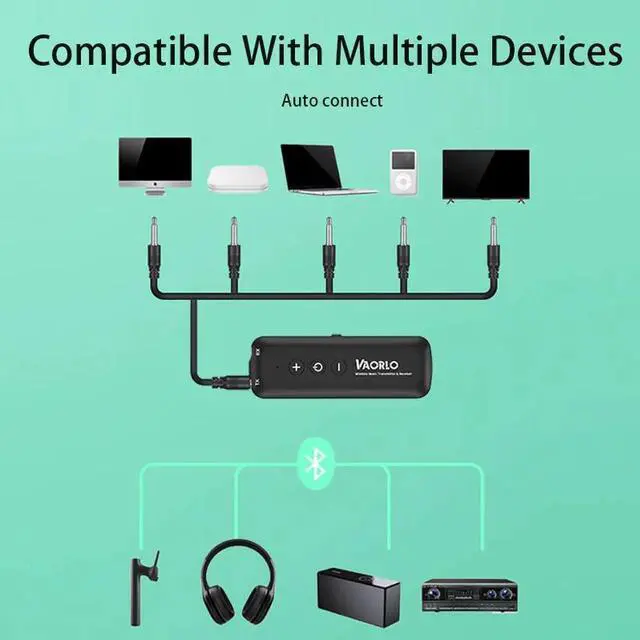

ZF-360B 4-IN-1 Bluetooth Audio Transmitter Receiver: ZF-360B is a Bluetooth transceiver developed with the latest Bluetooth version 5.0. This product can be used as a Bluetooth audio transmitter to wirelessly transmit the sound of TV and other audio sources to Bluetooth headsets or Bluetooth speakers (on computers and Android systems). Under, support the direct transmission of audio with data lines, without the need to plug 3.5 mm audio cable). It can also be used as a Bluetooth audio receiver to instantly turn a wired speaker into a Bluetooth speaker, freeing you from the shackles of cable and enjoying wireless music.

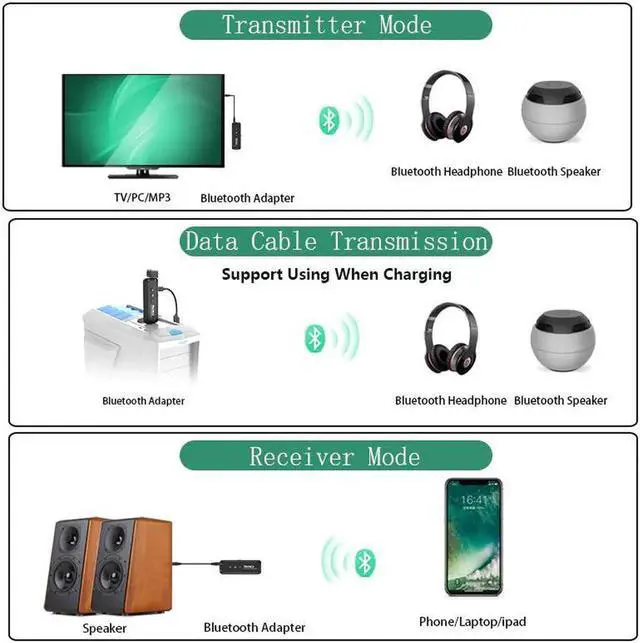

User Manual(4-IN-1Mode): 1) Transmitter mode

a) Connect the audio interface marked by 'TX' to the audiosource devices (TV, computer, radio, MP3, etc. ) with 3.5 mm audio cable.

b) Turn the toggle switch to 'TX' side, long press the 'Power' button 2 seconds to start up, and the red indicator light will flashes slowly.

c) Turn on the Bluetooth receiving device you want to pair and enter the Bluetooth pairing mode. The adapter will automatically pair with it, and the red indicator light will stay on after the connection.

Note: The '+, '-' and 'Power' buttons are invalid in this mode.

2) PC transmitter mode

a) Connect the USB charging port and the computer USB port with USB data cable.

b) Turn the toggle switch to the 'TX' side, long press the 'Power' button 2 seconds to start up, and the red indicator light will flashes slowly.

in this mode, the '+' '-' button cannot control the volume ofthe computer system. )

3) Receiver mode

Specifications

: Model: ZF-360B

Charging time: 1 hour
