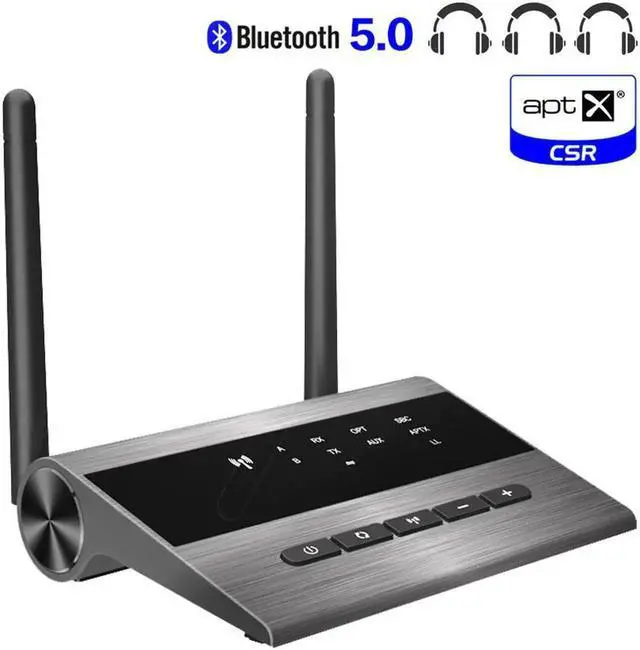

JAENFONG Broadcast CSR8675 80m Aptx HD LL Bluetooth 5.0 Audio Transmitter Receiver SPDIF 3.5mm AUX RCA Wireless Adapter TV PC Car

Notes: it will be support 3pcs or more if your device have broadcast function, it will be only 2pcs bluetooth device if no broadcast function

Specification:

Bluetooth version: Bluetooth V 5.0

Bluetooth frequently: 2.4GH z- 2.480GH z

RX mode transmission range: 20-40 meters

TX mode transmission range: 30-60 meters

TX mode Protocol: A2DP AVRCP SBC APTX APTX-LL

Bluetooth transmitter Protocol: A2DP SBC APTX APTX-LL

Output audio format: Stereo analog audio, optical fiber digital audio

Input audio format:: Stereo analog audio, optical fiber digital audio

RX mode working Current: Around 70-90mA

TX mode working Current: Around 60-220mA

Bypass mode working Current: Around 50mA

Power off Current: Around 32mA

Standby mode working Current: Around 32mA

Input Power: DC+5V

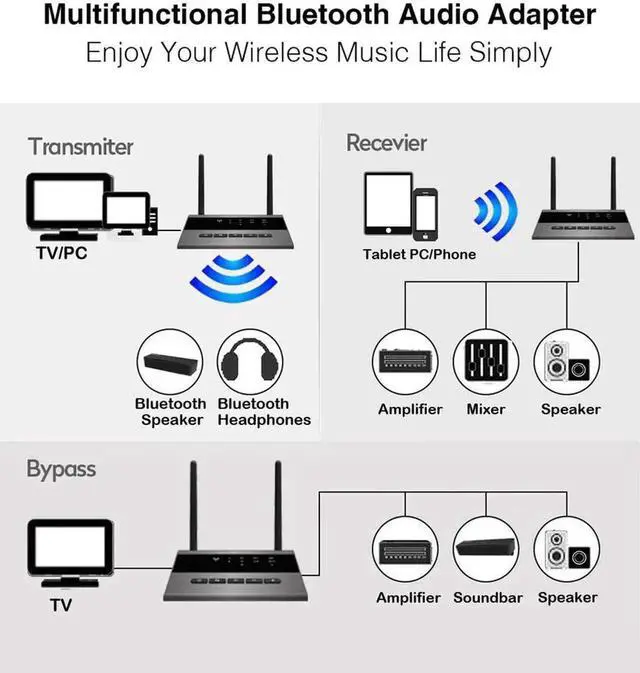

Receiver/Transmitter/Bypass switch: TX-Bluetooth transmitter mode; RX-Bluetooth receiver mode; Bypass-Audio pass through mode without bluetooth; Power on state, change RX/bypass/TX switch button location, it will automatically switch to the Corresponding mode.

Optical/ AUX stereo audio switch: Receiver
mode: Connect the 3.5 mm audio cable to AUX stereo output port, BT5805 will switch to analog audio automatically; if the stereo output port is not connected, will default optical fiber mode

Transmitter mode / Bypass mode: Connect the 3.5 mm audio cable to AUX stereo input port, BT5805 will switch to analog audio automatically; if the stereo output port is not connected, will default optical fiber mode

Bluetooth Broadcasting Mode On/Off:

Note: Bluetooth broadcast transmitting and receiving cannot be turned on at the same time.

Receiver mode

Package contents:
