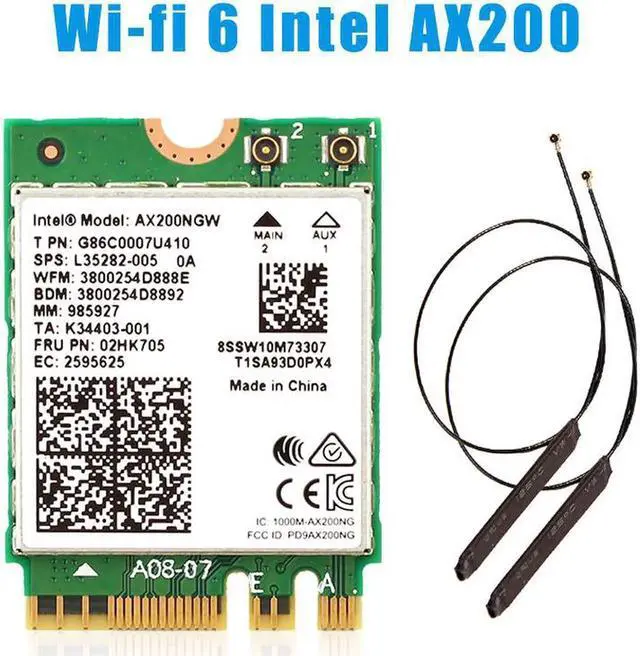

JAENFONG WiFi 6 Dual Band 3000Mbps Wireless Card For Intel AX200 M.2 Bluetooth 5.0 2.4G/5Ghz 802.11ac/ax AX200NGW Wi-fi Adapter Antenna

Wifi-6 Intel AX200 Wireless-AC AX200 Ultra Wi-Fi, Ultra Features, Ultra Connected Experience. The Wi-Fi 6 AX200 supports 802.11 ax via 2x2 MU-MIMO antennas over the 2.4 GHz and 5 GHz bands. AX200 supports Bluetooth 5.0. The maximum throughput supported by the Wi-Fi 6 AX200 is a speedy 2.4 Gbps (160Mhz). The AX200NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.

Description:

Model: AX200NGW

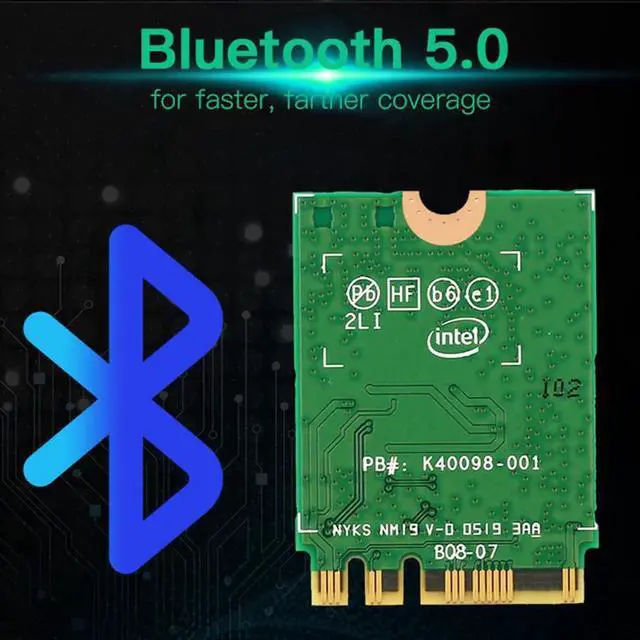

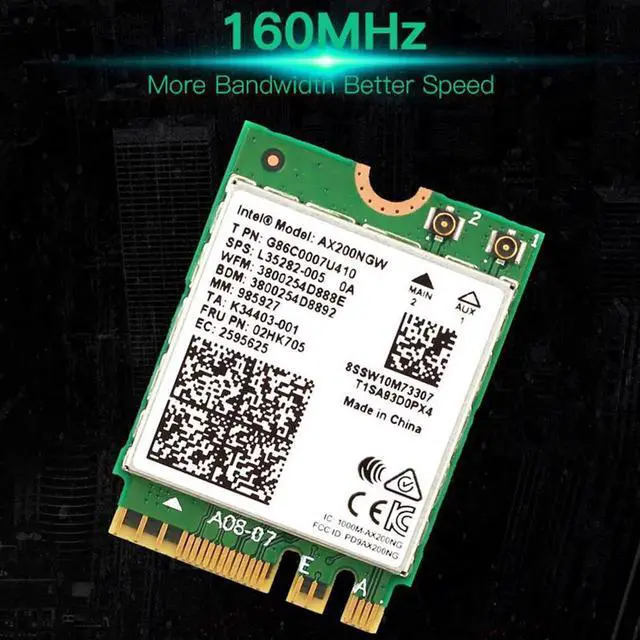

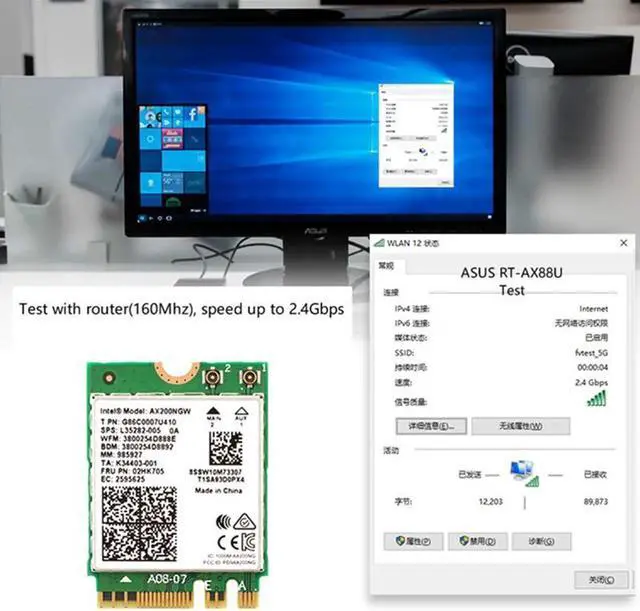

Dual band: 2.4G hz / 5Ghz (160Mhz) Speed up to 2.4G bps (The router must on 160Mhz); Speed of 2.4 Gbps on the 5GHz (160 MHz) band and 574Mbps using 2.4GH z band ( 802.11 ax in both). With Bluetooth 5.0,

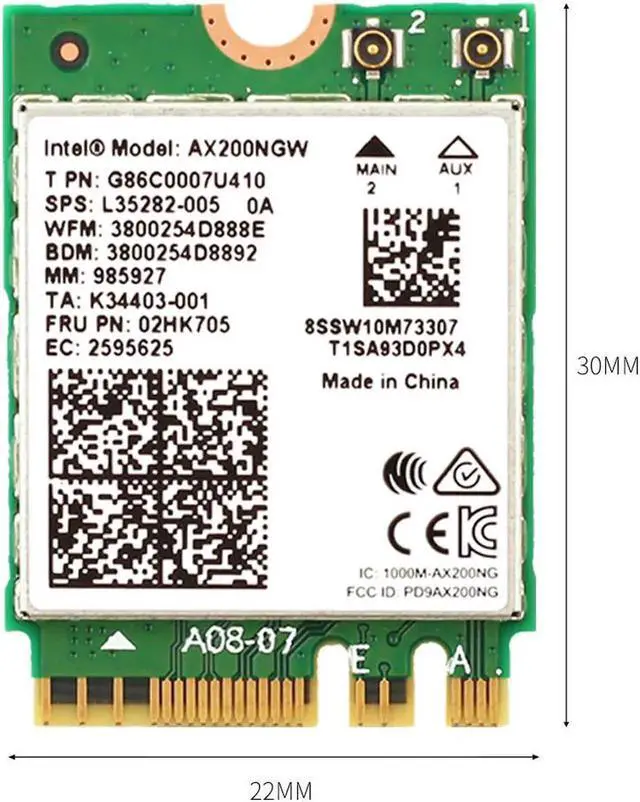

Support MU-MIMO ?Interface: NGFF(M. 2):See Image, 22*30MM

Supported Operating Systems: Only work on Microsoft Windows 10* 64bit, Note: Not support Windows 7/8/ 8.1 The module supports MU-MIMO, 2x2 TX/RX channels.

Compatible With: Support almost laptop with NGFF(M. 2) 2230 slot; Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc (Do not include lenovo and HP, if it can use after rewrite the whitelist ).
