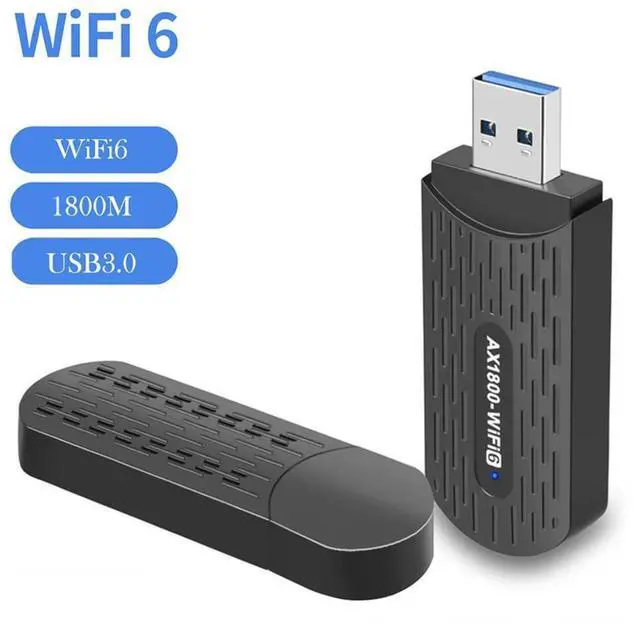

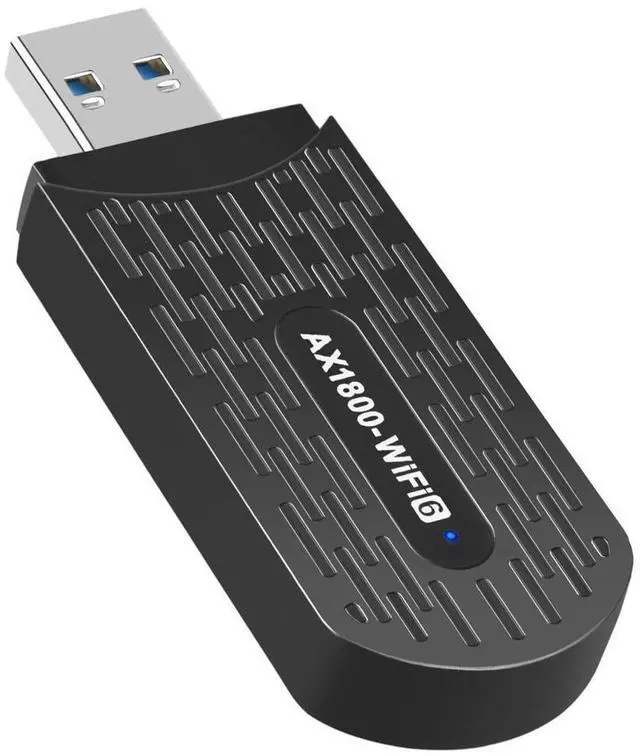

AX1800Mbps Driver-Free WiFi6 USB Wireless Network Card USB3.0 Dual Band High Speed 5G WiFi Dongle Receiver for Windows 7 / 10 /11 eokCXOY

This is an 802.11AX 1800Mbps 2.4GHz & 5.8GHz wireless network card, using the new Realtek RTL8832 high-performance chip, and using the USB3.0 interface, WiFi transmission is more efficient and energy-saving. Support desktop computers, laptops and other devices.

11AX dual-band wireless USB network card is suitable for wireless connection of desktop PCs and other devices, and can provide a convenient and fast wireless Internet access method. The network card supports automatic detection and can automatically adjust the speed.

Compliant with IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1ac, IEEE 802.11ax;

The wireless transmission rate of 2.4G frequency band can be as high as 574Mbps; 5.8G frequency band can be as high as 1201Mbps.KEY_TAB

Support WPA, WPA2, WPA3 advanced security mechanisms to provide security for wireless network connections.

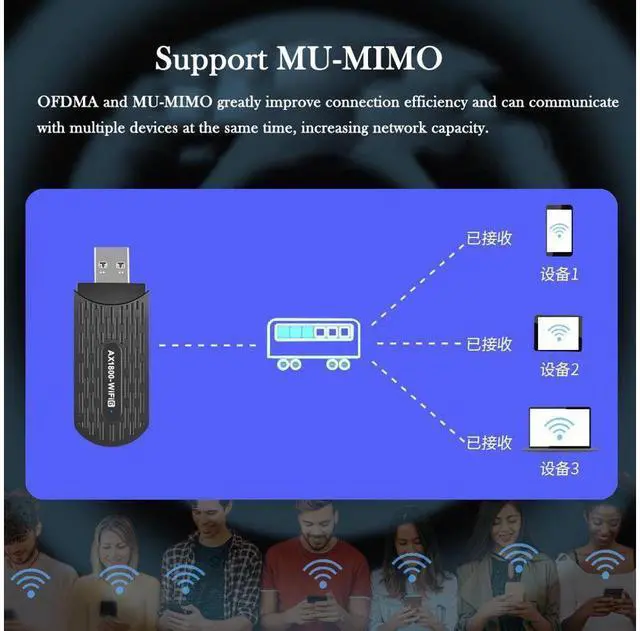

Support OFDMA and MU-MIMO greatly improves connection efficiency, can communicate with multiple devices at the same time, and improve network capacity

Product selling point:

1.New WiFi6, 802.11ax protocol

2.1800Mbps high-speed network transmission

3.2.4G & 5.8G dual-band optional

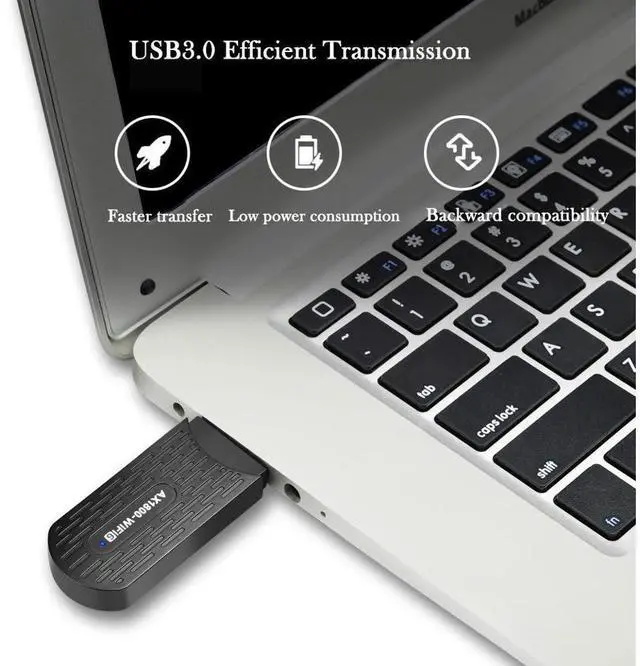

4.High-speed USB3.0 interface

5.Support WPA3 encryption format

6.Compatible with popular operating systems in the market

7.Support WiFi reception, AP hotspot transmission

Specifications

Main Chip:RTL8832AU

Interface:USB 3.0

Protocols and Standards:IEEE802.11/b/g & 802.11n & 802.11ac ,802.11ax(2T2R mode)

Working Bands:2.412GHz2.4835GHz,5.15 GHz5.825 GHz:(usage condition is depended on different country's supervision)

Antenna:2dBi dual band antenna

Encryption Pattern:64/128 bits WEP, WPA/WPA2, WPA3/WPA2-PSK (TKIP/AES)

Transmitting Power 11n: Up to 574MbpsKEY_TAB AC: Up to 1201Mbps

Working Voltage:5.0VDC± 5%

Receiving Sensitivity

802.11a:-66+/-1dBm

802.11b:-80+/-1dBm

802.11g:-73+/-1dBm

802.11n:-70+/-1dBm(HT20);-64+/-1dBm(HT40)

802.11ac/ax:-80+/-1dBm(MCS0);-56+/-1dBm(MCS9),(AC80)

Power Consumption

RX & TX condition:220mA(max)

TX condition:220mA(max)

RX condition:180mA(max)
