AJMRTC FLink N200AKSR WiFiBluetooth COMBO Module, Aike Micro AIC8800D Chip 1T1R WiFi6 SDIO2.0 + BLE5.0 UART Interface, Compact 12×12mm Wireless Board for IPC STB Smart Home IoT Development
- 1. Integrated WiFiBluetooth combo wireless module builtin Aike Micro AIC8800D chip, adopts 1T1R RF architecture, supports WiFi6 802.11 b/g/n/ac/ax together with Bluetooth 5.0 BLE dualfunction wireless connection.
- 2. WiFi communicates via SDIO2.0 host interface, Bluetooth uses independent UART port; maximum PHY throughput TX 286.8Mbps, RX 229.4Mbps under 40MHz bandwidth for highspeed wireless data transmission.
- 3. Miniature 12×12mm compact footprint, 3.3V DC power supply, wide working temperature2080, stable RF performance for continuousrunning embedded and industrial smart hardware.
- 4. Supports STA, SoftAP, WiFiDirect concurrent working modes, implements WiFi6 TWT lowpower mechanism; compatible with Android, Linux and Windows multiplatform systems for secondary development.
- 5. RoHS compliant externalantennarequired module, widely used for network cameras, settop boxes, smart speakers, POS terminals and various IoT wirelessnetworking prototype projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

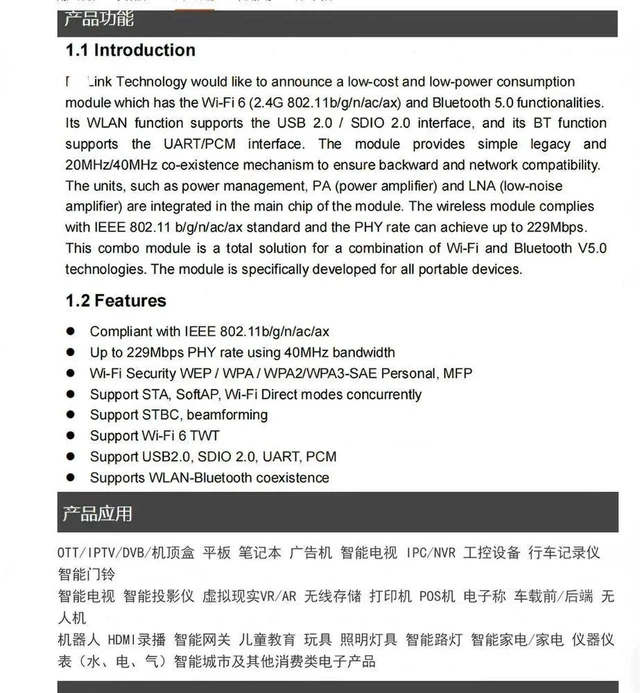

AJMRTC FLink N200AKSR is a highly integrated WiFi6 plus Bluetooth 5.0 combo wireless module based on Aike Micro AIC8800D chip. It follows 1T1R singletransmit singlereceive radio design, supporting 2.4GHz & 5GHz dualband 802.11ax WiFi6 protocol and BLE5.0 bluetooth function.
WiFi signal transmits through SDIO2.0 interface, while Bluetooth signal uses separate UART interface. It supports multiple network working modes and WiFi6 TWT powersaving technology to reduce power consumption for batterypowered devices. Compact 12×12 mm size simplifies SMT mounting on embedded mainboards. Operating temperature covers20 to 80 to adapt household and mildindustrial environment.
Suitable for IPC cameras, TV settop boxes, smart home equipment, POS terminals and IoT product development. External antenna is mandatory. Host mainboard and antenna are not included in package. Proper antenna matching is required to achieve rated wireless performance.

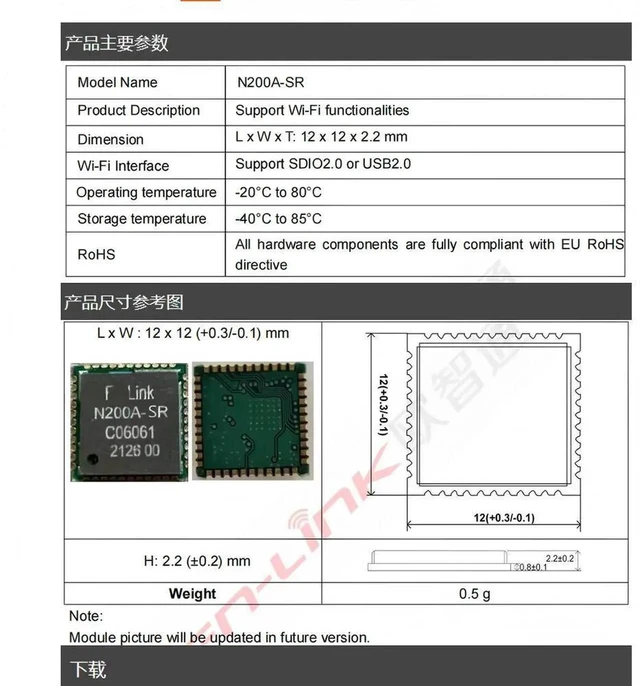

Specifications- Brand: AJMRTC
- Model: FLink N200AKSR
- Chipset: Aike Micro AIC8800D
- RF Configuration: 1T1R
- Wireless Standard: IEEE 802.11 b/g/n/ac/ax WiFi6, Bluetooth 5.0 BLE
- Frequency: 2.4GHz + 5GHz DualBand
- Max PHY Rate: TX 286.8 Mbps, RX 229.4 Mbps
- Host Interface: WiFi: SDIO2.0; Bluetooth: UART
- Supply Voltage: DC 3.3V
- Dimension: 12 × 12 mm
- Operating Temperature: 20 ~ 80
- Supported OS: Android, Linux, Windows
- Certification: RoHS
- Application: IPC, STB, Smart Speaker, POS, IoT Embedded Development
- Package Content: 1 × N200AKSR Wireless COMBO Module
- Note: Host board and antenna NOT included; external antenna is required for normal operation
