AJMRTC Ouzhiton FLink 5261BSR Wireless Combo Module, Mediatek MT7661RSN DualBand WiFi Bluetooth 5.0 Module with 2T2R MIMO, SDIO 3.0 Interface for Android Linux Embedded Devices
- Builton Mediatek MT7661RSN chip with 2T2R MIMO dualband WiFi and Bluetooth 5.0 combo function
- SDIO 3.0 host interface for highspeed data transmission in embedded hardware projects
- Supports IEEE 802.11 a/b/g/n/ac WiFi standard, peak throughput up to 866 Mbps
- Works with Android and Linux systems for settopbox, IoT and smartdevice integration
- Compact SMD module requires external antennas for optimal RF wireless performance
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

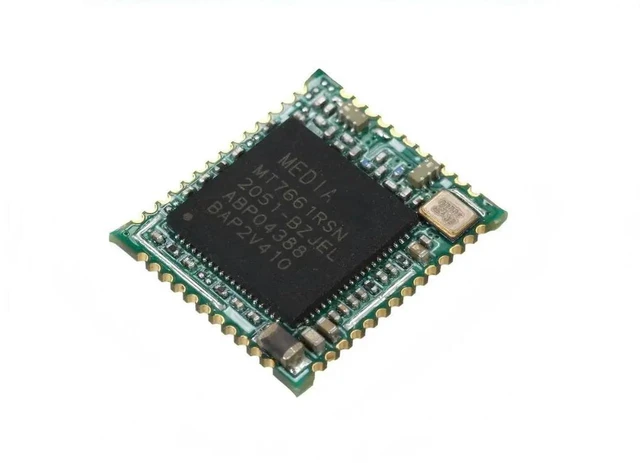

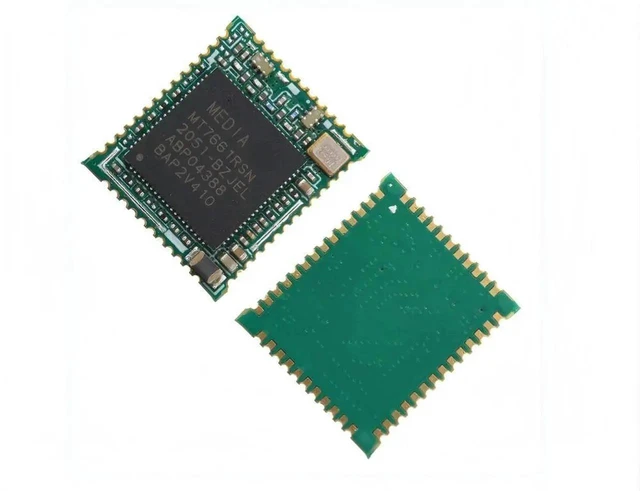

AJMRTC FLink 5261BSR wireless combo module is a highintegrated embedded wireless unit powered by Mediatek MT7661RSN chipset. It adopts 2T2R MIMO radio architecture to deliver stable dualband 2.4GHz & 5GHz WiFi 5 performance together with Bluetooth 5.0 / BLE5.0 peripheral connection capability. WiFi and Bluetooth share SDIO 3.0 host interface, delivering maximum 866Mbps wireless throughput for data transfer and media streaming. This SMDformfactor module is widely applied for OTT settop boxes, smart IoT hardware and other embedded devices running Android or Linux operating systems. External MHF4type antennas are mandatory for full RF performance. Proper driver support must be confirmed before hardware soldering and integration. Operating voltage is fixed at 3.3V, do not feed other voltage levels to avoid module burnout.
Brand: AJMRTC
Model: 5261BSR
Chipset: Mediatek MT7661RSN
RF Configuration: 2T2R MIMO
WiFi Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth Version: Bluetooth 5.0, BLE5.0
Host Interface: SDIO 3.0
Max Throughput: 866 Mbps
Operating Voltage: 3.3V
Supported OS: Android, Linux
Dimension: 15.0 × 13.0 × 1.65mm
Antenna Requirement: External Antennas Required
Application: OTT SetTopBox, IoT, Embedded Smart Hardware
Operating Temperature: -10°C ~ 70°C
Certification: RoHS, REACH
Note: Verify driver compatibility before integration
