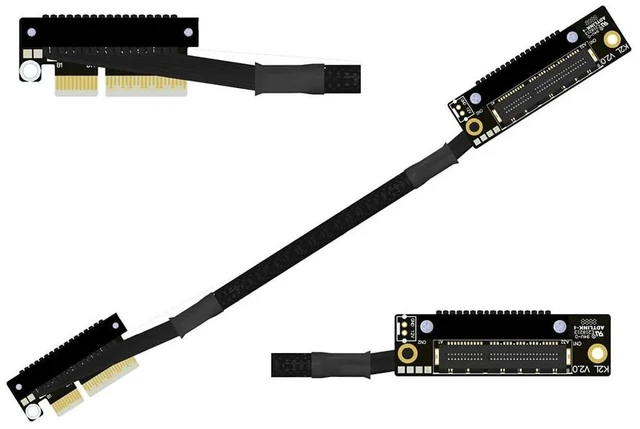

K22U PCIe 5.0 x4 Extension Cable Dual Reverse Side-Angled, Gen5 128Gbps High-Speed for Network Card SSD USB Card (30CM,K22UL-TR)

PCIe 5.0 x4 Gen5 High-Speed
Extension Cable: Supports PCIe 5.0 x4 Gen5 with up to 128Gbps bandwidth. High-speed low-loss soft ribbon cable designed for PCIe signal extension, network cards, SSD cards, USB cards, and other PCIe x4 add-in cards.; Broad Compatibility for x4 Cards & x4
Slots: Compatible with network cards, capture cards, USB cards, SSD cards, and other PCIe cards. As long as the PCIe card is x4 and the motherboard slot is an x4 interface, it can be supported.; Multiple Left/Right Exit &

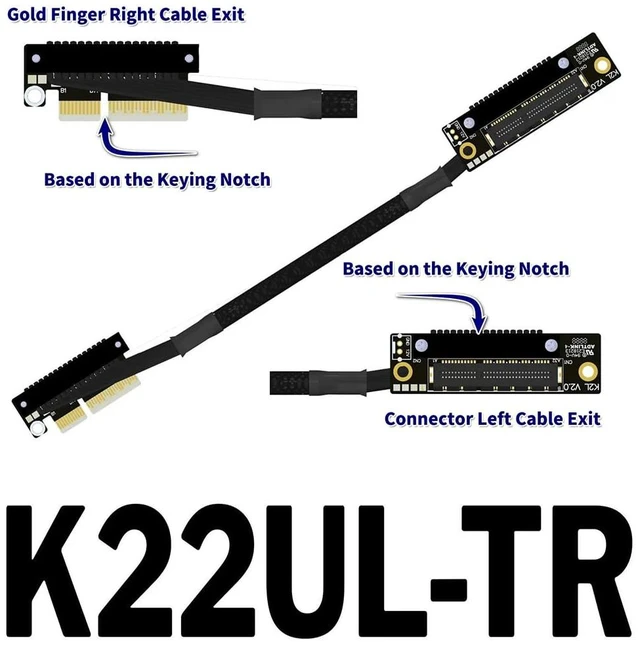

Connector Angle Options: Available in left exit, right exit, dual left exit, and dual right exit configurations, with 90-degree, 180-degree, and 270-degree connector options. Models include K22UF-TL, K22UF-TR, K22UL-TL, K22UL-TR, K22UR-TL, K22UR-TR, K22UF-LL, K22UF-RR, K22UL-LL, K22UL-RR, K22UR-LL, and K22UR-RR.;
Premium PCB Construction: PCB uses high-TG material, 1oz thickened copper, and immersion gold fingers. Solder joints are protected by 2mm aluminum alloy gaskets and secured with screws for a rugged, pull-resistant, anti-interference connection. The cable can be bent and folded without affecting use.;
Installation Notes: For best performance, install the riser cable in the PCIe slot closest to the CPU. Clean gold fingers and slot contacts if needed. Devices over 3 years old are not recommended for riser cable use; if the device is aging or signal quality is poor, please operate at a lower speed.
