What types of ports does the ZyXEL XGS2220-54FP switch have for high-speed connectivity?

The ZyXEL XGS2220-54FP switch includes four 10G SFP+ uplink ports and two additional 10G Multi-Gigabit RJ-45 ports.

What is the power budget for PoE on the ZyXEL XGS2220-54FP switch?

The PoE budget for the ZyXEL XGS2220-54FP switch is 960 W.

$1,727^.01

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by NothingButSavings

Top Rated

4.5 (8,981 seller ratings)

Shipped by NothingButSavings

Best Sellers

Newegg

$1,745^.99
+ FREE SHIPPING

Hot Deals 4 Less

Hot Seller

4 (3,704 total ratings)

$1,924^.31
+ FREE SHIPPING

Meet Your Seller

NothingButSavings

See Seller Store

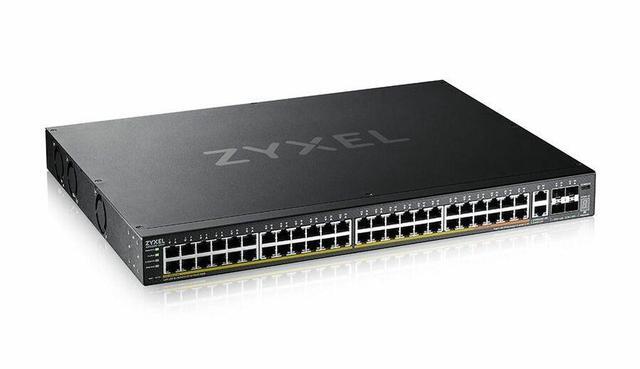

Main image of ZyXEL XGS2220-54FP 48-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch, 40 PoE+ / 10 PoE++ Ports at 960W with 4x SFP+ 10G Uplinks and 2x 10G Ethernet Ports

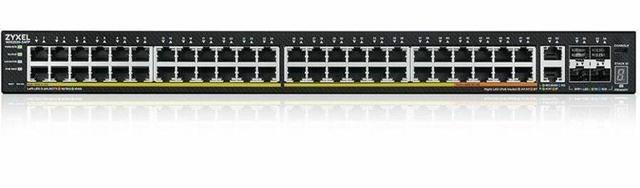

Alt view image 2 of 4 - ZyXEL XGS2220-54FP 48-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch, 40 PoE+ / 10 PoE++ Ports at 960W with 4x SFP+ 10G Uplinks and 2x 10G Ethernet Ports

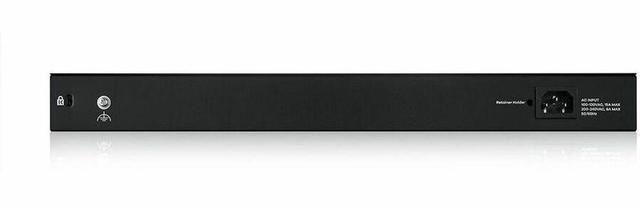

Alt view image 3 of 4 - ZyXEL XGS2220-54FP 48-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch, 40 PoE+ / 10 PoE++ Ports at 960W with 4x SFP+ 10G Uplinks and 2x 10G Ethernet Ports

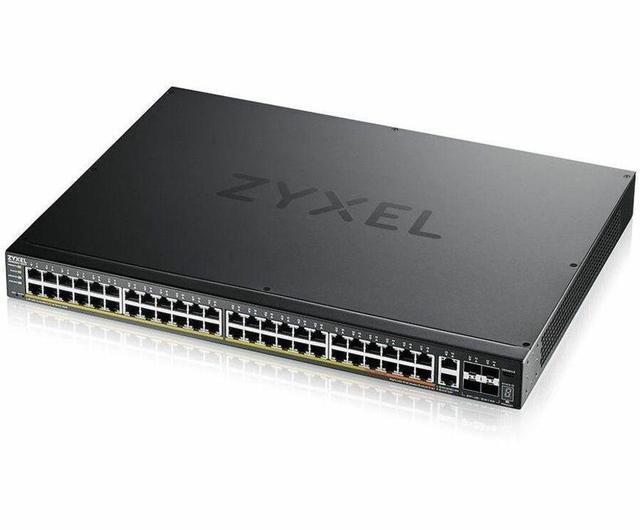

Alt view image 4 of 4 - ZyXEL XGS2220-54FP 48-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch, 40 PoE+ / 10 PoE++ Ports at 960W with 4x SFP+ 10G Uplinks and 2x 10G Ethernet Ports

Shop All ZyXEL Products | Visit NothingButSavings Store

ZyXEL XGS2220-54FP 48-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch, 40 PoE+ / 10 PoE++ Ports at 960W with 4x SFP+ 10G Uplinks and 2x 10G Ethernet Ports

Be the first to review this product...

The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity
Benefits | Sufficient and Flexible 10G Support - Ideal for Converged Networking Applications: The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection
Dedicated Networked AV Mode: The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

XGS2220-54FP - 48-PORT GIGABIT POE 960W L2 MANAGED + 4 SFP+ 10G + 2 RJ45 10G (54

Model
Brand	ZyXEL
Part Number	XGS2220-54FP
Switch Type	Manageable

Format & Standards
Format	Rack-mountable
Standards	IEEE 802.11ac IEEE 802.11ax IEEE 802.3z IEEE 802.3ab IEEE 802.3an IEEE 802.3ae IEEE 802.3az IEEE 802.3x IEEE 802.1ab IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1ad
Network Media	Media Type Supported: Optical Fiber, Twisted Pair Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet Network Technology: 100/1000Base-T, 10GBase-X, 10GBase-T

Ports & Interface
Uplink Interface	Total Number of Network Ports: 50.0 Uplink Port: Yes Modular: Yes Network (RJ-45): Yes Port/Expansion Slot Details: 40 x Gigabit Ethernet PoE+ 8 x Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet Expansion Slot 2 x 10 Gigabit Ethernet PoE++
Primary Ports	Total Number of Expansion Slots: 4.0 Expansion Slot Type: SFP+ Number of SFP+ Slots: 4

Details
Layer	Layer Supported: 3

Power Supply
Power	PoE (RJ-45) Port: Yes PoE Budget: 960 W Input Voltage: 120 V AC, 230 V AC Frequency: 50 Hz, 60 Hz Power Source: Power Supply, AC Power Consumption: 1161.60 W

Environmental
Certification	Environmentally Friendly: Yes Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Features
Features	Application/Usage: Business Branch Office Campus Hotel IP Camera IP Phone Network

Packaging
Package Contents	48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (960 W) Power Cord Rack Mounting Kit
