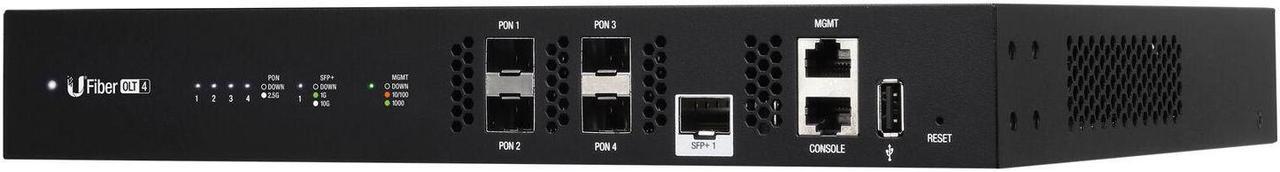

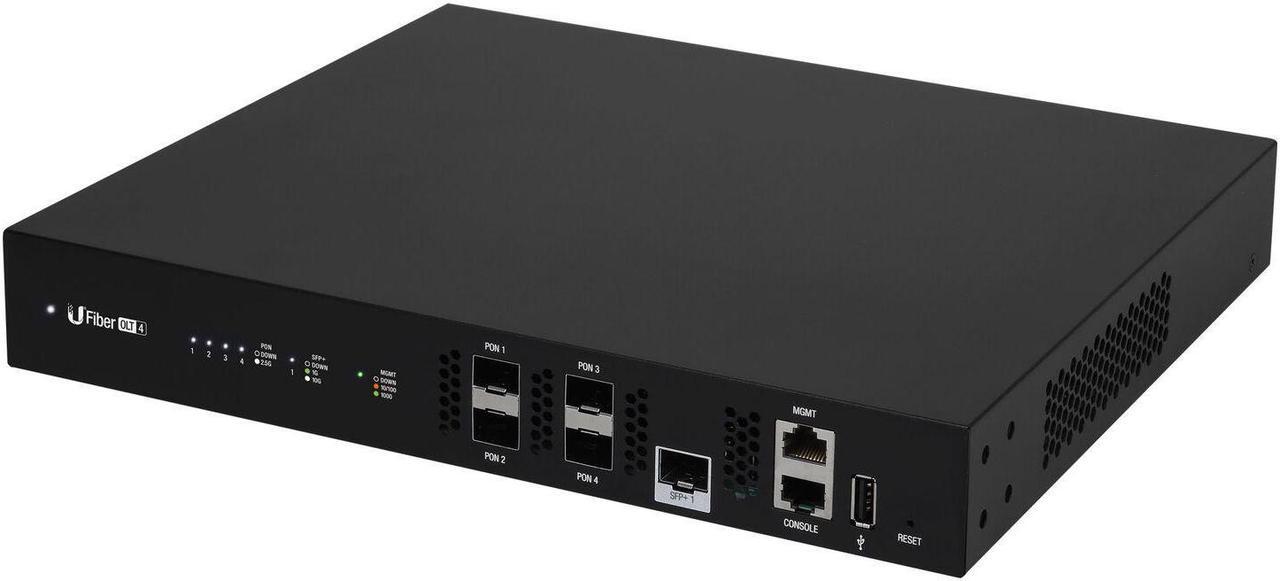

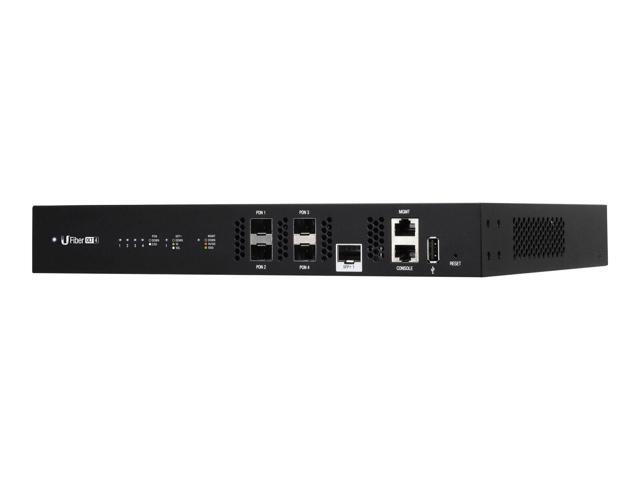

Ubiquiti U Fiber OLT UF-OLT-4 4-Port GPON Optical Line Terminal with 3 GPON / 1
- Ubiquiti UFiber OLT 4 4-Port Optical Line Terminal
- The OLT features four PON ports to connect up to 512 ONUs, and SFP+ port deliver up to 10 Gbps of uplink connectivity.
- With four GPON SFP ports and one SFP+ port, the UF-OLT 4-Port GPON Optical Line Terminal from Ubiquiti Networks offers enhanced connectivity with support for up to 512 concurrent clients. Once configured, this line terminal device supports upstream data transfer rates of up to 2.488 Gb/s and downstream data transfer rates of up to 1.244 Gb/s.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Client and Uplink Connectivity
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"-wide rack.
Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS(Ubiquiti® Network Management System) software.
Dimensions
299.80 x 258.95 x 42.55 mm ( 11.80 x 10.19 x 1.68" )
Weight
With Mount Brackets 2.13 kg ( 4.70 lb)
Networking Interfaces
(4) GPON OLT SFP
(1) 1G/10G SFP+
Concurrent Clients
512 Registered ONUs/ONTs (128 per GPON Port)
Management Interfaces
(1) Ethernet for Out-of-Band Management
(1) RJ45 Serial Console Port
GPON Speeds
2.488 Gbps Upstream (TX)
1.244 Gbps Downstream (RX)
Operating Wavelengths
1490 nm TX
1310 nm RX
Normal Optical Power Range
TX (Class B+): 1.5 dBm to 5 dBm
RX: -28 dBm to -8 dBm
Range
Physical Reach
Logical Reach
Max. Differential Fiber Distance
20 km
60 km
20 km (B+) /40 km (C+)
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC Internal 56W DC
Max. Power Consumption
35W (Excluding SFP Modules)
Operating Mode
OLT 2/3 Ethernet Switch and GPON Core
Advanced QoS
Supports 8 Priority Queues per User Port and Traffic Classification
Processor Specs
MIPS 1004kc, 880 MHz Dual Core
Memory Information
12 MB DDR3, 512 MB NAND
Operating Temperature
-10 to 45° C (14 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"-wide rack.
Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS(Ubiquiti® Network Management System) software.
Dimensions
299.80 x 258.95 x 42.55 mm ( 11.80 x 10.19 x 1.68" )
Weight
With Mount Brackets 2.13 kg ( 4.70 lb)
Networking Interfaces
(4) GPON OLT SFP
(1) 1G/10G SFP+
Concurrent Clients
512 Registered ONUs/ONTs (128 per GPON Port)
Management Interfaces
(1) Ethernet for Out-of-Band Management
(1) RJ45 Serial Console Port
GPON Speeds
2.488 Gbps Upstream (TX)
1.244 Gbps Downstream (RX)
Operating Wavelengths
1490 nm TX
1310 nm RX
Normal Optical Power Range
TX (Class B+): 1.5 dBm to 5 dBm
RX: -28 dBm to -8 dBm
Range
Physical Reach
Logical Reach
Max. Differential Fiber Distance
20 km
60 km
20 km (B+) /40 km (C+)
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC Internal 56W DC
Max. Power Consumption
35W (Excluding SFP Modules)
Operating Mode
OLT 2/3 Ethernet Switch and GPON Core
Advanced QoS
Supports 8 Priority Queues per User Port and Traffic Classification
Processor Specs
MIPS 1004kc, 880 MHz Dual Core
Memory Information
12 MB DDR3, 512 MB NAND
Operating Temperature
-10 to 45° C (14 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
