Ubiquiti 10G 6-Port Switch 802.3bt Poe++ Layer Managed 4x100/1000/2.5G/5G/10GBase-T US-XG-6POE
- Networking
- (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
- (2) 1/10G SFP+ Ethernet Ports
- Management
- Ethernet In-Band
- (1) RJ45 Serial Port Out-of-Band
- (1) USB Type C Port Out-of-Band
- Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
- Power Supply: External AC/DC Adapter (Included) or DC Power Source
- Supported Voltage Range: 44 to 57VDC
- Max. Power Consumption (Excluding PoE Output): 40W
- System - Status
- RJ45 Data Ports - PoE; Speed/Link/Activity
- SFP+ Data Ports - Link/Activity
- ESD/EMP Protection: Air: ± 18 kV, Contact: ± 12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
- PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
- Max. 802.3bt Wattage per Port by PSE: 60W
- Voltage Range 802.3af Mode: 44-57V
- Voltage Range 802.3at/bt Mode: 50-57V
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

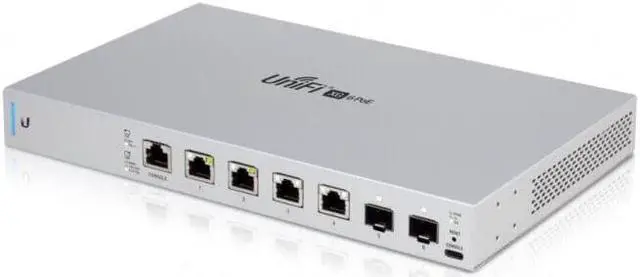

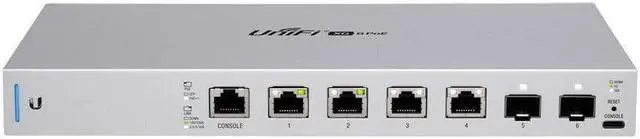

Build and expand your network with the Ubiquiti® UniFi® Switch XG 6POE, model US-XG-6POE. It is a fully managed, 6-port, 10G switch with 802.3 bt PoE++.
For deployment versatility, four 10G RJ45 ports offer 802.3 bt PoE++ for powering devices, and two SFP+ ports are designed for highcapacity fiber uplinks.
Switching Performance
The UniFi Switch XG 6POE offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The switch features a total nonblocking throughput of up to 60 Gbps.
802.3 bt PoE++ Compatibility
The UniFi Switch XG 6POE is compatible with devices requiring 802.3 af or 802.3 at, as well as the following UniFi Access Points (APs), which require 802.3 bt power (e. g. UAP-AC-SHD, UAP-XG, UWB-XG, UWB-XG-BK)
Power Redundancy
The UniFi Switch XG 6POE can be powered by a DC power source or the included power adapter. The optional DC input can be used as a stand-alone or redundant DC power source (not included).
802.3 bt PoE++
The UniFi Switch XG 6POE offers 802.3 bt PoE++ on all four RJ45 ports up to 60W per port for devices requiring additional power, such as the UniFi XG APs.
Power Options
The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).
Mounting Versatility
The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
Specification:
Dimensions: 165 x 268.1 x 31.8 mm ( 6.50 x 10.56 x 1.25" )
Weight: 1.3 kg ( 2.87 lb)
Build and expand your network with the Ubiquiti® UniFi® Switch XG 6POE, model US-XG-6POE. It is a fully managed, 6-port, 10G switch with 802.3 bt PoE++.
For deployment versatility, four 10G RJ45 ports offer 802.3 bt PoE++ for powering devices, and two SFP+ ports are designed for highcapacity fiber uplinks.
Switching Performance
The UniFi Switch XG 6POE offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The switch features a total nonblocking throughput of up to 60 Gbps.
802.3 bt PoE++ Compatibility
The UniFi Switch XG 6POE is compatible with devices requiring 802.3 af or 802.3 at, as well as the following UniFi Access Points (APs), which require 802.3 bt power (e. g. UAP-AC-SHD, UAP-XG, UWB-XG, UWB-XG-BK)
Power Redundancy
The UniFi Switch XG 6POE can be powered by a DC power source or the included power adapter. The optional DC input can be used as a stand-alone or redundant DC power source (not included).
802.3 bt PoE++
The UniFi Switch XG 6POE offers 802.3 bt PoE++ on all four RJ45 ports up to 60W per port for devices requiring additional power, such as the UniFi XG APs.
Power Options
The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).
Mounting Versatility
The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
Specification:
Dimensions: 165 x 268.1 x 31.8 mm ( 6.50 x 10.56 x 1.25" )
Weight: 1.3 kg ( 2.87 lb)
