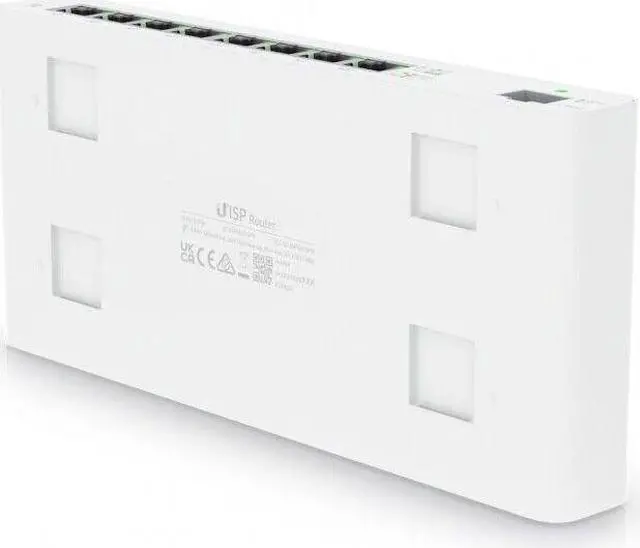

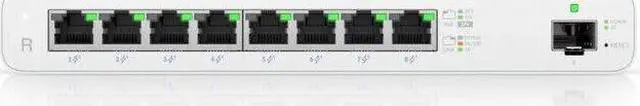

Ubiquiti UISP-R Gigabit PoE router for MicroPoP applications
- Ideal for wireless ISP (WISP) deployments, the UISP® Router is a fanless PoE router featuring (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Router provides a cost-effective routing solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Router delivers substantial power to every radio in your service network. The UISP Router is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
- (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1G SFP port
- 110W PoE supply when powered with the included AC/DC adapter
- Fanless, thermal cooling for silent operation
- Wall-mountable (kit included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Mechanical
Dimensions 210.4 x 95 x 29 mm ( 8.28 x 3.74 x 1.14" )
Weight 600 g ( 1.32 lb)
Enclosure material Polycarbonate
Hardware
Networking interface (8) 10/1001000 MbE RJ45 ports
(1) 1G SFP port
Management interface Ethernet in-band
Bluetooth BLE
Processor Dual-core 880 MHz, MIPS1004Kc
Memory 512 MB DDR3
Onboard flash storage 512 MB NAND
Power method External AC/DC adapter
Power supply 27VDC, 4.4A power adapter (included)
Supported voltage range 24 - 28VDC
Max. power consumption 10W (excludes PoE output)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
PoE
PoE interface (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port 30W/27VDC
Passive PoE voltage range 27VDC
LEDs
System Status
RJ45 data ports PoE
Speed/link/activity
SFP data port Link/activity
Mechanical
Dimensions 210.4 x 95 x 29 mm ( 8.28 x 3.74 x 1.14" )
Weight 600 g ( 1.32 lb)
Enclosure material Polycarbonate
Hardware
Networking interface (8) 10/1001000 MbE RJ45 ports
(1) 1G SFP port
Management interface Ethernet in-band
Bluetooth BLE
Processor Dual-core 880 MHz, MIPS1004Kc
Memory 512 MB DDR3
Onboard flash storage 512 MB NAND
Power method External AC/DC adapter
Power supply 27VDC, 4.4A power adapter (included)
Supported voltage range 24 - 28VDC
Max. power consumption 10W (excludes PoE output)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
PoE
PoE interface (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port 30W/27VDC
Passive PoE voltage range 27VDC
LEDs
System Status
RJ45 data ports PoE
Speed/link/activity
SFP data port Link/activity
