Ubiquiti Enterprise Campus Aggregation (ECS-Aggregation)

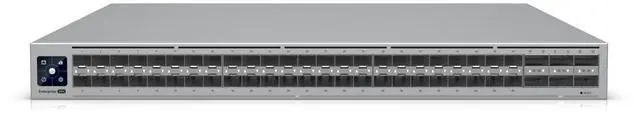

High-Density Ports: (48) 25G SFP28 and (6) 100G QSFP28 ports for massive bandwidth.
Etherlighting: Illuminated ports for easy identification of location, speed, and VLAN.
MC-LAG Support: Multi-Chassis Link Aggregation for enhanced redundancy. *
Layer 3 Capabilities: VRRP automatic failover** and BGP dynamic routing. ***

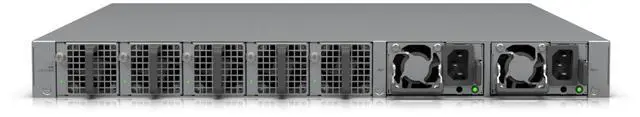

Redundant Design: (2) hot-swappable 550W power modules (1+1) and (5) fan modules (4+1).
Robust Throughput: 1.8 Tbps non-blocking throughput and 3.6 Tbps switching capacity.
Touchscreen Management: 1.3" LCM display for quick status and configuration.
Dimensions 442.4 x 43.7 x 496 mm ( 17.4 x 1.7 x 19.5" )
Weight 9.9 kg ( 21.8 lb)
Enclosure Material SGCC steel
Slide Rails Support 482.6 mm (19") four-post racks with square holes ( 9.5 x 9.5 mm), post depths 650 to 1, 000 mm ( 25.639. 4)
Management Interface Ethernet In-Band
Networking Interface (6) 100/40G QSFP28 ports; (48) 25/10G SFP28 ports (1 Gbps not supported)
Switching Capacity 3.6 Tbps
Forwarding Rate 2.3 Bpps
Power Method (2) Universal input, 100240V AC
Power Supply (2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range 100240V AC
Max. Power Consumption 340W
ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
Services SMB Layer 3 100G/25G Fiber Switch
LCM Display (1) 1.3" touchscreen
Certifications CE, FCC, IC
LEDs (System) Status
Application Requirements UniFi Network: Version 8.5. 6 and later
