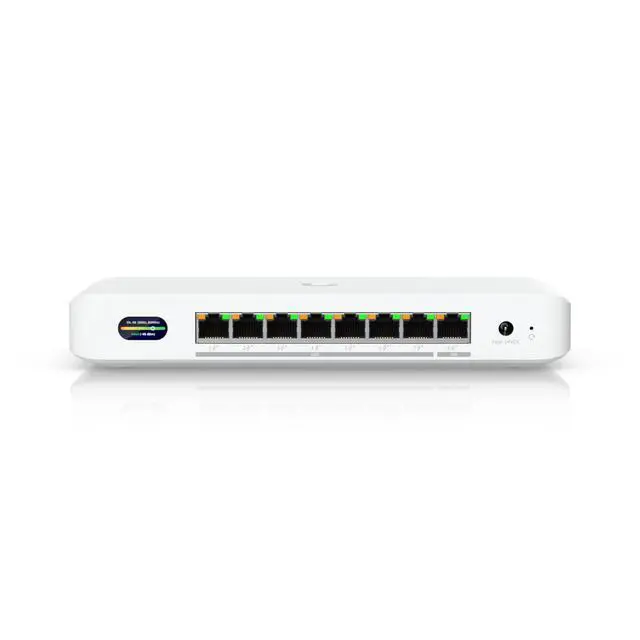

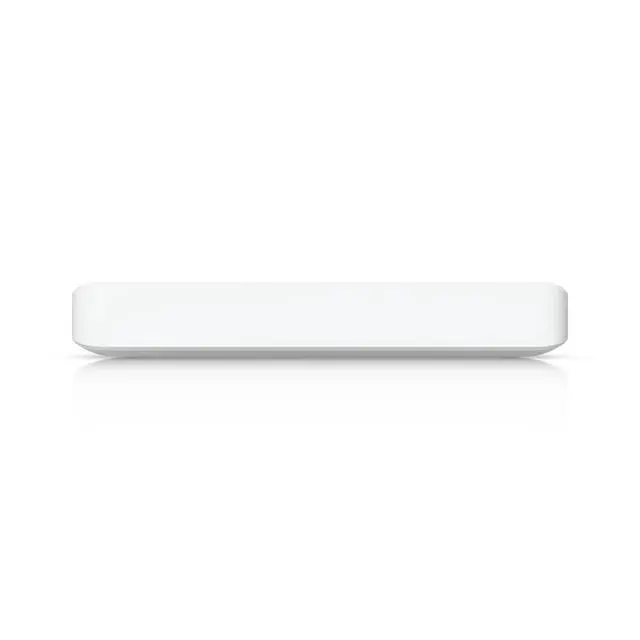

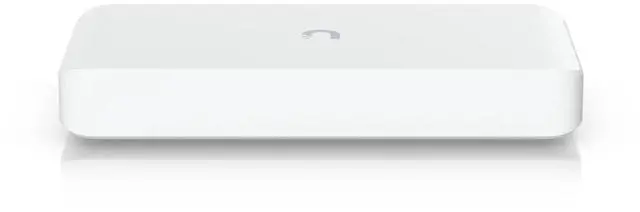

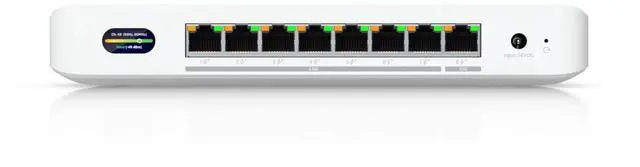

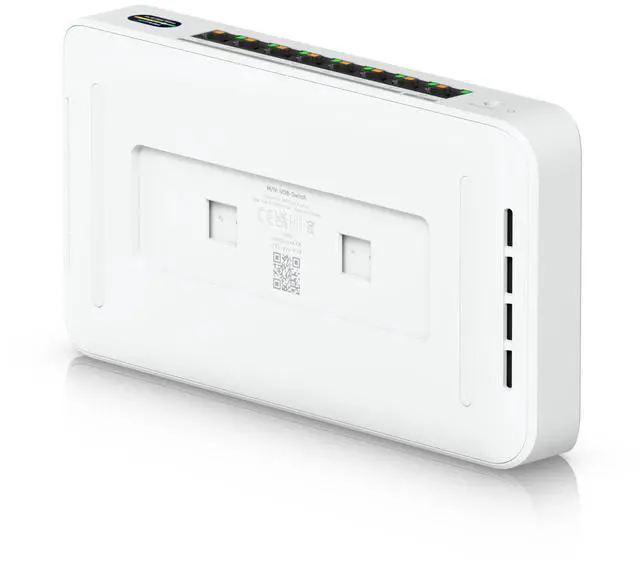

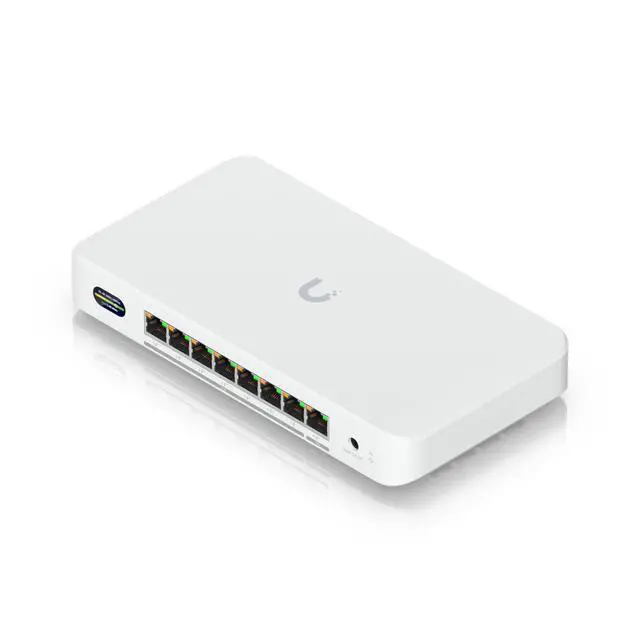

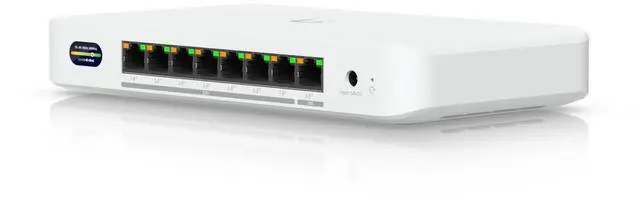

Ubiquiti UniFi Device Bridge Compact Switch - White (UDB-Switch-US)

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

WiFi Standard: WiFi 7
Spatial Streams: 4
Mounting: Desktop, wall
Power Method: DC jack 54V DC / 1.1A
Power Supply: 54V 1.1A Adapter (Included)
MIMO (6 GHz): 2x2
MIMO (5 GHz): 2x2
Max Data Rate (6 GHz): 5.8 Gbps (BW320)
Max Data Rate (5 GHz): 4.3 Gbps (BW240)
Antenna Gain (6 GHz): 8 dBi
Antenna Gain (5 GHz): 8 dBi
Max TX Power (6 GHz): 23 dBm
Max TX Power (5 GHz): 26 dBm
Max Conducted TX Power: 26 dBm (Combined)
WiFi 7 (802.11be): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 to MCS13 NSS1/2 EHT 20/40/80/160/320) and 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 to MCS13 NSS1/2 EHT 20/40/80/160/240)
WiFi 6 (802.11ax): 7.3 Mbps to 2.4 Gbps (MCS0 to MCS11 NSS1/2 HE 20/40/80/160)
WiFi 5 (802.11ac): 6.5 Mbps to 1.7 Gbps (MCS0 to MCS9 NSS1/2 VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 HT 20/40)
802.11a Legacy Rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA3 SAE (Always On)
Max Power Consumption: 25W (Excluding PoE output)
Voltage Range: 42.5 to 57V DC
Networking Ports: 1 × 10GbE RJ45 and 7 × 2.5GbE RJ45
PoE Interface: (8) PoE+ ports
Max. PoE Wattage per Port: 30W
Total PoE Availability: 60W AC adapter input: 35W and 210W AC adapter input: 185W
Antenna: 1x Internal
Management: Ethernet, WiFi
Channel Bandwidth: 20/40/80/160/240/320 MHz
Weight: 548 g device, 563 g with mount
Material: Polycarbonate enclosure and mount
LCM Display: 0.96" Status display
Button: Factory reset
Application Requirements: UniFi Network Version 10.0.156 or later.

Additional Information
First Listed on Newegg	January 08, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
