    Ubiquiti Enterprise Campus 24 PoE - 24-Port Layer 3 Switch (ECS-24-PoE)

    Be the first to review this product...
    • Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Overview
    1. Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
    2. Form Factor: Rack mount (1U)

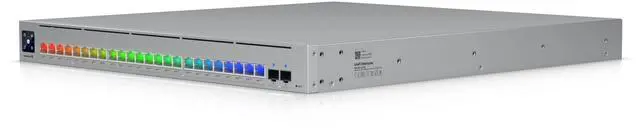

    3. Etherlighting: Yes

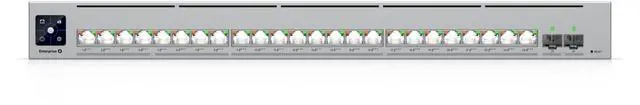

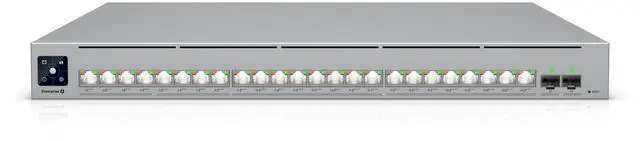

    Port Layout
    1. 2.5 GbE RJ45: 8 (All PoE+++)
    2. 10 GbE RJ45: 16 (All PoE+++)
    3. 25G SFP28: 2


    Performance
    1. Switching Capacity: 460 Gbps
    2. Total Non-Blocking Throughput: 230 Gbps
    3. Forwarding Rate: 342 Mpps
    4. Supported VLANs: 1,000
    5. MAC Address Table Size: 128,000


    Layer 3 Features
    1. DHCP Server (Local Networks): Yes
    2. DHCP Relay: Yes
    3. Inter-VLAN Routing: Yes
    4. Static Routing: Yes


    Layer 2 Features
    1. LACP Port Aggregation: Yes
    2. STP & RSTP: Yes
    3. Advanced IGMP Configuration: Yes
    4. 802.1X Control: Yes
    5. DHCP Snooping & Guarding: Yes
    6. Jumbo Frames: Yes


    Hardware
    1. PoE Ports: 24 (PoE+++)
    2. Max. PoE Wattage per Port: 90W
    3. Max. Power Consumption: 1,50W (Excluding PoE Output), 2,400W (Including PoE Output)

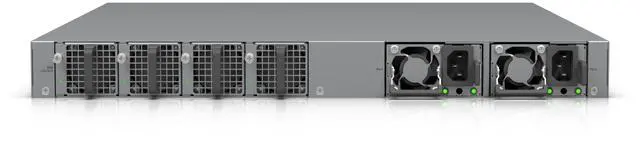

    4. Power Supply: (2) Hot-swappable AC/DC 600W power modules


    Environmental & Compliance
    1. Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
    2. Ambient Operating Humidity: 10 to 90% noncondensing
    3. Certifications: CE, FCC, IC


    Management & Display
    1. LCM Display: 1.3" touchscreen
    2. Management: Ethernet
    3. LEDs: Ethernet, System
    4. ESD/EMP Protection: Air: ± 12kV, contact: ± 12kV
