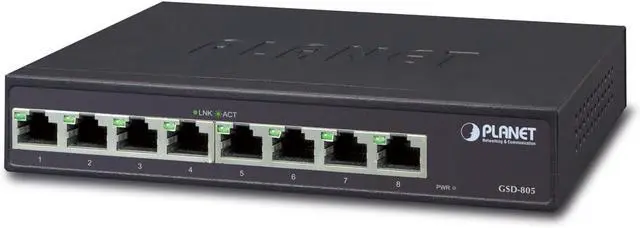

GSD-805 8-Port 1000Base-T Desktop Gigabit Ethernet Switch

Optimal Solution for Gigabit High Performance Networking
Super high speed Ethernet Switch is expected to become the main stream in the market as the increasing popularity of Desktop and Laptop with built-in Gigabit Network Interface, and widely application of Share Database Device and Multimedia Center day by day.. PLANET GSD-805, the 8-Port 10/100/1000Mbps Gigabit Ethernet Switch is introduced to meet the market demand and especially designed with metal compact housing, internal power supply and fanless to bring an easy deployment of Gigabit networks for home, SOHO or SMBs.

Energy Saving

In line with the energy-saving trend worldwide, the GSD-805 uses new engine that provides energy saving up to 40% less without reducing the performance. The GSD-805 incorporates two advanced Green Networking technologies:
Idle Mode Link Down power saving
Intelligent Scales Power based on cable length
The Idle mode Link Down power saving of the GSD-805 complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. With the Idle mode Link Down power savings technology, the GSD-805 will automatically adjusts power usage of the ports that are shutdown or not connected to network devices. The Intelligent Scales Power, is an intelligent algorithm that actively determines the appropriate power level based on cable length. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.

Plug & Play
All RJ-45 copper interfaces in the GSD-805 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 cables. It supports standard Auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
