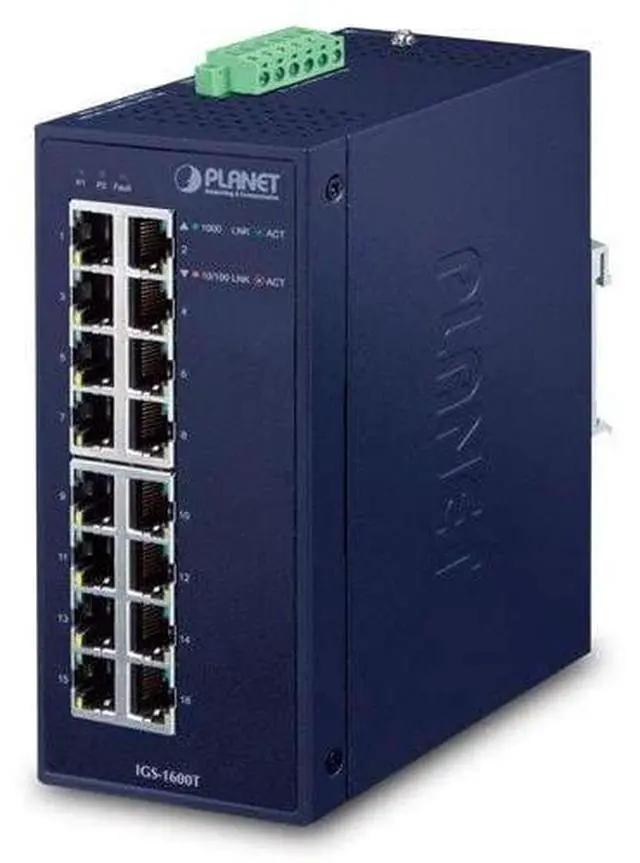

Industrial 16-Port 10/100/1000T Network Gigabit Ethernet Switch
- Built to last: Being able to operate under a wide temperature range from -40 to 75 degrees C, the IGS-1600T can be placed in almost any difficult environment.
- Robust protecton: The IGS-1600T provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
- Energy saving: The managed switch is integrated with advanced green networking technologies and IEEE 802.3az protocol based power savings, is able to provide power savings of up to 50% but maintain high performance efficiently.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
With its shock-proof, vibration-proof, and robust design the IGS-1600T is perfect for heavy-duty industrial applications.
Adopting advanced green networking technology, the IGS-1600T provides link-on and link-down power saving methods offering high performance while conserving energy.
The IGS-1600T provides a high level of immunity against electromagnetic interference and heavy electrical surges. Being able to operate within temperatures ranging from -40 to 75 degrees C, it can be placed in almost any extreme environment.
The IGS-1600T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
Physical Port
16-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
Layer 2 Features
Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
Supports auto-negotiation and 10/100/1000Mbps half/full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p CoS
Supports 8K MAC address
Automatic address learning and address aging
Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs
12 to 48V DC, redundant power with reverse polarity protection
24V AC power input
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof
Adopting advanced green networking technology, the IGS-1600T provides link-on and link-down power saving methods offering high performance while conserving energy.
The IGS-1600T provides a high level of immunity against electromagnetic interference and heavy electrical surges. Being able to operate within temperatures ranging from -40 to 75 degrees C, it can be placed in almost any extreme environment.
The IGS-1600T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
Physical Port
16-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
Layer 2 Features
Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
Supports auto-negotiation and 10/100/1000Mbps half/full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p CoS
Supports 8K MAC address
Automatic address learning and address aging
Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs
12 to 48V DC, redundant power with reverse polarity protection
24V AC power input
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof
