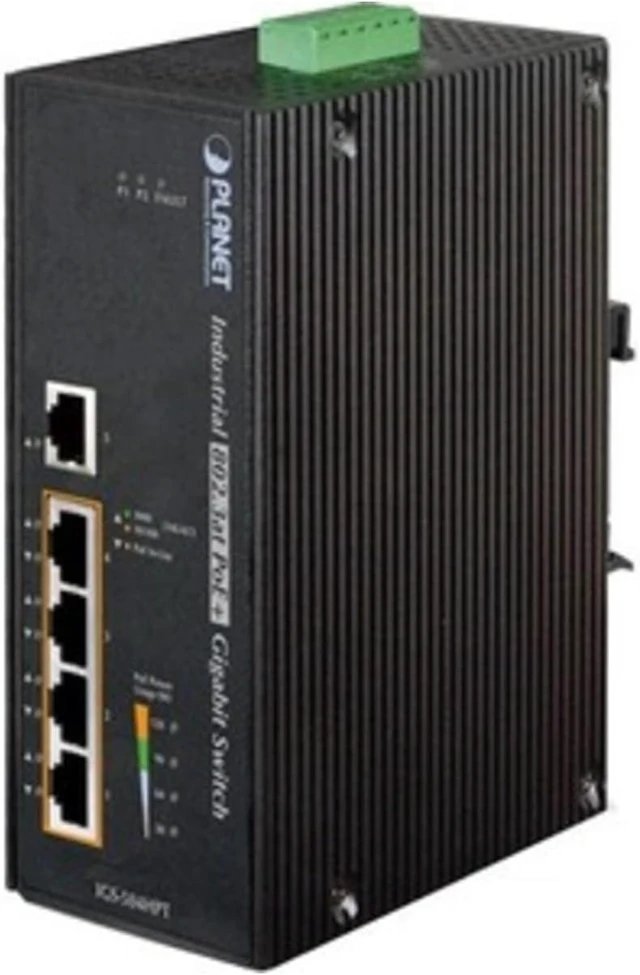

Planet IGS-504HPT Industrial 5-Port Gigabit Switch w/ 4-Port 802.3at PoE+

PLANET IGS-504HPT is an Industrial Gigabit 802.3at PoE+ Switch providing Power over Ethernet capability and non-blocking wire-speed Gigabit performance in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

High Power PoE for Security and Public Service Applications
To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-504HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30 watts of power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 120-watt PoE budget on the whole system, the IGS-504HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.

Intelligent LED Indicator for Real-time PoE Usage
The IGS-504HPT helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called PoE Power Usage, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of power usage.
