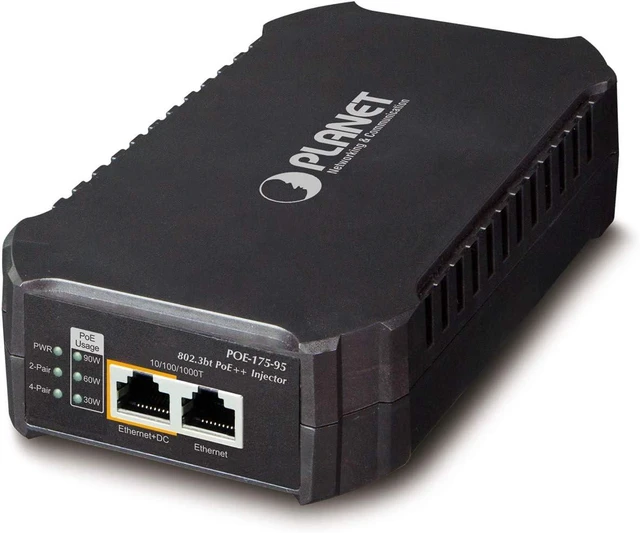

Planet POE-175-95 Single-Port 10/100/1000Mbps 802.3bt PoE++ Injector (95 Watts, Internal PWR)

PLANET's POE-175-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. The POE-175-95 delivers Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector. When connected to the POE-172S, ultra Power over Ethernet splitter, it will separate digital data and power into three optional outputs (12V/19V/24V DC) with maximum distance of up to 100 meters.
Instead of delivering power over 2-pair twisted UTP, be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.
The POE-175-95 PoE injector helps users monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. PoE Power Usage displayed on the front panel of the POE-175-95 has three LED indicators of different power usages. Via the power usage LED, the POE-175-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.
The PoE injectors 'Plug and Play' functionality is easy to install and comes with simple troubleshooting, making it easy for business and home users to own it. The POE-175-95 comes in compact housing, and has a built-in internal power supply. The side panel of the POE-175-95 features one 100-240V AC input socket, real-time LEDs (Power LED, PoE Usage LED and 2-/4-pair LED) and two RJ45 ports (Ethernet port and Ethernet+DC port). Simply plug in the Ethernet cables and AC power cord, and the POE-175-95 is ready to provide high-speed network communication and 802.3bt PoE++ injector functions simultaneously with no need of software configuration.
