Planet 1-P 10/100/1000T 802.3at PoE+ - Network Media Converters

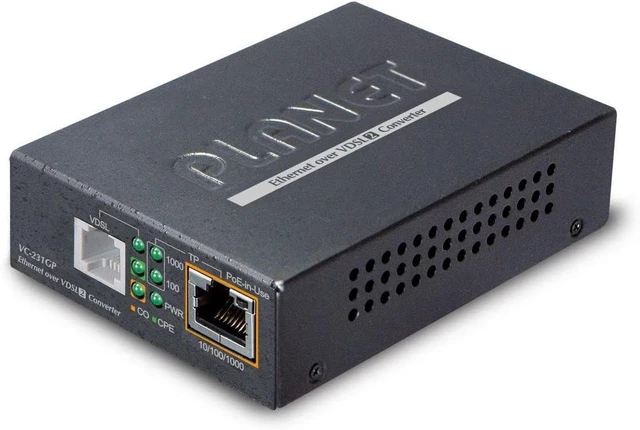

The PLANET VC-231GP is a Gigabit Ethernet over VDSL2 converter coupled to a PoE+ injector. It is based on two network technologies: Ethernet and VDSL2 which offers very fast speeds on the 2 wires of an existing copper telephone line without the need to rewire your installation.Up to 150/150Mbps on 656.2 ft and up to 2 2/10Mbps over 1.5km for long distances. - Profiles VDSL2 17a/30a and G.Vertoring, G.INP and ADSL2/2+ G.dmt.bis/bisplus- Selection mode CO/CPE [master/slave] by DIP- Ethernet standards: 802.3, 802.3u, 802.3ab, 802.3x- 1 x RJ connector -11 out VDSL port - Simultaneous voice and data communications over existing copper telephone line - 1 x RJ45 port at 10/100/1000Mbps with automatic negotiation function and Auto MDI/MDI-X- packet management up to 1536 bytes, transparent for the IEEE802.1Q VLAN Tag - Emitts independent tor/receiver For bridge modem applications- Plug & Play system, quick and easy installation- Selecting profile and target SNR ratio- LED indicator lights for network diagnostics- Compact dimensions - due to its external 52V power supply it is not compatible with chassis PLANET
