Switch 16 Port TL-SL1218P GIGA POE+

"SWITCH 16P 10/100MBPS POE+ E 2P GIGABIT TL-SL1218P SMB IMP

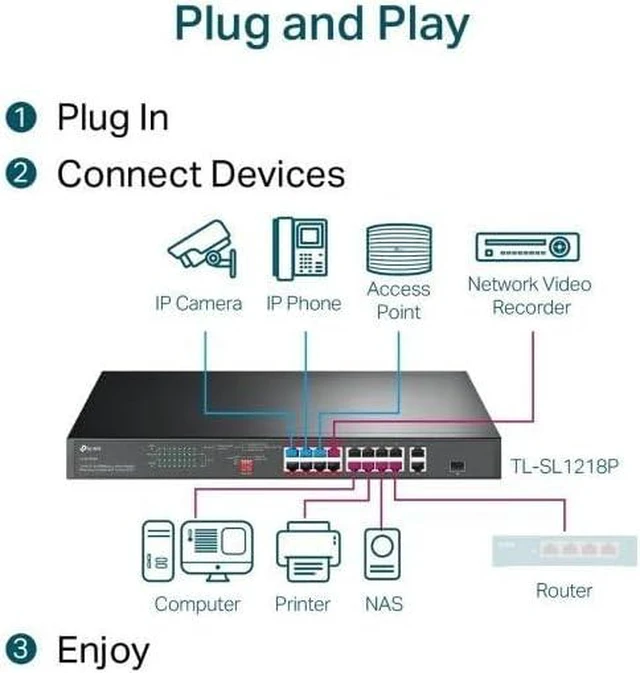

16-Port 10/100Mbps Professional Switch + 2-Port Rackmount Gigabit with 16-PoE+ Ports: Plug and Play with PoE Transmission for Surveillance up to 250 Meters.

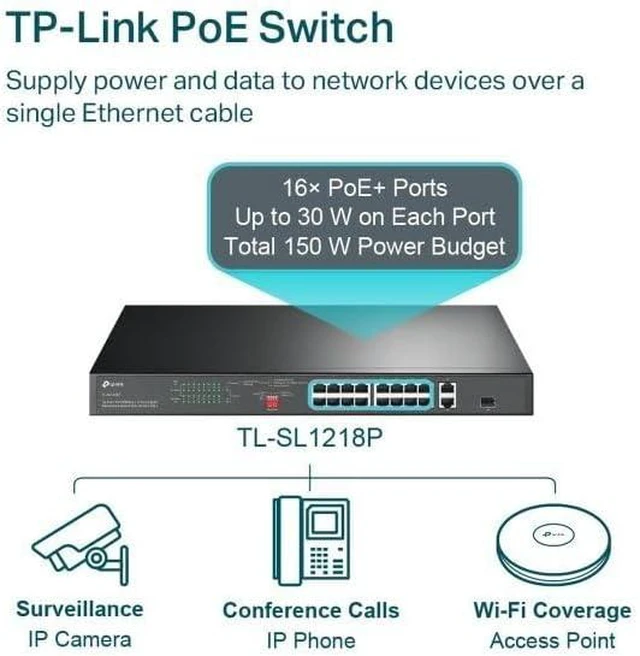

Dedicated 16-Port PoE+ Switch (150W Capacity) for Multiple Applications: 802.3af/at PoE+ standard compliant supports up to 30W on each PoE port. 150W Total PoE power capacity* for the 16× PoE+ ports offers a wide range of applications such as surveillance for offices, dorms, and small businesses. The product is fully compatible with IP cameras, access points, IP phones.

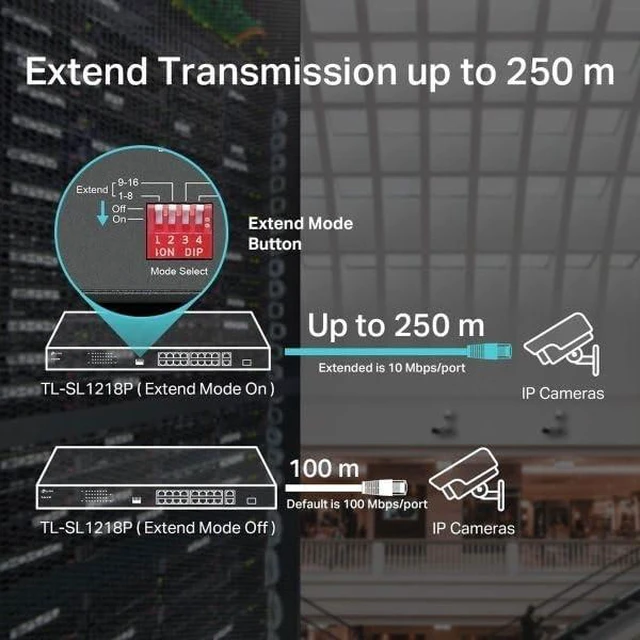

Ideal for IP Surveillance: Transmission Up to 250m
With extended mode, the PoE transmission distance reaches up to 250m**, perfect for implementing IP cameras over large areas.

**Ports speed in extended mode will be reduced to 10Mbps. Actual transmission distance may vary due to power consumption of PoE powered devices or the quality and type of cable.

HARDWARE FEATURES:

Interface: 16× 10/100Mbps PoE+ RJ45 Ports
2× 10/100/1000Mbps RJ45 Ports
1× Combo Gigabit SFP Slot
Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m)
EIA/TIA-568 100O STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Max 100m)
EIA/TIA-568 100O STP (Maximum 100m)
1000BASE-T: UTP Category 5, 5e, 6 or Top Cable (Max 100m)
EIA/TIA-568 100O STP (Maximum 100m)
1000BASE-X MMF, SMF
Number of Fans:2 Fans
Physical Safety Lock: Yes
Power Supply: 100-240V AC, 50/60Hz
PoE+ Ports (RJ45): Standard: Compatible with 802.3at/802.3af
PoE Ports: Ports 1*---16
PoE power budget: 150W
Maximum power consumption: 12.71W (220/50Hz. no PD connected)
172.8W (220/50Hz. with 150W connected PD
Maximum heat dissipation: 43.34 BTU/h (without PD connected)
589.25 BTU/h (with 150 W Connected PD)
PERFORMANCE
Switch Capacity: 7.2Gbps
Package Escalation Rate: 5.36 Mpps
MAC Address Chart: 8K
Jumbo Frame: 10 KB

SOFTWARE FEATURES:

Advanced Features: Works with IEEE 802.3at/af compliant PDs
Extension mode (up to 250 meters of PoE power and data transmission)

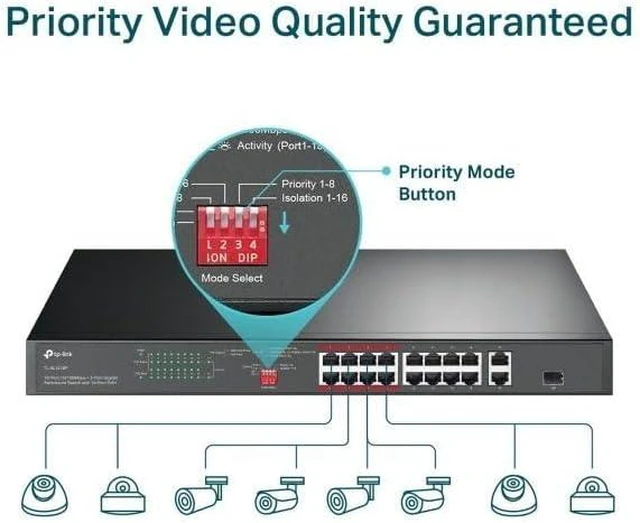

Priority Mode
Insulation Mode
MAC Address Self-Learning & Self-Aging
IEEE 802.3x Flow Control
Transmission Method: Store-And-Forward

OTHER:

Certification: CE, FCC, RoHS
Package Content: TL-SL1218P
Power Cord
Installation Guide
Two Mounting Clamps & Accessories
Environment - Operating Temperature: 32-122°F (32-122°F)
Storage temperature: -40-158°F (-40*-158°F)
Operating Humidity: 10% to 90% RR No Condensation
Storage Humidity: 5% to 90% RR No Condensation"
