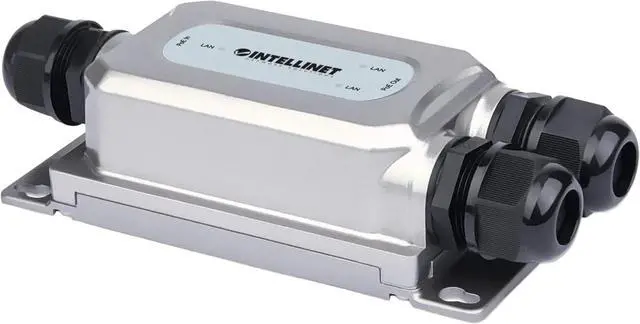

Intellinet 2-Port Gigabit PoE++ Extender Outdoor, 60W Power Budget, 30W Out Per Port, IP67 & IK10, Ultra POE Passthrough Switch-3 Yr Mfg Warranty

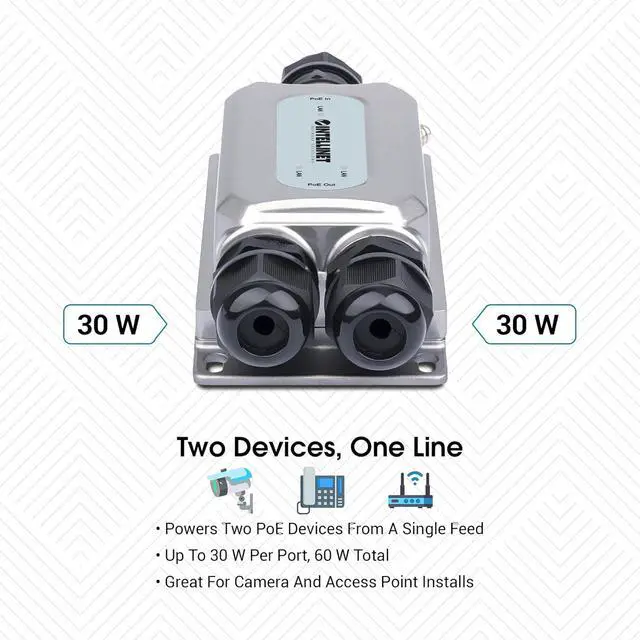

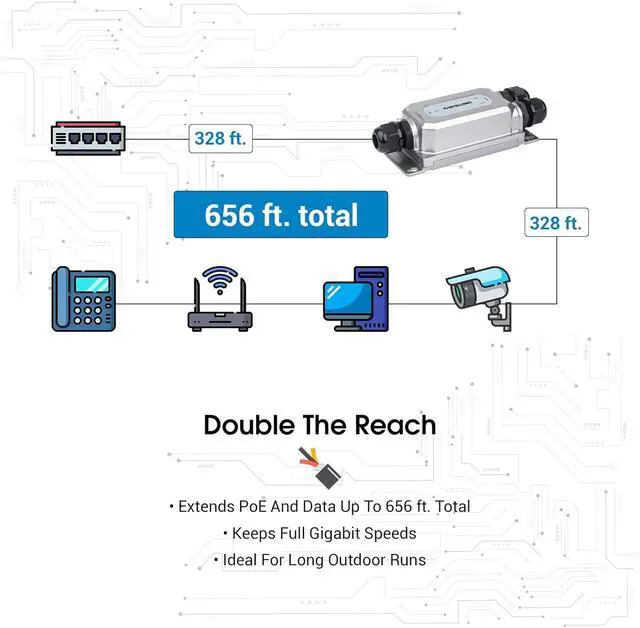

- EXTEND POWER OVER ETHERNET Doubles the maximum connection distance between PoE input source and device from 100 m (328 ft) to 200 m (656 ft) Delivers up to 60 W to two connected PoE devices with 30 W power per output port

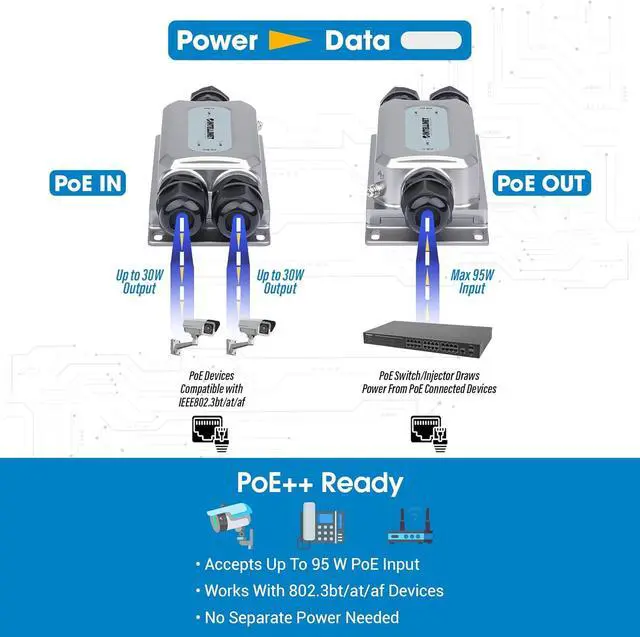

- VERSATILE Requires no additional power supply Draws power directly from existing Ultra PoE, PoE, or PoE+ injector or switch Works with network cameras, wireless access points, VolP phones and much more Supports device connections at 10 / 100 / 1000 Mbps Functional as a PoE-powered 3-port Gigabit switch with PoE passthrouth 6 Gbps Backplane speed
- PROTECTION Short-circuit, overload and high-voltage protection Grounding point to protect equipment from external electrical surges. Also IEEE 802.3bt 802.3at 802.3af Compliant

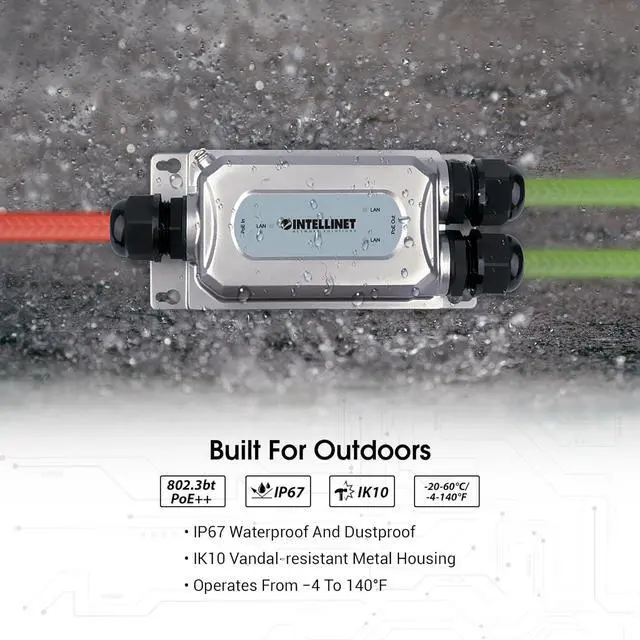

- BUILT TO LAST Harsh weather Industrial IK10 Vandalproof Metal Housing - IP67 Waterproof 4 mounting points - Comes with a three-year mfg warranty
- READY TO INSTALL Earthing kit 4 screws and anchors Three IP67-rated cable g
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Intellinet Model Number561648StandardsIEEE 802.3 af/at/bt PoE; 10Base-T, 100Base-TX, 1000Base-TPorts1× Gigabit PoE In; 2× Gigabit PoE OutMAC Table2, 048 entries; 6 Gbps backplanePower InputPoE++ up to 95 W (4457 V DC) Power OutputUp to 30 W per port, 60 W totalMax Range656 ft total link lengthHousingIK10-rated metal; IP67 waterproof/dustproofData ProtectionShort-circuit, overload, high-voltage and surge protection (6 kV) Operating Temp4 °F to 140 °F;
Storage: 40 °F to 176 °FHumidity1090 % RH non-condensing (operating); 590 % (storage) Dimensions 5.9 × 2.87 × 1.73 in. Weight 0.78 lbsMountingWall holes; earthing kit includedPackage IncludesExtender, earthing kit, three IP67 cable glands, instruction Specs &
Storage: 40 °F to 176 °FHumidity1090 % RH non-condensing (operating); 590 % (storage) Dimensions 5.9 × 2.87 × 1.73 in. Weight 0.78 lbsMountingWall holes; earthing kit includedPackage IncludesExtender, earthing kit, three IP67 cable glands, instruction Specs &
