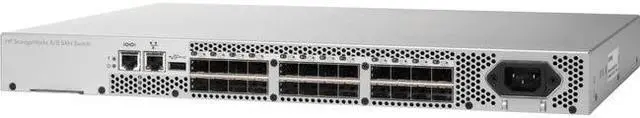

HPE AM866C 8/8 Base (0) E-port Enabled SAN Switch ( AM866C )

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: AM866CManufacturer
Website Address:
http: //www. hpe.
comBrand Name: HPE
Product Name: 8/8 Base (0) E-port Enabled SAN Switch ( AM866C )
Marketing Information: HPE 8/8 Base SAN Switch and 8/8 SAN Switch Family The 8/8 Base SAN Switch and 8/8 SAN Switch are targeted for small to medium sized enterprises and are ideal for entry-level SANs, and as an edge switch for core-to-edge SAN environments. The 8/8 Base SAN Switch and 8/8 SAN Switch provide SAN connectivity that simplifies IT management infrastructures, improves system performance, maximizes the value of virtual server deployments, and reduces overall storage costs. The 8/8 SAN Switch integrates innovative hardware and software features that make it easy to deploy, manage, and integrate into a wide range of IT environments. The 8 Gbit/sec Fibre Channel 8/8 Base SAN Switch provides a simple, affordable, single-switch solution for a new, small SAN installation and connects to storage and servers only. An optional Full Fabric SAN scaling license provides connectivity to other switches. The 8/8 SAN Switch has 8 active ports and can be connected to multiple switches and scale to full fabric limits as defined in the SAN Design Guide. Both new 8 port switches provide growth options with Ports On Demand, the ability to activate additional ports in 8 port increments to a maximum of 24 ports.

This provides the flexibility to start small and grow storage networks in a non-disruptive manner. In addition, organizations can choose to initially deploy 4 Gbit/sec SFPs and upgrade to 8 Gbit/sec SFP+ at a later date when necessary. The 8/8 SAN Switch significantly increases performance and functionality for SANs at an entry-level price. The 8/8 SAN Switch provides auto-sensing 1, 2, 4, and 8 Gbit/sec full duplex performance to enable up to 128 Gbit/sec of uncongested throughput. Auto-sensing and speed-matching of data traffic provides interoperability with previous 1, 2, and 4 Gbit/sec devices. To provide more targeted performance, enhanced Inter-Switch Link (ISL) Trunking combines up to eight ISLs between a pair of switches into a single, logical high-speed trunk capable of up to 64 Gbit/sec of throughput. The evolutionary design provides these capabilities while consuming less than 2.5 watts of power per port for exceptional power and cooling efficiency.
Product Type: Fibre Channel SwitchInterfaces/PortsNumber of Fibre
Channel Ports: 8Number of
Network (RJ-45) Ports: 1Media
& PerformanceData Transfer Rate: 8 Gbit/sI/O ExpansionsNumber of Total
Expansion Slots: 8Expansion
Slot Type: SFP+Management
& ProtocolsManageable: YesPhysical
CharacteristicsCompatible Rack Unit: 1UForm
Factor:
Rack-mountableHeight: 1.7"W
idth: 16.9"D
epth: 12.1"W
eight (Approximate): 9.30 lbMiscellaneousEnvironmentally
Friendly: YesEnvironmental
Certification: RoHS
