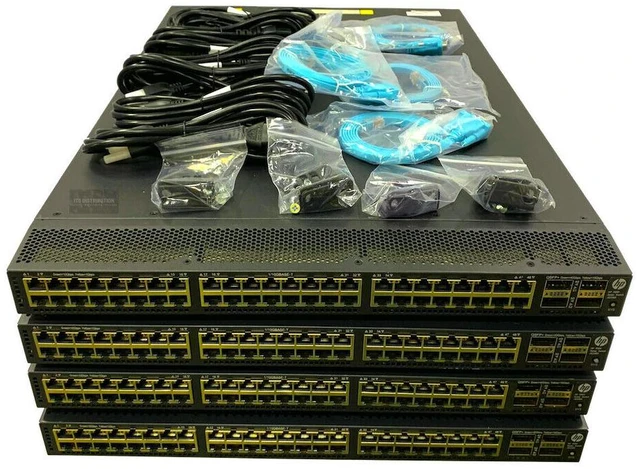

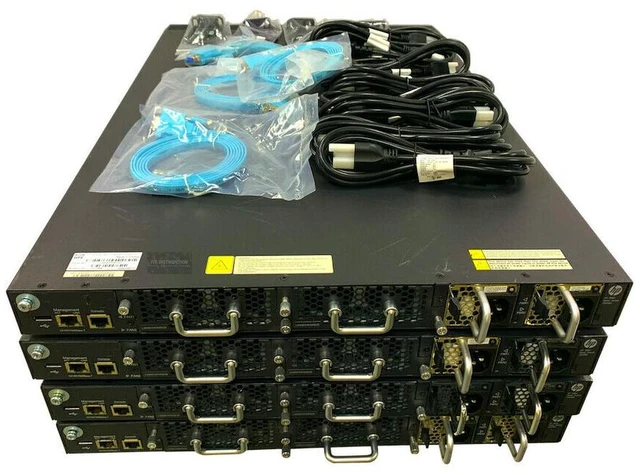

HPE 5900AF-48XGT-4QSFP B-F Switch Bundle (JG851A)

Packaged Quantity

4 (specifications are for single item)

Device Type

Switch - 48 ports - L3 - managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

48 x 1000/10000 + 4 x 40 Gigabit QSFP+

Performance

Throughput: 952 Mpps ¦ Routing/switching capacity: 1280 Gbps

Capacity

IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000 ¦ Virtual interfaces (VLANs): 4096

MAC Address Table Size

128K entries

Jumbo Frame Support

10000 bytes

Routing Protocol

OSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)

Remote Management Protocol

SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Encryption Algorithm

MD5

Authentication Method

Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)

Features

Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Data Center Bridging Exchange (DCBX) support, event log, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, front to back airflow, Device Link Detection Protocol (DLDP) support, IPv4 support, Deficit Weighted Round Robin (DWRR), DHCP relay, Port Security, Data Center Bridging (DCB), fan tray, role based access control, dual firmware images, Strict Priority Queuing (SPQ), loop prevention, NTP time synchronization, redundant hot swappable fans, 9MB packet buffer, Edge Virtual Bridging (EVB), FCoE stacking, Intelligent Resilient Framework Technology (IRF), Type of Service (ToS), cut-through, DiffServ Code Point (DSCP) support

Compliant Standards

GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANATEL, FDA, EN 60825-1, CAN/CSA C22.2 No. 60950-1, Directive 2004/108/EC, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, EN55024:1998 + A1 + A2, AS/NZS CISPR 22, EN 60950-1/A11:2009, EN 300 386 V1.3.3

RAM

2 GB SDRAM

Flash Memory

512 MB

Interfaces

48 x 10GBase-T RJ-45 ¦ 4 x 40Gbit LAN QSFP+ ¦ 1 x console RJ-45 management ¦ 1 x USB 2.0 Type A ¦ 1 x RJ-45 management
