MikroTik 9-Port Desktop Switch, 1 Gigabit Ethernet Port, 8 SFP+ 10Gbps Ports (CRS309-1G-8S+IN)

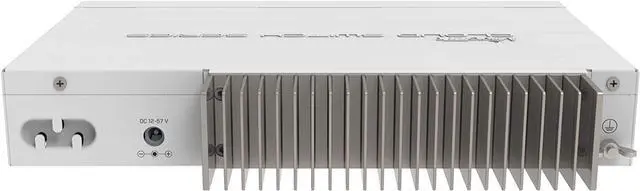

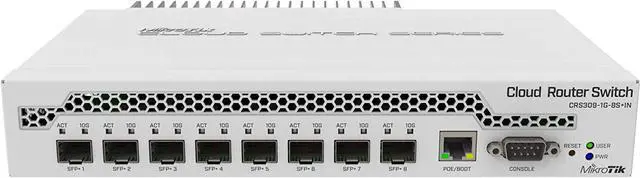

MikroTik CRS309, CRS309-1G-8S+, is a very compact and powerful Cloud Router Switch with 8 SFP+ slots that supports up to a 10Gbit module in each, resulting in a total switching capacity of 162Gbps and total non-blocking throughput of 81Gbps. The MikroTik CRS309 has a dual-core 800MHz CPU, 512MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS). The compact and sleek metallic enclosure for the MikroTik CRS309 also acts as a heat sink, making this Cloud Router Switch passively cooled - no fan noise and no dust accumulation inside.

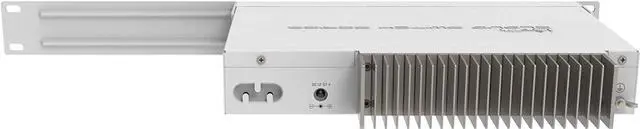

Special rack mount ears for installing the MikroTik Cloud Router Switch into the standard rack are provided.
Product

Specifications

Product code: CRS309-1G-8S+IN
CPU: Dual-core 98DX8208 800
MHz RAM: 512MB
Storage: Flash 16MB
Switch chip model: 98DX8208
Dimensions: 141mm x 115mm x 28mm
Operating temperature: -40°F to 158°F (-40°C to +70°C)
Operating system: SwOS / RouterOS (Dual boot) License level 5 Interfaces 10/100/1000 Ethernet ports 1 10G SFP+ ports 8 Serial port RS232 Powering PoE in Yes, Passive POE and 802.3 af/at compliant Supported input voltage 12V - 57V (DC jack), 18V - 57V (PoE in) Number of DC jacks 1 Max power consumption 33W / 19W (without attachments) Product Includes (1) MikroTik CRS309 Cloud Router Switch (1) Screw Kit (1) Set of Rack Ears Datasheet
