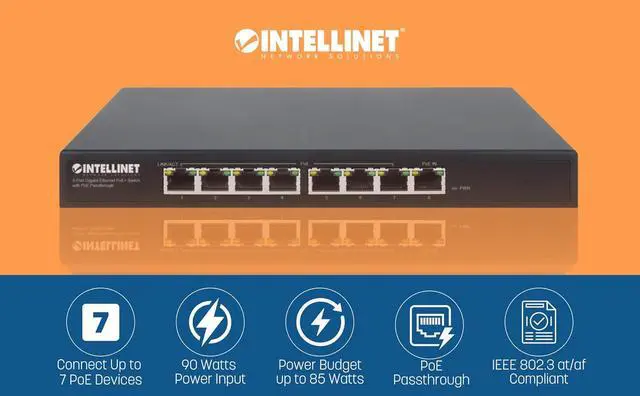

Intellinet PoE-Powered 8 Port Gigabit Switch with PoE Passthrough One IEEE 802.3bt PoE++ PD Port, Eight PoE+ Ports - 85W Power Budget - Fanless Silent - 3 Yr Mfg Warranty - 561679

The Intellinet 8-Port Gigabit PoE+ Passthrough Switch gives you a powerful, plug-and-play way to expand your PoE networkno power adapter required. Its dedicated PD port accepts up to 90 W from modern Ultra PoE++ (4PPoE) sources, allowing you to pass both power and data through existing Ethernet runs with zero hassle. With eight Gigabit ports, you can connect and power up to seven PoE devicesincluding access points, IP cameras, and VoIP phoneswhile maintaining fast, reliable 1,000 Mbps network speeds. Its the simplest and most efficient way to add more devices and extend your network exactly where you need it.
With advanced PoE passthrough technology, this unit extends your PoE connection from 100 m to 200 m (656 ft.), giving you twice the reach without adding complex wiring. Using it as a PoE Passthrough Switch eliminates the cost and hassle of installing new electrical lines, reducing clutter from power cables in ceilings and walls. It delivers up to 85 W to compatible devices, making long-distance deployments simpler, cleaner, and far more efficient.
Intellinet Model Number 561679 PoE++ Input Support Accepts up to 90 W power input via IEEE 802.3bt (4PPoE) PD port. PoE Passthrough Budget Provides up to 85 W total PoE output power when powered via 802.3bt. Seven PSE Ports Powers up to seven PoE/PoE+ devices simultaneously. Extended PoE Range Doubles PoE transmission distance from 100 m to 200 m. Gigabit Auto-Sensing All eight ports support 10/100/1000 Mbps auto-negotiation. Per-Port Power Output Delivers up to 30 W PoE power per port. Switch Fabric Capacity 16 Gbps switching capacity/backplane bandwidth. MAC Address Table Supports 2,000 MAC entries with auto-learning/aging. Energy-Saving Mode Green Ethernet adjusts power based on cable length and disables idle ports. PoE Protection Suite Built-in short circuit, overload, and high-voltage protection. Flow Control Support IEEE 802.3x full-duplex flow control and half-duplex backpressure. Fanless Cooling Fanless metal housing for silent thermal operation. Compact Metal Enclosure 104 × 240 × 29 mm metal chassis; 660 g weight. Operating Environment Operates from 040°C and 1090% non-condensing humidity. Standards Compliance Meets IEEE 802.3i/u/ab/af/at/bt/az/3x; FCC, CE, RoHS, UKCA, NDAA. Customer Reviews Price no datano datano datano data Intellinet Model Number 561679 562034 561808 509220 PoE Passthrough Usable as a PoE Extneder Indoor vs Outdoor Use Indoor Indoor Indoor Outdoor Ports 7 PoE Ports, 1 PoE Pd Port (with 90W Power Input), 4 PoE Ports, 1 PoE Pd Port (with 95W Power Input), 2 RJ45 Gigabit Uplink Ports 4 PoE Ports, 1 PoE Pd Port (with 95W Power Input) 4 PoE Ports, 1 PoE Pd Port (with 90W Power Input) PoE Power Budget 85W 60W 65W 85W Max Power Output per Port up to 30W per Port up to 30W per Port up to 30W per Port up to 30W per Port PoE Compatibility IEEE 802.3 i/u/ab/af/at/bt/az/x IEEE 802.1 p/q, IEEE 802.3z, IEEE 802.3 ab/af/at/u/x IEEE 802.3 ab/af/at/bt/u/x IEEE 802.3 ab/af/bt/u/x Extender Distance Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Effortless PoE Network Growth 8-Port Gigabit PoE+ Passthrough Switch Extend your PoE reach with built-in passthrough Technical Specifications
