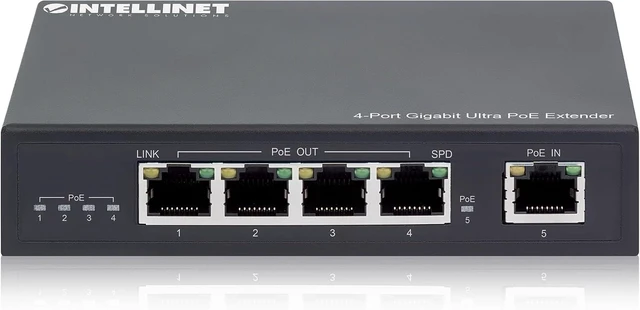

Intellinet 4-Port Gigabit PoE++ Extender, 90W, 328 Ft Range, Metal
- IEEE 802.3bt/at/af pass-through switch adds 656 total reach, powers cameras, APs and VoIP phones via RJ45

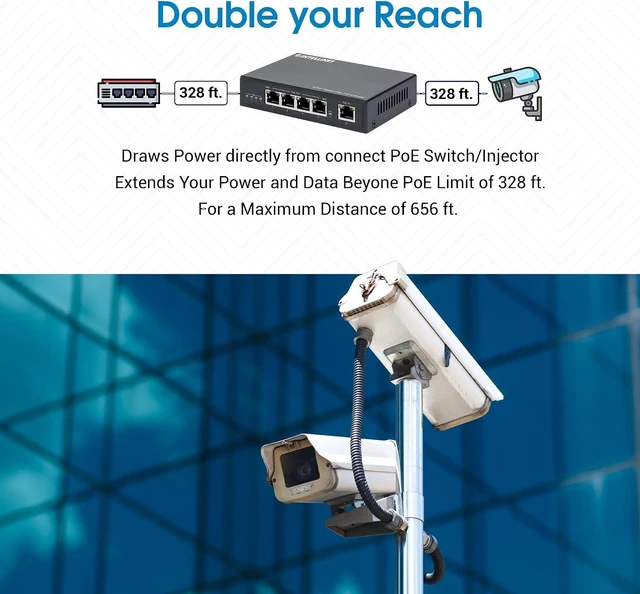

- Extends one PoE connection by another 328 ft. and doubles the total reach from 328 ft. to 656 ft. between the PoE source and connected devices, helping place cameras, access points, or VoIP phones farther from the switch.

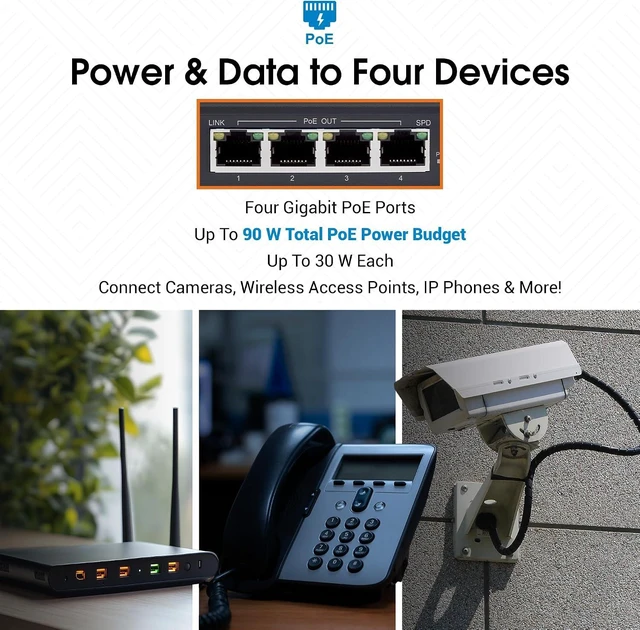

- Four PoE output ports power and connect up to four IEEE 802.3at/af devices from a single PoE injector or PoE switch port. Delivers a total 90 W PoE budget with up to 30 W per port for multi-device network deployments.

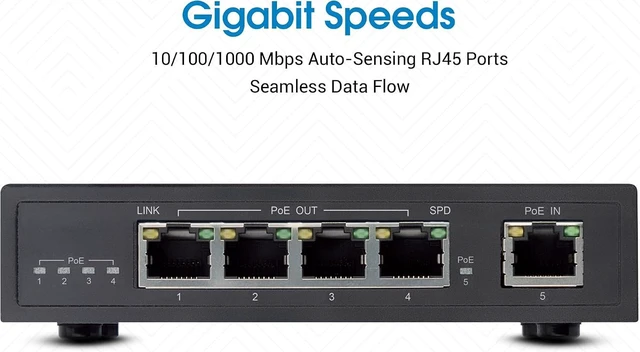

- Works as a PoE-powered 5-port Gigabit switch with PoE passthrough, using one 10/100/1000 Mbps RJ45 input and four 10/100/1000 Mbps PoE output ports. No separate power adapter is needed because it draws power from the PoE input.
- Supports IEEE 802.3bt, 802.3at, and 802.3af standards and forwards data at 10/100/1000 Mbps. Built for Cat5e cabling with RJ45 connections, it also offers a 10 Gbps switch fabric, store-and-forward switching, and jumbo fr
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

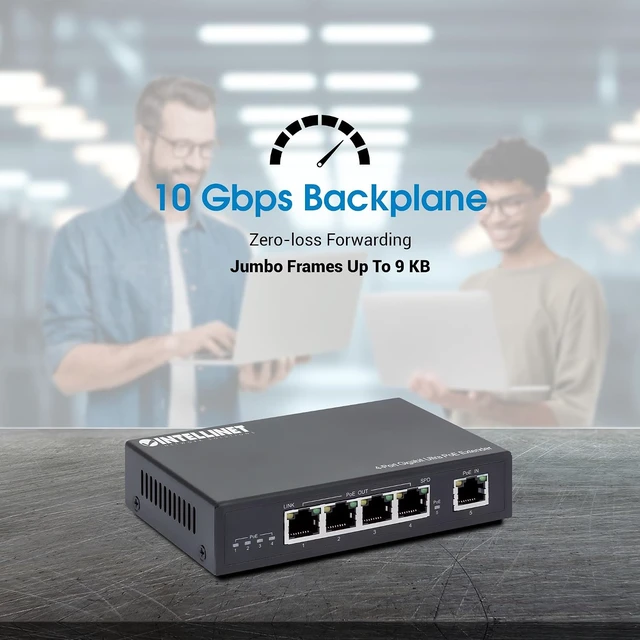

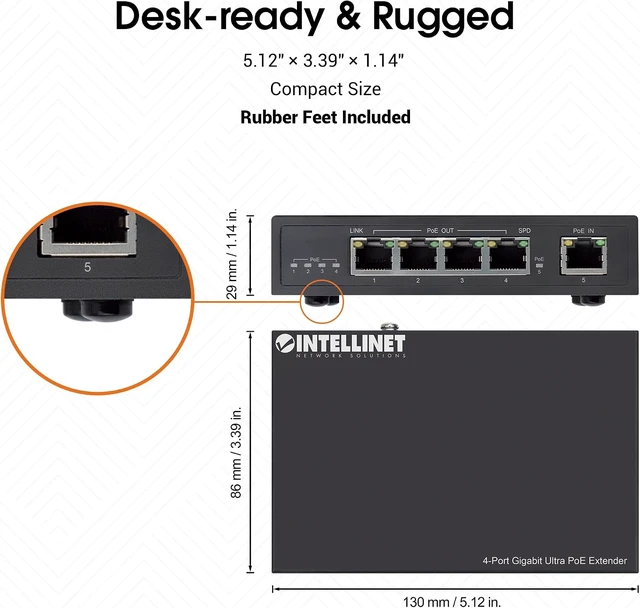

Intellinet Model Number 561617 Maximum Link Distance 656 ft (total PoE run) PoE Output Ports 4 × RJ45 10/100/1000 Mbps Total PoE Power Budget 90 W Per-Port Power Output Up to 30 W each PoE Standards IEEE 802.3 af (PoE Type 1) IEEE 802.3 at (PoE + Type 2)IEEE 802.3 bt (PoE ++ Types 3 & 4) Backplane Speed 10 Gbps Jumbo Frame Support Up to 9 KB MAC Address Table 2, 048 entries Buffer Memory 256 kB Auto-MDIX On every RJ45 port Dimensions (W × D × H) 5.12 × 3.39 × 1.14 Weight 0.74 lbs Operating Temperature 32 °F to 104 °F Storage Temperature 14 °F to 158 °F Operating Humidity 20 %85 % RH, non-condensing
