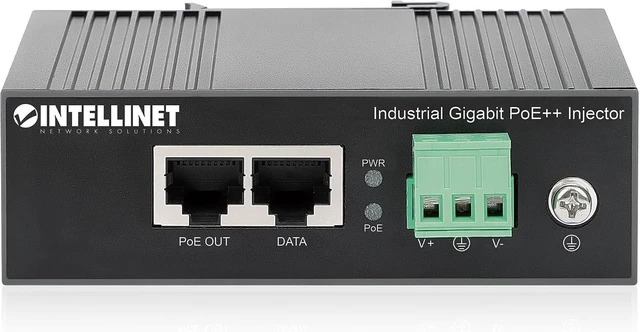

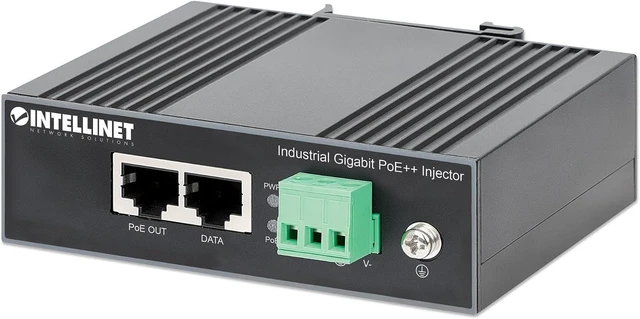

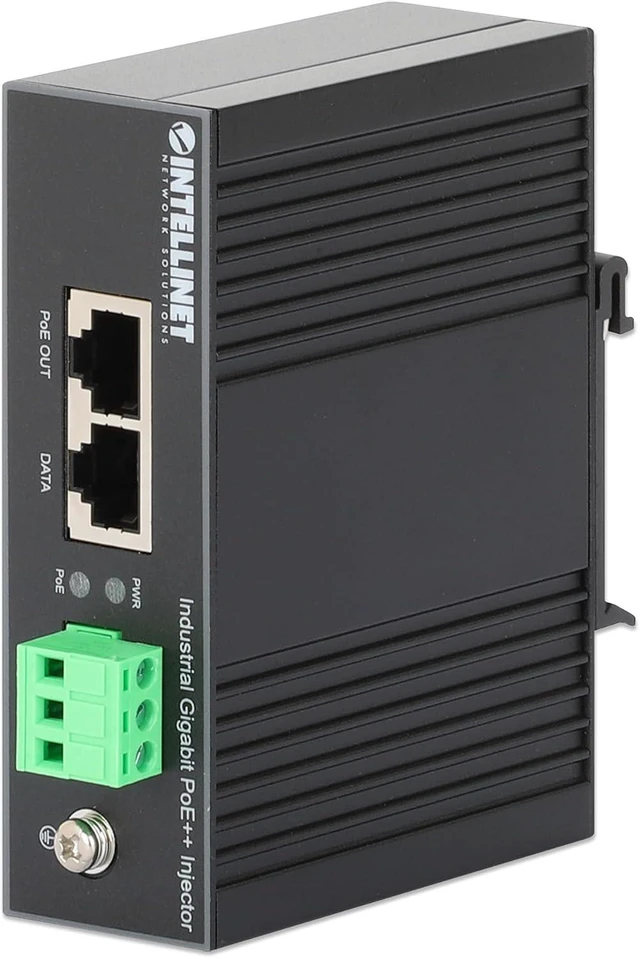

Intellinet Industrial Gigabit PoE++ Injector, 90W, 802.3bt, DIN-Rail Mount

Be the first to review this product...

IP30 metal enclosure, 10/100/1000 Mbps, 4556 V DC terminal block, LEDs, -40 to 167°F | 508919
Add PoE++ power and Gigabit data from a non-PoE switch port to one IEEE 802.3bt, 802.3at or 802.3af device over Cat5e, Cat6 or Cat6a cabling for network runs up to 328 feet in industrial installations.

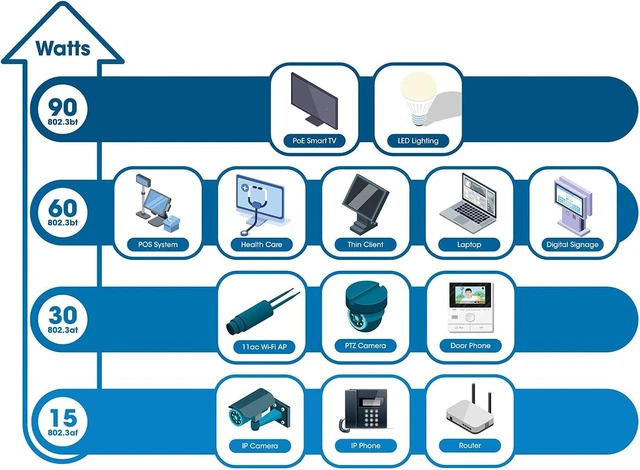

Deliver up to 90 watts through the RJ45 PoE output for compatible equipment including network cameras, motorized PTZ cameras, wireless access points, VoIP phones, lighting equipment and digital signage.
Support 10/100/1000 Mbps Ethernet with auto-sensing PoE that powers compliant devices while sending data only to non-PoE equipment, allowing both powered and data-only devices on one local network.

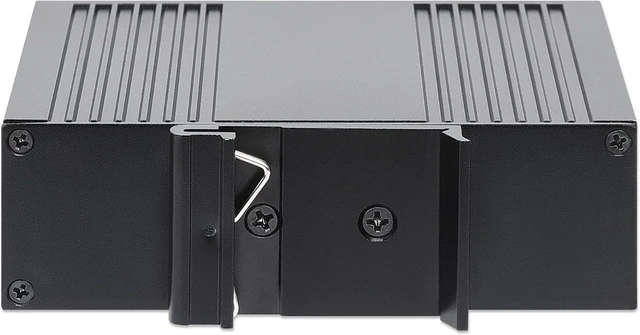

Install the injector in control cabinets, plants, warehouses or equipment areas using the included DIN-rail bracket; the IP30-rated metal housing operates from -40 to 167°F.
Connect a required external 45 to 56 V DC industrial power supply through the 3-pin terminal block using 12 to 24 AWG wiri

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

PoE Standard IEEE 802.3bt / 802.3at / 802.3af Maximum PoE Output 120 W Network Speed 10/100/1000 Mbps, 2.5/5/10 Gbps Network Ports 1× RJ45 Data In, 1× RJ45 PoE++ Data/Power Out MTBF 1-million-hours Power Input 48 57 V DC, Terminal Block Operating Temperature -40 to 75°C (-40 to 167°F) Protection 6 kV Surge; up to 8 kV ESD, short-circuit/overload/high-voltage protection, shock/vibration/freefall Housing / Mounting IP50 Metal; DIN-Rail or Wall Mount Dimensions 120 × 98 × 30 mm (4.72 × 3.86 × 1.18 in.) PoE Standard IEEE 802.3bt / 802.3at / 802.3af Maximum PoE Output 95 W Network Speed 10/100/1000 Mbps Network Ports 1× RJ45 Data In, 1× RJ45 PoE++ Data/Power Out Maximum Distance 100 m (328 ft.) Power Input 48 57 V DC, Terminal Block MTBF 1-million-hours Protection 6 kV Surge; up to 8 kV ESD, short-circuit/overload/high-voltage protection Operating Temperature -40 to 75°C (-40 to 167°F) Housing / Mounting IP50 Metal; DIN-Rail Mount Dimensions 58 × 61 × 26 mm (2.28 × 2.40 × 1.02 in.) PoE Standard IEEE 802.3bt / 802.3at / 802.3af Maximum PoE Output 90 W Network Speed 10/100/1000 Mbps Network Ports 1× RJ45 Data In, 1× RJ45 PoE++ Data/Power Out Power Input 45 56 V DC, 3-Pin Terminal Block Operating Temperature -40 to 75°C (-40 to 167°F) Electrical Protection ESD, Surge, Short-Circuit, Overload & High-Voltage Protection Housing IP30-Rated Metal Mouning DIN-Rail Dimensions 78 × 103 × 32 mm (3.07 × 4.06 × 1.26 in.) Mini PoE++ Injector, 95W
