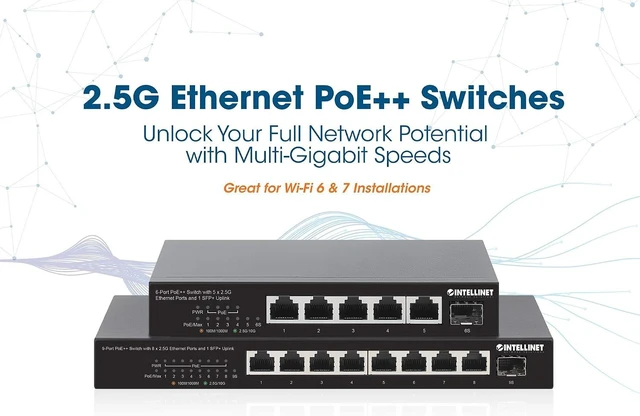

Intellinet 9-Port PoE++ Switch, 8 x 2.5G Ethernet, 10G SFP+ Uplink, 100W
- IEEE 802.3af/at/bt 4PPoE, metal housing, wall-mount, quiet operation for access points and voice phone use | 562140
- PoE++ Power Delivery: Eight RJ45 ports provide power and data to compatible wireless access points, VoIP phones, IP cameras and other devices over existing network cables, with up to 60 watts per port and a 100-watt total PoE budget.
- 2.5G Ethernet Connectivity: Eight 2.5GBASE-T RJ45 ports support 10/100/1000/2500 Mbps connections for network devices, while backward compatibility with 10/100/1000 Mbps equipment helps integrate existing hardware without replacing it.
- 10G SFP+ Uplink: One open SFP+ slot supports a 10G uplink to another switch or network device, providing additional bandwidth for traffic between connected equipment and helping connect the switch to faster network infrastructure.
- PoE++ Device Support: IEEE 802.3bt, 802.3at and 802.3af compliance supports compatible access points, VoIP phones and IP cameras, with automatic detection plus Auto-MDIX and NWay
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Elevate your network with our 9-Port PoE++ Switch, featuring 8 ultra-fast 2.5G Ethernet ports and a 10G SFP+ uplink. Perfect for powering devices like VoIP phones and IP cameras, this switch delivers up to 60 watts per port with a total PoE budget of 100 watts. Enjoy seamless connectivity for Wi-Fi 6 and 7 access points, eliminating bottlenecks with high-speed data transfer. With a compact design, rugged metal housing, and fanless operation for silent performance, it's ideal for any workspace. Upgrade your setup today for reliable, efficient networking!
This switch features eight 2.5G Ethernet ports, allowing for faster data transfer rates up to 2.5 Gbps. It's ideal for high-demand applications like gaming, streaming, or large file transfers.
The SFP+ slot enables a 10G uplink connection, providing flexibility for network expansions or connections to higher-speed backbone devices without compromising performance.
With a fanless design, this switch operates silently, making it suitable for home offices or quiet workspaces.
Desktop-size metal case comes equipped with wall-mounting holes easy placement on a wall.
Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.
This Intellinet 2.5G PoE++ switch provides both high-speed data connectivity and robust power delivery, making it ideal for WiFi-6 access points that demand multi-gigabit throughput. With 100 Watts IEEE802.3bt PoE++ support, it ensures reliable operation by delivering sufficient power over a single Ethernet cable, simplifying deployment and reducing infrastructure costs.
Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at,IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x,IEEE 802.3bz, IEEE 802.3ae MAC address table 4k Buffer memory 1 MByte Forwarding rate 44.14 Mpps Backplane speed 60 Gbps Certifications FCC, CE, RoHS, REACH, UKCA PoE Pinout Pin 1: DC (-), Pin 2: DC (-), Pin 3: DC (+), Pin 4: DC (+), Pin 5: DC (+), Pin 6: DC (+), Pin 7: DC (-), Pin 8: DC (-) Power External power adapter, input: 100.0 - 240.0 VAC, 50 - 60 Hz, output: DC, 54.0 V, 1.67 A PoE Power Budget 100 watts Maximum power consumpion 120 watts Metal housing 4.13 x 9.45 x 1.06 in (L x W x H) Weight (Net / Gross) 1.52 lbs. / 3.22 lbs. Operating temperature 32 - 104°F Operating humidity 10 - 90% RH, non-condensing Package contents 9-Port PoE++ Switch with 8 x 2.5G PoE++ Ethernet Ports and 1 SFP+ Uplink, Power adapter, Power cable, Instructions
This switch features eight 2.5G Ethernet ports, allowing for faster data transfer rates up to 2.5 Gbps. It's ideal for high-demand applications like gaming, streaming, or large file transfers.
The SFP+ slot enables a 10G uplink connection, providing flexibility for network expansions or connections to higher-speed backbone devices without compromising performance.
With a fanless design, this switch operates silently, making it suitable for home offices or quiet workspaces.
Desktop-size metal case comes equipped with wall-mounting holes easy placement on a wall.
Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.
This Intellinet 2.5G PoE++ switch provides both high-speed data connectivity and robust power delivery, making it ideal for WiFi-6 access points that demand multi-gigabit throughput. With 100 Watts IEEE802.3bt PoE++ support, it ensures reliable operation by delivering sufficient power over a single Ethernet cable, simplifying deployment and reducing infrastructure costs.
Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at,IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x,IEEE 802.3bz, IEEE 802.3ae MAC address table 4k Buffer memory 1 MByte Forwarding rate 44.14 Mpps Backplane speed 60 Gbps Certifications FCC, CE, RoHS, REACH, UKCA PoE Pinout Pin 1: DC (-), Pin 2: DC (-), Pin 3: DC (+), Pin 4: DC (+), Pin 5: DC (+), Pin 6: DC (+), Pin 7: DC (-), Pin 8: DC (-) Power External power adapter, input: 100.0 - 240.0 VAC, 50 - 60 Hz, output: DC, 54.0 V, 1.67 A PoE Power Budget 100 watts Maximum power consumpion 120 watts Metal housing 4.13 x 9.45 x 1.06 in (L x W x H) Weight (Net / Gross) 1.52 lbs. / 3.22 lbs. Operating temperature 32 - 104°F Operating humidity 10 - 90% RH, non-condensing Package contents 9-Port PoE++ Switch with 8 x 2.5G PoE++ Ethernet Ports and 1 SFP+ Uplink, Power adapter, Power cable, Instructions
