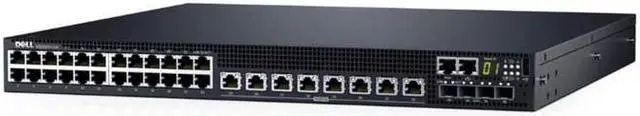

Dell 1N25R Networking N3132PX-ON Managed Rack Mountable Switch

DELL 1N25R Emc Networking N3132px-on Switch 32 Ports Managed Rack-mountable

Key Features:

Device Type: Switch 32 Ports L3 Managed Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 24 X 10/100/1000 (poe) + 8 X 100/1000/ 2.5 g/5g (poe) + 4 X 10 Gigabit Sfp+

> Power Over Ethernet (poe): Poe

Performance: Switching
Fabric Bandwidth: 328 Gbps, Forwarding Performance: 428 Mpps

Capacity: Mac
Addresses: 32000, Aggregated
Links (dynamic): 144, Lag
Groups: 128, Queues
Per Port: 8, Vlans
Supported: 4094, Arp
Entries: 6144, Ndp
Entries: 400, Max
Acl Rules System-wide: 4096, Acl: 100, Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 3072, Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1024, Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021, Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 512, Multicast
Entries (ipv4): 1536, Multicast
Entries (ipv6): 512, Ospf Routes: 8160

Mac Address Table Size: 32000 Entries

Routing Protocol: Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Mldv2, Mld

Remote Management Protocol: Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2

Encryption Algorithm: Aes, Ssl, Tls 1.0

Authentication Method: Radius, Tacacs+, Ldap

Features: Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ansi/tia-1057, Ieee 802.1 ab (lldp), Ieee 802.3 at, Ieee 802.3 az, Ieee 802.3 ax

Ram: 2 Gb

Flash Memory: 512 Mb

Expansion / Connectivity:
Interfaces:

24 X Gigabit Lan - Rj-45 - Poe

8 X 5gbit Lan - Rj-45 - Poe

4 X 10gbit Lan - Sfp+

1 X 1000base-t - Rj-45 - Management

1 X Usb - Type A

Power:

Power Device: Internal Power Supply - Hot-plug

Installed Qty: 1 (installed) / 2 (max)

Power Provided: 1100 Watt

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 30 Days
