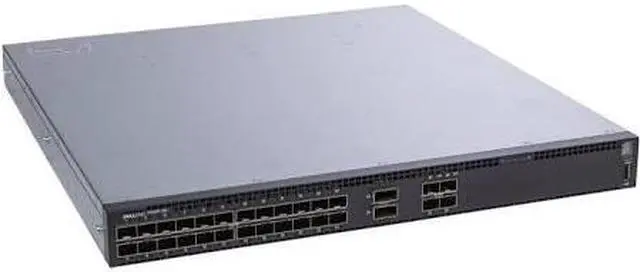

Dell DY4VC S4128F-ON S-SERIES Networking 28 Port Switch

DELL - Emc DY4VC Networking S4128f-on - Switch - 28 Ports - Managed - Rack-mountable

Key Features:


Device Type: Switch - 28 Ports - L3 - Managed

Enclosure Type: Back To Front Airflow Rack-mountable 1u

Subtype: 10 Gigabit Ethernet

Ports: 28 X 10 Gigabit Sfp+ + 2 X 100 Gigabit Qsfp28

Performance: Switching Capacity: 960 Gbps Throughput: 720 Mpps

Capacity: Arp
Entries: 200000
Ipv4 Routes: 200000
Ipv6 Routes: 64000
Ipv6 Hosts: 130000
Multicast Hosts: 8000
Links Per Group: 32
Link Aggregation Groups: 128 Layer 2
Vlans: 4000
Mstp Instances: 32
Acl Entries (ingress): 6000 Acl Entries (egress): 1000

Mac Address Table Size: 272000 Entries

Routing Protocol: Ospf, Bgp-4, Ospfv2, Policy-based Routing (pbr)

Remote Management Protocol: Snmp 1, Snmp 2

Encryption Algorithm: Md5

Authentication Method: Radius, Tacacs

Features: Flow Control, Arp Support, Port Mirroring, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Lacp Support, Lldp Support, Dynamic Vlan Support (gvrp), Priority-based Flow Control (pfc), Internet Control Message Protocol (icmp), Dns Client

Compliant Standards: Ieee 802.3 u, Ieee 802.3 i, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 t, Ieee 802.1 ab (lldp), Ieee 802.3 ba, Ieee 802.1 qbb, Ieee 802.1 qaz, Ieee 802.3 bj

Ram: 4 Gb

Expansion / Connectivity:
Interfaces:

28 X 10gbit Lan Sfp+

2 X 100gbit Lan Qsfp28

1 X Serial (rs-232) Rj-45 Management

1 X 10/100/1000 Base-t Rj-45 Management

Power:

Power Device: External Power Adapter - Hot-plug

Installed Qty: 2

Power Redundancy: Yes

Voltage Required: Ac 120/230 V (50/60 Hz)

Power Consumption Operational: 260 Watt
