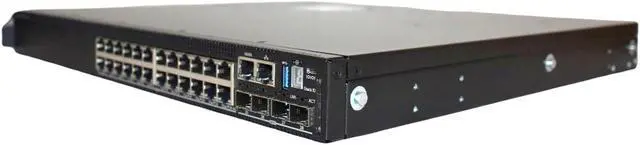

Interfaces:
24 x 10/100/1000 Base-T RJ-45
4 x 10Gbit LAN SFP+
1 x 10/100/1000 Base-T RJ-45 management
2 x 100Gbit LAN QSFP28 stacking
1 x USB Type A
1 x micro-USB 2.0 Type B console
1 x serial (RS-232) RJ-45 console
Performance:
Switching capacity: 528 Gbps
Forwarding rate: 733 Mpps
Flash Memory: 8 GB
RAM: 4 GB

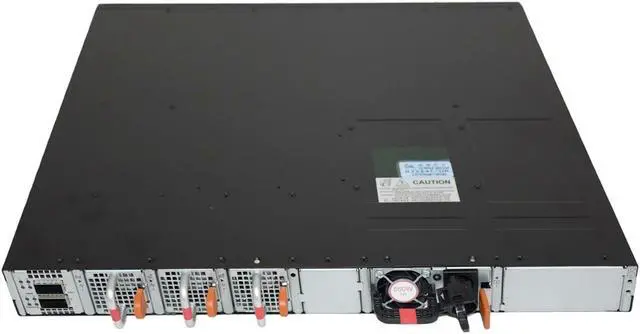

Power:
80 PLUS Certification: 80 PLUS Platinum
Installed Qty: 1
Max Supported Qty: 2
Power Consumption Operational: 201 Watt
Power Device: Internal power supply - hot-plug
Power Provided: 550 Watt
Power Redundancy: Optional
Environmental Parameters:
Humidity Range Operating: 95%
Humidity Range Storage: 95%
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Compliant Standards:
IEEE 802.2, IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3 ab, IEEE 802.1 p, IEEE 802.3 x, IEEE 802.3 ad (LACP), IEEE 802.1 w, IEEE 802.1 x, IEEE 802.3 ae, IEEE 802.3 ac, IEEE 802.1 s, IEEE 802.1 v, IEEE 802.1 ag, IEEE 802.1 ab (LLDP), IEEE 802.3 az, IEEE 802.3 ax
